Extra Long Plastic Butterfly Anchor Extended Reach For Thick Insulation Board And EWIS Hollow Wall

Name: Extra Long Plastic Butterfly Anchor Extended Reach For Thick Insulation Board And EWIS Hollow Wall
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Butterfly Anchor
Price: 0.03 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Butterfly Anchor
MOQ:	1000 Pieces
Price:	USD 0.03 - 0.10 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	5000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Extra Long Butterfly Toggle Anchor

Material:

Nylon PA6 Body + Zinc-Plated Carbon Steel Screw

Anchor Type:

Extended Length Butterfly Toggle Anchor

Diameter:

M6, M8

Length:

80 Mm - 150 Mm

Suitable Substrate:

Thick Insulation Board, EWIS, Composite Panel

Load Capacity:

Medium Duty - Up To 15 Kg

Head Type:

Pan Head With Phillips Drive

Application:

External Wall Insulation, Sandwich Panels

Working Principle:

Extended Screw Reaches Through Thick Panel, Toggle Wings Deploy Behind Cavity

Packaging Details:

Export carton

Highlight:

extra long plastic butterfly anchor

plastic butterfly anchor extended reach

ewis butterfly anchor plastic

Product Description

Extra Long Butterfly Toggle Anchor Extended Reach Fastener for Thick Insulation Board and EWIS Hollow Wall Installation

Product Description

The Extra Long Butterfly Toggle Anchor is engineered for thick wall panel and insulation board applications where standard length toggle anchors cannot reach through the panel thickness to the cavity space. Featuring an extended screw length of 80 mm to 150 mm and lengthened toggle mechanism, this anchor penetrates through thick external insulation layers, multi-layer sandwich panels, and composite wall boards to deploy the butterfly wings in the substrate cavity behind all panel layers. The extended screw is manufactured from high-strength zinc-plated carbon steel with a uniform thread profile along the entire length.

Features

80-150 mm Extended Screw Length: Penetrates through thick insulation board, multi-layer panels, and composite wall assemblies to reach the hollow cavity for proper anchoring.

Uniform Full-Length Thread Profile: Zinc-plated carbon steel screw with consistent thread engagement along entire length ensures reliable toggle body attachment regardless of panel thickness.

EWIS-Optimized Fastening: Specifically designed for External Wall Insulation System fixture attachment where anchor must bridge substantial insulation thickness.

Corrosion-Resistant Zinc Plating: Full-length zinc plating protects against moisture in external wall applications for long-term installation durability.

Technical Parameters

General Information
Product Name	Extra Long Plastic Butterfly Anchor / Extended Reach Toggle Anchor
Material	Nylon PA6 Body & Expandable Wings + Extended Zinc-Plated Steel Screw
Color Options	Grey, White, Natural (customizable)
Mechanism Type	Extended screw-tighten expansion: long screw reaches through thick panels to trigger wing expansion in cavity
Dimensions & Compatibility
Anchor Diameter (Wings Closed)	10 mm – 12 mm
Anchor Length	80 mm – 150 mm (extended)
Thread Size Compatibility	M6, M8
Installation Hole Diameter	10 mm – 12 mm
Recommended Wall Thickness	30 mm – 120 mm (insulation + substrate)
Installation
Installation Method	Drill extended hole through all panel layers → clean dust → insert anchor → tighten screw to expand wings in cavity
Installation Tool	Electric drill with long masonry bit + Extended screwdriver or power driver
Key Feature	Uniform thread engagement along full screw length ensures consistent expansion regardless of panel thickness
Reusability	Not recommended; extended screw removal from deep cavity may be difficult
Performance & Load Capacity
Typical Load Capacity	10 – 15 kg per anchor (accounts for insulation shear)
Heavy-Duty Compatibility	Up to 20 kg with structural backing
Temperature Range	-25°C to +85°C
Environmental Compliance	RoHS Compliant, REACH Compliant
Standards Compliance	ISO 9001:2015; ETAG 014 compliant (EWIS)
Application
Applicable Substrates	Thick insulation board, EWIS composite panels, sandwich panels, multi-layer board assemblies
Common Applications	External wall insulation fixture attachment, composite cladding brackets, thick sandwich panel mounting
Usage Restriction	Ensure cavity depth behind panels is sufficient for full wing expansion
Packaging & Compliance
Standard Packaging	Extended anchor + matching long screw, packed in sets
Packaging Quantity	50 sets per box, reinforced export carton
Certifications	ISO 9001:2015 (manufacturing), ETAG 014 (thermal bridge compliant)

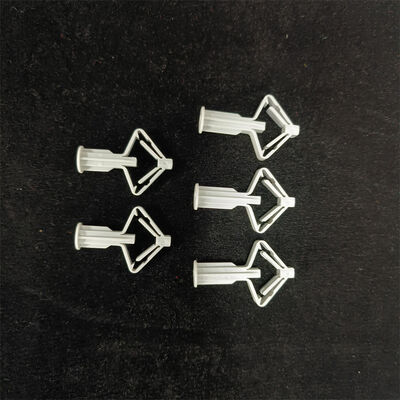

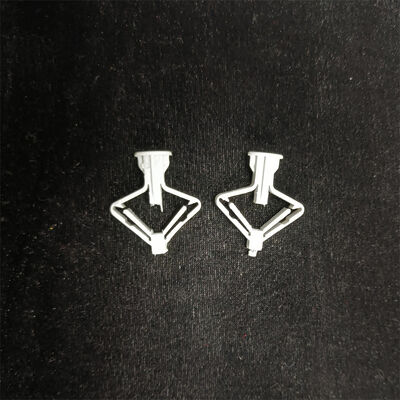

Extra Long Plastic Butterfly Anchor Extended Reach For Thick Insulation Board And EWIS Hollow Wall

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic insulation anchors be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
