Plastic Butterfly Anchor
Created with Pixso.

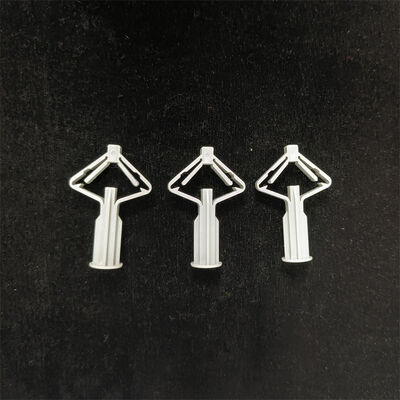

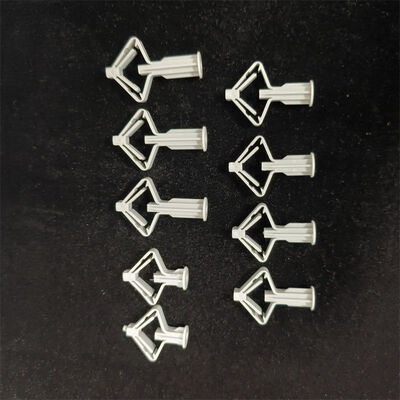

Multi Size Plastic Butterfly Anchor Assortment Kit Nylon Toggle for Hollow Drywall Plasterboard

Multi Size Plastic Butterfly Anchor Assortment Kit Nylon Toggle for Hollow Drywall Plasterboard

Brand Name: CangRui
Model Number: Plastic Butterfly Anchor
MOQ: 500 Sets
Price: USD 0.50 - 1.20 / Set
Payment Terms: T/T,L/C,PayPal,Western Union
Supply Ability: 300000 Sets per Month
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Material:
Nylon PA6 Body + Zinc-Plated Steel Screws
Included Sizes:
M4 X 35mm, M5 X 45mm, M6 X 55mm
Kit Quantity:
50 Sets Per Kit (20 X M4, 20 X M5, 10 X M6)
Anchor Type:
Multi-Size Butterfly Toggle Anchor Assortment
Installation Hole Diameter:
6 Mm (M4), 8 Mm (M5), 10 Mm (M6)
Recommended Wall Thickness:
8 Mm - 20 Mm
Load Capacity:
5-20 Kg Per Anchor (size Dependent)
Head Type:
Pan Head Phillips Drive With Flat Washer
Application:
Picture Frames, Shelves, Curtain Rods, Light Fixtures
Working Principle:
Drill Hole, Clean Dust, Insert Folded Toggle, Tighten Screw To Expand Wings In Cavity
Packaging Details:
Compartment kit box with size labels, export-grade corrugated carton
Highlight:

multi size plastic butterfly anchor

,

nylon butterfly anchor plastic

,

nylon plastic butterfly anchor

Product Description

Multi Size Plastic Butterfly Anchor Assortment Kit Nylon Toggle Fastener Screws for Hollow Drywall Plasterboard




Product Description



The Multi-Size Plastic Butterfly Anchor Toggle Assortment Kit consolidates three commonly used anchor sizes into a single organized package. Each kit contains M4, M5, and M6 butterfly toggle anchors with matching zinc-plated steel screws, enabling installers to handle varied fixture weights and wall thicknesses without switching between separate product packages. The plastic toggle body is precision-molded from high-elasticity nylon PA6, engineered specifically for hollow wall and plasterboard applications where the anchor is inserted through a pre-drilled hole and the screw is tightened to expand the butterfly wings behind the wall cavity. Installation follows a simple four-step sequence: drill a matching hole using the recommended drill bit size, clean out residual dust from the borehole, insert the folded toggle anchor through the hole, and tighten the screw to trigger wing expansion behind the drywall panel. This assortment kit is ideal for contractors and maintenance teams who encounter varied installation requirements across different job sites and fixture types.



Features





Three-Size Universal Compatibility: Includes M4, M5, and M6 toggle anchors in one kit, covering light decorative fixtures to medium-load wall installations without purchasing multiple separate products.

Organized Compartment Packaging: Each size group is packed in a labeled compartment within the kit box for quick identification and retrieval during on-site installation work.

Consistent Four-Step Installation: All sizes share the same installation method — drill hole to match anchor diameter, clean borehole dust, insert folded toggle, and tighten screw to expand wings behind the hollow wall cavity.

Contractor-Ready Kit Format: Pre-counted quantity per size with matching screws and washers included for each anchor, eliminating the need to source compatible hardware separately.





Technical Parameters



General Information
Product Name Multi-Size Plastic Butterfly Anchor Assortment Kit
Material Nylon PA6 (toggle body + expandable wings) + Zinc-Plated Steel Screws
Color Options White, Natural, Grey (size color-coded option available)
Mechanism Type Screw-tighten expansion: wings fold for insertion, expand inside hollow wall cavity upon tightening
Dimensions & Compatibility
Included Sizes M4 x 35mm, M5 x 45mm, M6 x 55mm
Anchor Diameter (Wings Closed) 6 mm, 8 mm, 10 mm (per size)
Installation Hole Diameter 6 mm (M4), 8 mm (M5), 10 mm (M6)
Recommended Wall Thickness 8 mm – 20 mm (varies by anchor size)
Installation
Installation Method Drill hole → clean dust → insert anchor → tighten screw to expand wings
Installation Tool Electric drill with matching bit + Phillips screwdriver PH2
Key Feature Three sizes in one organized kit for varied fixture weights and hollow wall thicknesses
Reusability Single-use recommended; replacement anchors available individually
Performance & Load Capacity
Typical Load Capacity (M4) 5 – 8 kg per anchor in 10 mm drywall
Typical Load Capacity (M5) 10 – 15 kg per anchor in 12.5 mm drywall
Typical Load Capacity (M6) 15 – 20 kg per anchor in 12.5 mm drywall
Temperature Range -20°C to +80°C
Environmental Compliance RoHS Compliant, REACH Compliant
Standards Compliance ISO 9001:2015
Application
Applicable Substrates Hollow walls: Drywall, Plasterboard, Gypsum Board; Hollow block: Lightweight concrete block
Common Applications Picture frames, mirrors, shelves, towel racks, light fixtures, curtain rods, coat hooks
Usage Restriction Not recommended for solid concrete or brick walls; select appropriate size for fixture weight
Packaging & Compliance
Standard Packaging Assortment kit box with labeled compartments: 20xM4, 20xM5, 10xM6 (50 sets total)
Packaging Quantity 50 sets per kit box, 20 kits per export carton
Certifications ISO 9001:2015 (manufacturing)



Multi Size Plastic Butterfly Anchor Assortment Kit Nylon Toggle for Hollow Drywall PlasterboardMulti Size Plastic Butterfly Anchor Assortment Kit Nylon Toggle for Hollow Drywall Plasterboard



Multi Size Plastic Butterfly Anchor Assortment Kit Nylon Toggle for Hollow Drywall Plasterboard

Multi Size Plastic Butterfly Anchor Assortment Kit Nylon Toggle for Hollow Drywall Plasterboard



FAQ



Do you have full standard sizes in stock for plastic expansion anchors?


We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.





What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.





What types of walls and base materials can this Plastic insulation anchors be used for?


It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.





What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.





What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.





Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.





Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.





Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
