High Temperature PA66 Plastic Butterfly Toggle Anchor Heat Resistant For Drywall Plasterboard

Name: High Temperature PA66 Plastic Butterfly Toggle Anchor Heat Resistant For Drywall Plasterboard
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Butterfly Anchor
Price: 0.06 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Butterfly Anchor
MOQ:	1000 Pieces
Price:	USD 0.06 - 0.18 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	3000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Material:

PA66 Nylon Body + Zinc-Plated Steel Screw

Anchor Length:

35 Mm - 55 Mm

Thread Size Compatibility:

M4, M5, M6

Heat Deflection Temperature:

120°C (PA66 Grade)

Installation Hole Diameter:

8 Mm - 10 Mm

Temperature Range:

-40°C To +120°C Continuous Service

Anchor Type:

High Temperature PA66 Butterfly Toggle Anchor

Load Capacity:

10-15 Kg At 23°C, 8-12 Kg At 80°C

Application:

HVAC Equipment, Commercial Kitchen, Boiler Room Fixtures

Working Principle:

Drill Hole, Clean Dust, Insert Folded Toggle, Tighten Screw To Expand Wings In Cavity

Packaging Details:

Heat-resistant labeled inner box, export-grade corrugated carton

Highlight:

butterfly toggle anchor heat resistant

pa66 butterfly toggle bolts

pa66 butterfly toggle anchor

Product Description

High Temperature PA66 Plastic Butterfly Toggle Anchor Heat Resistant Hollow Wall Fastener for Drywall Plasterboard

Product Description

The High Temperature PA66 Plastic Butterfly Toggle Anchor is engineered for industrial and commercial hollow wall installations where elevated ambient temperatures would degrade or deform standard nylon fasteners. Molded from premium-grade PA66 (Polyamide 66) compound with a heat deflection temperature 40°C higher than conventional PA6, this anchor maintains full structural integrity and reliable wing deployment performance in environments exposed to sustained high temperatures including factory mezzanine walls, commercial kitchen partitions, HVAC equipment room enclosures, and industrial drywall assemblies near heat-generating machinery. The PA66 body retains the same butterfly toggle expansion mechanism: the anchor is inserted through a pre-drilled hole in the hollow wall panel and the screw is tightened to expand the butterfly wings behind the cavity. Installation follows the standard four-step drywall fastening procedure: drill the hole with a matching diameter bit, clean drilling dust thoroughly from the borehole, insert the folded toggle anchor into the cavity, and tighten the screw to deploy the wings securely behind the plasterboard.

Features

PA66 High Temperature Grade: Heat deflection temperature of approximately 120°C (248°F) vs 80°C for standard PA6, enabling reliable performance in industrial high-heat wall assemblies and equipment enclosures.

Thermal Dimensional Stability: PA66 maintains anchor body dimensions and structural integrity under sustained elevated temperatures without softening, warping, or creep deformation that compromises holding strength.

Full Wing Expansion at Temperature: Butterfly toggle mechanism deploys reliably across the entire rated temperature range with consistent screw-tighten expansion action behind hollow wall cavities.

Standard Installation Protocol: Same four-step drill hole, clean dust, insert folded toggle, and tighten screw process as standard butterfly anchors, compatible with existing installation tooling.

Technical Parameters

General Information
Product Name	High Temperature PA66 Plastic Butterfly Toggle Anchor
Material	PA66 Nylon (body + expandable wings) + Zinc-Plated Steel Screw
Color Options	Grey, Natural (heat-stable pigment)
Mechanism Type	Screw-tighten expansion: heat-resistant PA66 body for elevated temperature environments
Dimensions & Compatibility
Anchor Diameter (Wings Closed)	8 mm – 10 mm
Anchor Length	35 mm – 55 mm
Thread Size Compatibility	M4, M5, M6
Installation Hole Diameter	8 mm – 10 mm drill bit
Recommended Wall Thickness	10 mm – 15 mm (industrial drywall)
Installation
Installation Method	Drill hole → clean dust → insert folded toggle → tighten screw to expand wings
Installation Tool	Electric drill + Screwdriver (Phillips PH2)
Key Feature	PA66 nylon body withstands sustained elevated temperatures up to 120°C without deformation or strength loss
Reusability	Not recommended; thermal cycling may affect wing memory for reuse
Performance & Load Capacity
Typical Load Capacity (at 23°C)	10 – 15 kg per anchor in 12.5 mm drywall
Load Capacity (at 80°C)	8 – 12 kg per anchor (reduced but stable)
Heat Deflection Temperature (HDT)	120°C (PA66) vs 80°C (standard PA6)
Temperature Range	-40°C to +120°C (continuous service)
Environmental Compliance	RoHS Compliant, REACH Compliant
Standards Compliance	ISO 9001:2015, UL 94 HB flame rating
Application
Applicable Substrates	Industrial drywall, fire-rated gypsum board, high-temperature partition panels
Common Applications	HVAC equipment room wall fixtures, factory mezzanine partitions, commercial kitchen wall shelving, boiler room accessories
Usage Restriction	Not for direct flame contact or continuous exposure above 120°C; verify screw plating compatibility at elevated temperatures
Packaging & Compliance
Standard Packaging	Anchor + matching screw (Phillips pan head), packed in sets
Packaging Quantity	100 sets per box, export carton
Certifications	ISO 9001:2015 (manufacturing), UL 94 HB

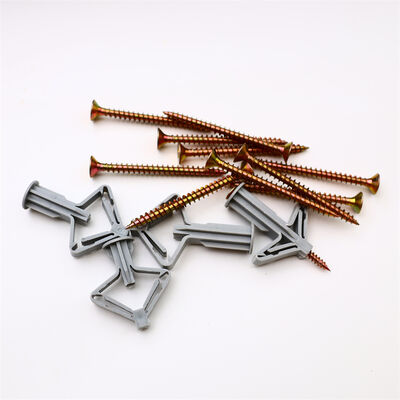

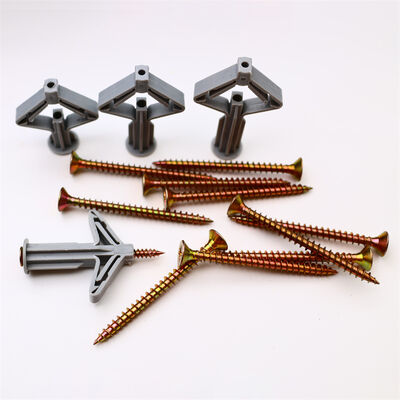

High Temperature PA66 Plastic Butterfly Toggle Anchor Heat Resistant For Drywall Plasterboard

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic insulation anchors be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
