Anti Rotation Ribbed Plastic Butterfly Screw No Spin Hollow Wall Fastener For Drywall Plasterboard Mounting

Name: Anti Rotation Ribbed Plastic Butterfly Screw No Spin Hollow Wall Fastener For Drywall Plasterboard Mounting
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Butterfly Anchor
Price: 0.04 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Butterfly Anchor
MOQ:	1000 Pieces
Price:	USD 0.04 - 0.12 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	5000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Material:

Nylon PA6 Ribbed Body + Zinc-Plated Steel Screw

Anchor Length:

35 Mm - 55 Mm

Thread Size Compatibility:

M4, M5, M6

Installation Hole Diameter:

8 Mm - 10 Mm

Anti-Rotation Feature:

Longitudinal Ribs On Outer Sleeve

Anchor Type:

Anti-Rotation Ribbed Butterfly Toggle Anchor

Load Capacity:

10-15 Kg In 12.5 Mm Drywall

Head Type:

Pan Head Phillips Drive

Application:

Shelves, Handrails, Towel Bars, Light Fixtures

Working Principle:

Drill Hole, Clean Dust, Insert Ribbed Body, Ribs Lock Anchor, Tighten Screw To Expand Wings

Packaging Details:

WNRLN branded inner box, export-grade corrugated carton

Highlight:

ribbed plastic butterfly screw

plastic butterfly screw no spin

ribbed butterfly screw plastic

Product Description

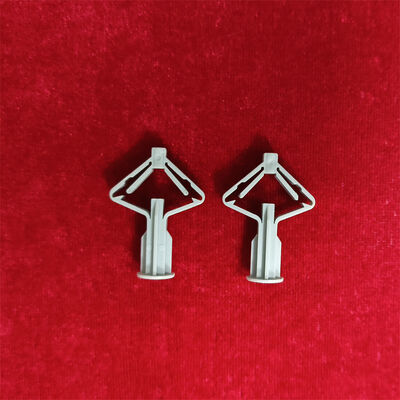

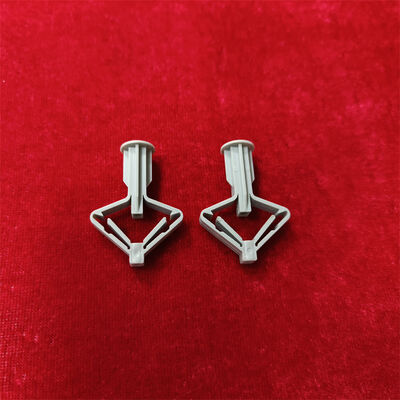

Anti Rotation Ribbed Plastic Butterfly Toggle Anchor No Spin Hollow Wall Fastener for Drywall Plasterboard Mounting

Product Description

The Anti-Rotation Ribbed Plastic Butterfly Toggle Anchor is an advanced hollow wall fastener engineered with a ribbed body design that prevents the anchor sleeve from spinning inside the borehole during screw tightening. A common failure mode in conventional smooth-body butterfly anchors is co-rotation — where the entire anchor body turns together with the screw instead of allowing the screw to advance and trigger wing expansion. The ribbed anchor features longitudinal anti-rotation ribs along the outer sleeve surface that bite into the drywall borehole wall, locking the anchor body in place while the screw drives through the internal thread to deploy the butterfly wings behind the hollow wall cavity. Manufactured from high-toughness nylon PA6 with zinc-plated steel screws, this anchor follows the standard four-step hollow wall installation process: drill a hole matching the anchor diameter, remove borehole dust for clean insertion, push the folded toggle anchor into the hole, and tighten the screw to expand the butterfly wings securely behind the plasterboard panel.

Features

Longitudinal Anti-Rotation Ribs: Raised ribs along the outer anchor sleeve grip the borehole wall to prevent body co-rotation during screw driving, ensuring reliable wing expansion on every installation.

Consistent Wing Deployment: Anti-spin body design guarantees the screw advances through the internal thread rather than rotating the entire assembly, delivering predictable toggle expansion behind the wall cavity.

Standard Four-Step Installation: Follows the proven drill hole, clean dust, insert folded toggle, and tighten screw sequence — no additional tools or steps required beyond standard practice.

Ribbed PA6 Nylon Construction: High-toughness nylon PA6 body with integrally molded anti-rotation ribs withstands installation torque without cracking or stripping the borehole engagement surface.

Technical Parameters

General Information
Product Name	Anti-Rotation Ribbed Plastic Butterfly Toggle Anchor
Material	Nylon PA6 (ribbed body + expandable wings) + Zinc-Plated Steel Screw
Color Options	White, Natural, Grey (customizable)
Mechanism Type	Screw-tighten expansion with anti-rotation ribbed sleeve: wings fold for insertion, ribs lock body during tightening
Dimensions & Compatibility
Anchor Diameter (Wings Closed)	8 mm – 10 mm
Anchor Length	35 mm – 55 mm (standard)
Thread Size Compatibility	M4, M5, M6
Installation Hole Diameter	8 mm – 10 mm drill bit
Recommended Wall Thickness	10 mm – 15 mm (standard drywall)
Installation
Installation Method	Drill hole → clean dust → insert ribbed anchor → tighten screw (ribs prevent spin) to expand wings
Installation Tool	Electric drill + Screwdriver (Phillips PH2)
Key Feature	Anti-rotation ribbed sleeve prevents body spinning during screw tightening for reliable one-handed wing deployment
Reusability	Single-use recommended; ribbed body designed for one-time borehole engagement
Performance & Load Capacity
Typical Load Capacity	10 – 15 kg per anchor in 12.5 mm drywall
Heavy-Duty Compatibility	Not applicable (standard duty)
Temperature Range	-20°C to +80°C
Environmental Compliance	RoHS Compliant, REACH Compliant
Standards Compliance	ISO 9001:2015
Application
Applicable Substrates	Drywall, Plasterboard, Gypsum Board, Hollow Partition Wall
Common Applications	Wall shelves, handrails, towel bars, light fixtures, curtain rods, bathroom accessories, mirror mounting
Usage Restriction	Not suitable for solid concrete, solid brick, or overhead ceiling installations
Packaging & Compliance
Standard Packaging	Anchor + matching screw (Phillips pan head), packed in sets
Packaging Quantity	100 sets per box, export carton
Certifications	ISO 9001:2015 (manufacturing)

Anti Rotation Ribbed Plastic Butterfly Screw No Spin Hollow Wall Fastener For Drywall Plasterboard Mounting

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic insulation anchors be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
