Plastic Butterfly Anchor
Created with Pixso.

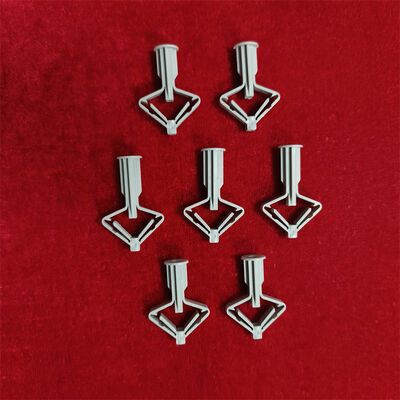

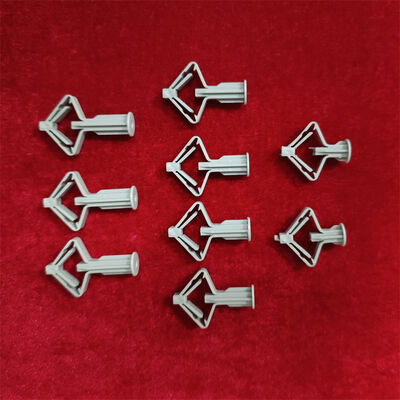

Translucent Plastic Butterfly Anchor Invisible Nylon for Decorative Drywall Plasterboard

Translucent Plastic Butterfly Anchor Invisible Nylon for Decorative Drywall Plasterboard

Brand Name: CangRui
Model Number: Plastic Butterfly Anchor
MOQ: 1000 Pieces
Price: USD 0.05 - 0.15 / Piece
Payment Terms: T/T,L/C,PayPal,Western Union
Supply Ability: 4000000 Pieces per Month
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Material:
Translucent Nylon PA6 Body + Zinc-Plated Steel Screw
Anchor Length:
35 Mm - 50 Mm
Thread Size Compatibility:
M4, M5, M6
Installation Hole Diameter:
8 Mm - 10 Mm
Visual Feature:
Light-diffusing Translucent Body Blends With White Walls
Anchor Type:
Translucent Butterfly Toggle Anchor
Load Capacity:
10-15 Kg In 12.5 Mm Drywall
Head Type:
Pan Head Phillips Drive
Application:
Gallery Walls, Decorative Shelving, Display Installations
Working Principle:
Drill Hole, Clean Dust, Insert Folded Toggle, Tighten Screw To Expand Wings In Cavity
Packaging Details:
WNRLN branded inner box, export-grade corrugated carton
Highlight:

translucent plastic butterfly anchor

,

translucent butterfly anchor plastic

,

nylon butterfly anchor plastic

Product Description

Translucent Plastic Butterfly Toggle Anchor Invisible Nylon Hollow Wall Fastener for Decorative Drywall Plasterboard




Product Description



The Translucent Nylon Plastic Butterfly Toggle Anchor is an aesthetically engineered hollow wall fastener designed for decorative installations where visible anchor heads or flange marks would compromise the finished appearance. Molded from a specialized translucent nylon PA6 compound, the anchor body and flange ring blend visually with white and light-colored wall surfaces, making the installed anchor head nearly imperceptible against painted drywall or plasterboard. The translucent material retains full mechanical performance including high tensile strength, crack resistance, and reliable butterfly wing deployment behind the hollow wall cavity. Installation follows the standard four-step sequence for hollow wall fastening: drill a hole to match the anchor diameter specifications, thoroughly clean the borehole of drilling dust, insert the folded toggle anchor through the hole into the wall cavity, and tighten the screw to drive wing expansion behind the plasterboard surface. Ideal for high-end residential interior projects, gallery walls, and display installations where visible fasteners detract from the visual presentation.



Features





Translucent PA6 Body Blend: Specialized nylon compound with light-diffusing translucency enables the anchor head to visually blend with white and light-colored wall finishes after installation.

Full Strength Translucent Material: Retains complete mechanical properties including tensile strength, impact resistance, and wing deployment reliability identical to opaque nylon grades.

Minimal Visual Footprint: Semi-transparent flange ring and body create a near-invisible anchor point that does not draw attention to the fastener location on finished wall surfaces.

Four-Step Standard Installation: Same proven drill hole, clean dust, insert folded toggle, and tighten screw process — no special handling required for the translucent body material.





Technical Parameters



General Information
Product Name Translucent Nylon Plastic Butterfly Toggle Anchor
Material Translucent Nylon PA6 (body + expandable wings) + Zinc-Plated Steel Screw
Color Options Translucent White, Translucent Natural (light-diffusing)
Mechanism Type Screw-tighten expansion: translucent body with same mechanical performance as standard opaque nylon
Dimensions & Compatibility
Anchor Diameter (Wings Closed) 8 mm – 10 mm
Anchor Length 35 mm – 50 mm
Thread Size Compatibility M4, M5, M6
Installation Hole Diameter 8 mm – 10 mm drill bit
Recommended Wall Thickness 10 mm – 15 mm (standard drywall)
Installation
Installation Method Drill hole → clean dust → insert folded toggle → tighten screw to expand wings
Installation Tool Electric drill + Screwdriver (Phillips PH2)
Key Feature Translucent nylon body blends with white wall surfaces for near-invisible anchor appearance
Reusability Single-use recommended; translucent body may show stress marks if reused
Performance & Load Capacity
Typical Load Capacity 10 – 15 kg per anchor in 12.5 mm drywall
Heavy-Duty Compatibility Not applicable (standard duty)
Temperature Range -20°C to +80°C
Environmental Compliance RoHS Compliant, REACH Compliant
Standards Compliance ISO 9001:2015
Application
Applicable Substrates Painted drywall, white plasterboard, light-colored gypsum board, decorative hollow panels
Common Applications Gallery walls, decorative shelving, display fixtures, interior design installations, high-end residential fittings
Usage Restriction Not for dark-colored walls where translucency provides no visual benefit; not for structural applications
Packaging & Compliance
Standard Packaging Anchor + matching screw (Phillips pan head), packed in sets
Packaging Quantity 100 sets per box, export carton
Certifications ISO 9001:2015 (manufacturing)



Translucent Plastic Butterfly Anchor Invisible Nylon for Decorative Drywall PlasterboardTranslucent Plastic Butterfly Anchor Invisible Nylon for Decorative Drywall Plasterboard



Translucent Plastic Butterfly Anchor Invisible Nylon for Decorative Drywall Plasterboard

Translucent Plastic Butterfly Anchor Invisible Nylon for Decorative Drywall Plasterboard



FAQ



Do you have full standard sizes in stock for plastic expansion anchors?


We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.





What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.





What types of walls and base materials can this Plastic insulation anchors be used for?


It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.





What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.





What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.





Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.





Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.





Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
