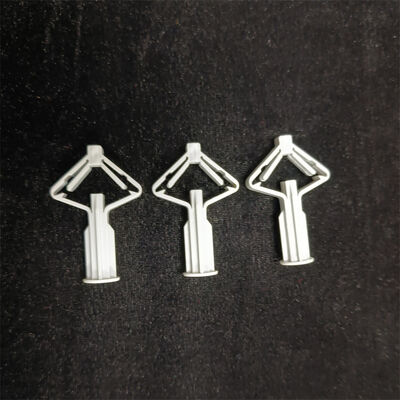

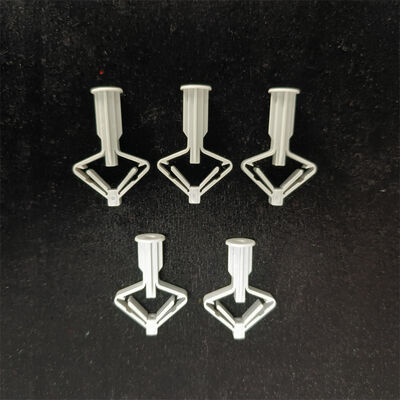

Quick Release Reusable Plastic Butterfly Anchor Tool Free For Drywall Plasterboard Mounting

Name: Quick Release Reusable Plastic Butterfly Anchor Tool Free For Drywall Plasterboard Mounting
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Butterfly Anchor
Price: 0.05 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Butterfly Anchor
MOQ:	1000 Pieces
Price:	USD 0.05 - 0.16 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	4000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Material:

Nylon PA6 Body With Wing Retention + Zinc-Plated Steel Screw

Anchor Length:

35 Mm - 55 Mm

Thread Size Compatibility:

M4, M5, M6

Reusability:

Up To 5 Reuse Cycles

Installation Hole Diameter:

8 Mm - 10 Mm

Removal Method:

Loosen Screw, Wings Retract, Pull Anchor Out Intact

Anchor Type:

Quick Release Reusable Butterfly Toggle Anchor

Load Capacity:

10-15 Kg First Use, 8-12 Kg Reuse Cycles

Application:

Rental Properties, Trade Shows, Seasonal Decor, Temporary Shelving

Working Principle:

Drill Hole, Clean Dust, Insert Folded Toggle, Tighten Screw To Expand Wings; Reverse For Removal

Packaging Details:

WNRLN branded inner box with reuse instruction insert, export-grade corrugated carton

Highlight:

reusable plastic butterfly anchor

plastic butterfly anchor tool free

reusable butterfly anchor plastic

Product Description

Quick Release Reusable Plastic Butterfly Toggle Anchor Tool Free Hollow Wall Fastener for Drywall Plasterboard Mounting

Product Description

The Quick Release Reusable Plastic Butterfly Toggle Anchor is an innovative hollow wall fastener engineered for temporary installations, rental property applications, and scenarios requiring non-destructive fixture removal and reinstallation. Unlike standard butterfly toggle anchors where the toggle wings detach and fall behind the wall cavity upon screw removal, this anchor features an integrated retention mechanism that keeps the toggle wings attached to the anchor body even when the screw is fully removed. This allows the entire anchor assembly to be extracted intact from the borehole, enabling clean removal without losing components inside the wall cavity and permitting multiple reuse cycles of the same anchor at the same or different locations. The nylon PA6 body delivers the same reliable butterfly wing expansion performance as permanent anchors while adding the flexibility of tool-free removal and reuse. Installation follows the standard four-step hollow wall sequence: drill a hole matching the anchor diameter, clean the borehole of dust and debris, insert the folded toggle anchor through the hole, and tighten the screw to expand the butterfly wings behind the drywall for secure fixture mounting.

Features

Integrated Wing Retention Mechanism: Toggle wings remain attached to the anchor body even when the screw is fully removed, preventing lost components behind the wall cavity during fixture relocation.

Tool-Free Extraction and Reuse: Entire anchor assembly can be pulled out cleanly from the borehole after screw removal, enabling multiple installation cycles without damaging the wall or requiring new anchors.

Rental and Temporary Installation Ready: Ideal for rental properties, trade show displays, seasonal decoration mounting, and staged home installations where fixtures are frequently changed or removed.

Standard PA6 Strength with Quick Release: Same Nylon PA6 material and butterfly wing expansion performance as permanent toggle anchors with the added benefit of non-destructive removal capability.

Technical Parameters

General Information
Product Name	Quick Release Reusable Plastic Butterfly Toggle Anchor
Material	Nylon PA6 (body + expandable wings with retention mechanism) + Zinc-Plated Steel Screw
Color Options	White, Natural, Grey (customizable)
Mechanism Type	Screw-tighten expansion with integrated wing retention: wings stay attached for clean removal and reuse
Dimensions & Compatibility
Anchor Diameter (Wings Closed)	8 mm – 10 mm
Anchor Length	35 mm – 55 mm
Thread Size Compatibility	M4, M5, M6
Installation Hole Diameter	8 mm – 10 mm drill bit
Recommended Wall Thickness	10 mm – 15 mm (standard drywall)
Installation
Installation Method	Drill hole → clean dust → insert folded toggle → tighten screw to expand wings
Removal Method	Loosen screw fully → wings retract with retention mechanism → pull entire anchor out intact
Installation Tool	Electric drill + Screwdriver (Phillips PH2)
Key Feature	Quick release retention mechanism allows clean anchor extraction and reuse without losing components in wall cavity
Reusability	Up to 5 reuse cycles at same or different locations (inspect wings before each reuse)
Performance & Load Capacity
Typical Load Capacity (First Use)	10 – 15 kg per anchor in 12.5 mm drywall
Load Capacity (Reuse Cycle 2-5)	8 – 12 kg per anchor (gradual reduction with reuse)
Temperature Range	-20°C to +80°C
Environmental Compliance	RoHS Compliant, REACH Compliant
Standards Compliance	ISO 9001:2015
Application
Applicable Substrates	Drywall, Plasterboard, Gypsum Board, Hollow Partition Wall
Common Applications	Rental property fixtures, trade show booth displays, seasonal decoration mounting, staged home installations, temporary shelving
Usage Restriction	Maximum 5 reuse cycles; inspect wing hinge integrity before each reuse; not for permanent structural installations
Packaging & Compliance
Standard Packaging	Anchor + matching screw (Phillips pan head) + reuse instruction card, packed in sets
Packaging Quantity	100 sets per box, export carton
Certifications	ISO 9001:2015 (manufacturing)

Quick Release Reusable Plastic Butterfly Anchor Tool Free For Drywall Plasterboard Mounting

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic insulation anchors be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
