Smoke Detector Alarm Hollow Wall Mini Plastic Wing Anchor M3.5x30mm OEM

Name: Smoke Detector Alarm Hollow Wall Mini Plastic Wing Anchor M3.5x30mm OEM
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Hollow Wall Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Hollow Wall Anchors
MOQ:	100 Pieces
Price:	USD 0.02-0.15 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Plug Dia:

5mm

Plug Length:

30mm

Screw Size:

M3.5x30mm

Drill Hole:

5mm

Screw Material:

Zinc Steel

Anchor Type:

Mini Wing

Substrate:

Plasterboard

Color:

Yellow, OEM

Measurement:

Metric

Pack:

Pre-Assembled

Corrosion:

Zinc-Plated

Electrical:

Non-Conductive

Use Case:

Smoke Alarm

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

plastic wing anchor m3.5x30mm

m3.5x30mm plastic wing anchors

oem plastic wing anchor

Product Description

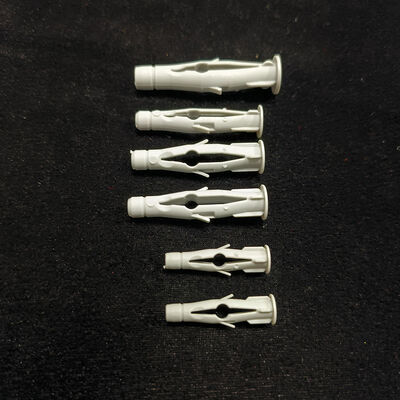

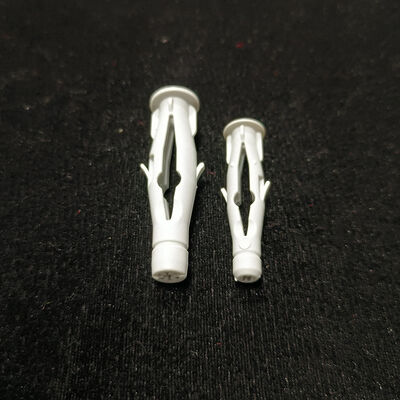

Smoke Detector Alarm Hollow Wall Mini Wing Anchor Nylon Ceiling Mounting

Product Description

This Nylon Hollow Wall Mini Wing Anchor is a lightweight ceiling-mount fastening solution specifically designed for smoke detectors, carbon monoxide alarms, security sensors, motion detectors, and small ceiling-mounted safety devices on plasterboard and gypsum board surfaces. Each anchor includes a 5mm diameter nylon mini expanding wing plug pre-matched with an M3.5 x 30mm zinc-plated self-tapping screw, providing secure overhead anchoring for lightweight safety equipment.

The installation follows the straightforward hollow wall anchoring principle: drill a 5mm hole at the ceiling mounting position, insert the nylon plug until the flange is flush with the ceiling surface, position the detector mounting bracket, and drive the M3.5 screw upward into the plug. As the screw advances, it compresses the nylon body and triggers the mini-wings to fold outward behind the plasterboard. These wings create a positive mechanical lock on the rear side of the ceiling board, securely holding the safety device against gravity without relying on hole-wall friction that can deteriorate over time in ceiling installations.

The nylon material combines excellent toughness with superior aging resistance, ensuring the wing anchor maintains its full gripping force through the entire service life of the smoke detector - often 10 years or more between device replacements. The compact 30mm body length requires minimal rear cavity clearance, making it compatible with the tight overhead spaces typically found in ceiling installations. The nylon plug body is naturally non-conductive, providing an additional safety layer for electrically powered safety devices.

Features

Ultra-Compact Ceiling Profile: The slim 5mm x 30mm plug body requires only a minimal 3mm rear cavity clearance behind the plasterboard, ensuring compatibility with the tight overhead spaces and shallow cavities commonly encountered in ceiling installations. The low-profile flange sits flush against the ceiling surface, allowing the detector mounting plate to be positioned tightly without visible anchor gaps.

Decade-Long Aging Resistance: The PA6 nylon material is specifically formulated for long-term aging resistance, maintaining full wing expansion grip and mechanical integrity through the entire 10+ year service life of smoke detectors and safety alarms. Never becomes brittle, never cracks, and never loses holding force over extended ceiling installation periods.

Non-Conductive Safety Anchor: The 100% nylon plug body functions as a natural electrical insulator between the metal screw and surrounding ceiling material. This provides essential electrical safety when mounting hard-wired smoke detectors and alarm sensors, eliminating any risk of current conduction through the mounting fastener to the ceiling fixture bracket.

Technical Parameters

General Information
Product Name	Plastic Hollow Wall Anchors / Cavity Wall Fixing Set
Plug Diameter	5mm
Plug Length	30mm
Screw Diameter	M3.5
Screw Length	30mm
Pre-drill Hole Diameter	5mm
Min. Wall Thickness	3mm
Plug Material	Nylon PA6 / Polypropylene Engineering Plastic
Screw Material	Carbon Steel (Zinc-Plated) / Stainless Steel 304
Color Options	Yellow, White, Grey, Blue, Red, OEM
Anchor Type	Hollow Wall Self-Expanding Wing Anchor
Installation Method	Pre-drill → insert plug → drive screw → auto-expand anchor
Load Capacity (Drywall 12.5mm)	Up to 8kg
Load Capacity (Hollow Brick)	Up to 12kg
Temperature Range	-30°C to +70°C
Compliance	RoHS Compliant, REACH Compliant
Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag

Smoke Detector Alarm Hollow Wall Mini Plastic Wing Anchor M3.5x30mm OEM

FAQ

Q: Do you have full standard sizes in stock for plastic expansion anchors?

A: We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

Q: What is the material and load-bearing capacity of your Plastic insulation anchors?

A: Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

Q: What types of walls and base materials can this wall plug be used for?

A: It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

Q: What is your MOQ and wholesale price discount policy?

A: Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

Q: What is your production lead time and mass supply capacity?

A: Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Q: Can you customize size, color, packaging and OEM private label?

A: We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Q: Do you support mixed batch with other fastener products?

A: Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Q: Can I get free samples for quality checking?

A: Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
