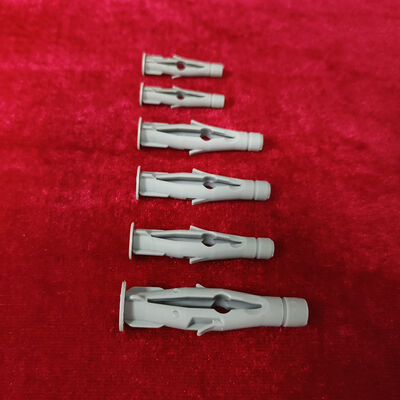

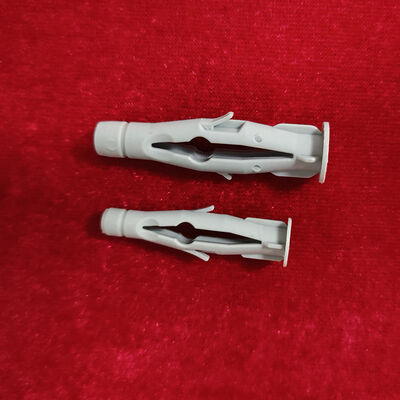

Nylon PA6 Decorative Plastic Hollow Wall Anchors M5x45mm Screw Size

Name: Nylon PA6 Decorative Plastic Hollow Wall Anchors M5x45mm Screw Size
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Hollow Wall Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Hollow Wall Anchors
MOQ:	100 Pieces
Price:	USD 0.02-0.15 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Plug Material:

Nylon PA6

Plug Dia:

8mm

Plug Length:

45mm

Screw Size:

M5x45mm

Drill Hole:

8mm

Screw Material:

Zinc Steel

Anchor Type:

Wing Expand

Substrate:

Hollow Block

Color:

Yellow, OEM

Measurement:

Metric

Pack:

Pre-Assembled

Corrosion:

Zinc-Plated

Use Case:

Wall Panel

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

decorative plastic hollow wall anchors

plastic hollow wall anchors m5x45mm

decorative plastic toggle drywall anchors

Product Description

Decorative Wall Panel Hollow Wall Wing Anchor Nylon Interior Cladding Mounting

Product Description

This PA6 Nylon Hollow Wall Wing Anchor is a medium-duty fastening solution designed for decorative wall panels, PVC wall boards, interior wall cladding, and architectural trim installations on plasterboard and hollow block substrates. Each anchor includes an 8mm diameter PA6 nylon expanding wing plug pre-matched with an M5 x 45mm zinc-plated self-tapping screw, providing dependable anchoring for interior decorative wall applications.

The installation follows the reliable hollow wall anchoring principle: drill an 8mm hole at each panel mounting clip position, insert the nylon plug until the flange is flush with the wall surface, position the panel mounting clip, and drive the M5 screw through the clip into the plug. As the screw advances, it compresses the nylon body and triggers the internal wings to fold outward behind the wall cavity. These wings spread to create a positive mechanical grip on the rear side of the wall board, securely anchoring decorative panels without the risk of anchors pulling through thin wall coverings over time.

The nylon material provides excellent toughness and long-term dimensional stability, maintaining consistent wing expansion force through the entire service life of interior decorative wall installations. The nylon plug body is completely rust-proof and unaffected by interior humidity, cleaning products, or temperature variations. The 45mm plug length with 5mm minimum wall thickness accommodates the most common residential plasterboard specifications, while the medium M5 screw provides appropriate fastening strength for decorative panel systems.

Features

Panel-Safe Wing Distribution: The 8mm wing expansion creates a wide rear bearing surface that distributes the clamping force of decorative panel clips evenly across the back of the plasterboard. This prevents the localized crushing and surface dimpling that can occur with concentrated point-load fasteners, maintaining the perfectly flat appearance of decorative wall panels.

Interior-Grade Corrosion Protection: The 100% rust-proof nylon plug combined with the zinc-plated steel screw provides complete protection against the interior humidity, cleaning moisture, and occasional wall condensation common in residential and commercial interiors. Neither component rusts, corrodes, or stains the decorative panel surface over years of installation.

Multi-Clip Rapid Installation: The pre-assembled plug-and-screw format enables rapid sequential installation of multiple panel mounting clips: drill, insert plug, position clip, drive screw. This streamlined workflow significantly reduces the time required for large decorative wall panel installations in residential and commercial interior fit-out projects.

Technical Parameters

General Information
Product Name	Plastic Hollow Wall Anchors / Cavity Wall Fixing Set
Plug Diameter	8mm
Plug Length	45mm
Screw Diameter	M5
Screw Length	45mm
Pre-drill Hole Diameter	8mm
Min. Wall Thickness	5mm
Plug Material	Nylon PA6 / Polypropylene Engineering Plastic
Screw Material	Carbon Steel (Zinc-Plated) / Stainless Steel 304
Color Options	Yellow, White, Grey, Blue, Red, OEM
Anchor Type	Hollow Wall Self-Expanding Wing Anchor
Installation Method	Pre-drill → insert plug → drive screw → auto-expand anchor
Load Capacity (Drywall 12.5mm)	Up to 22kg
Load Capacity (Hollow Brick)	Up to 32kg
Temperature Range	-30°C to +70°C
Compliance	RoHS Compliant, REACH Compliant
Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag

Nylon PA6 Decorative Plastic Hollow Wall Anchors M5x45mm Screw Size

FAQ

Q: Do you have full standard sizes in stock for plastic expansion anchors?

A: We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

Q: What is the material and load-bearing capacity of your Plastic insulation anchors?

A: Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

Q: What types of walls and base materials can this wall plug be used for?

A: It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

Q: What is your MOQ and wholesale price discount policy?

A: Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

Q: What is your production lead time and mass supply capacity?

A: Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Q: Can you customize size, color, packaging and OEM private label?

A: We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Q: Do you support mixed batch with other fastener products?

A: Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Q: Can I get free samples for quality checking?

A: Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
