Steam Proof Plastic Hollow Wall Anchors Bathroom Kitchen Mounting

Name: Steam Proof Plastic Hollow Wall Anchors Bathroom Kitchen Mounting
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Hollow Wall Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Hollow Wall Anchors
MOQ:	100 Pieces
Price:	USD 0.02-0.15 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Plug Dia:

10mm

Plug Length:

55mm

Screw Size:

M6x55mm

Drill Hole:

10mm

Screw Material:

Zinc Steel

Anchor Type:

Wing Expand

Substrate:

AAC Block

Color:

Yellow, OEM

Measurement:

Metric

Pack:

Pre-Assembled

Corrosion:

Zinc-Plated

Vibration:

Dampening

Use Case:

Exhaust Fan

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

plastic hollow wall anchors bathroom

steam proof plastic hollow wall anchors

bathroom plastic toggle drywall anchors

Product Description

Ventilation Exhaust Fan Hollow Wall Wing Anchor Nylon Bathroom Kitchen Mounting

Product Description

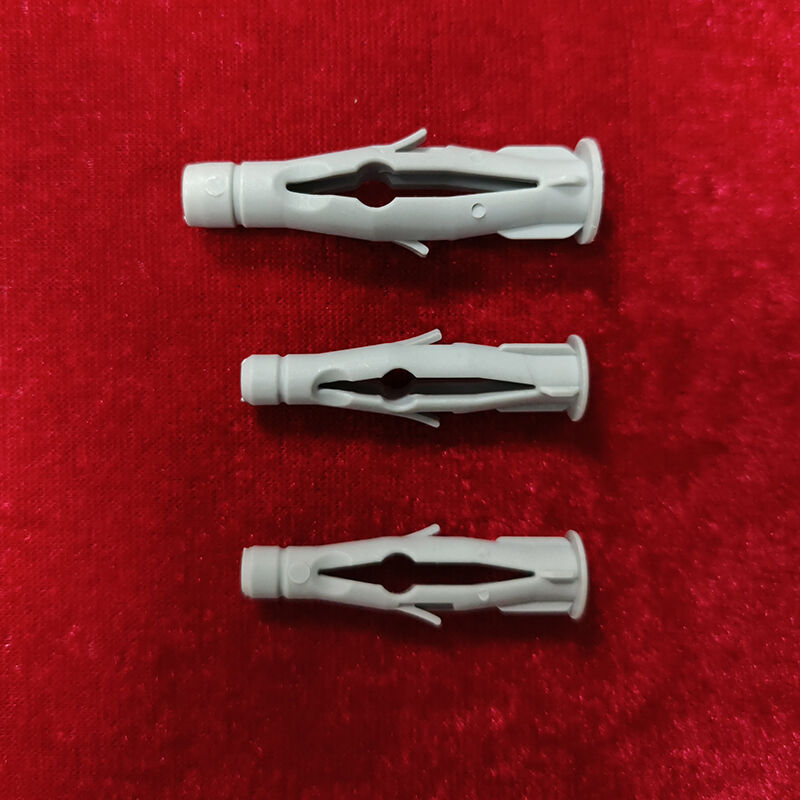

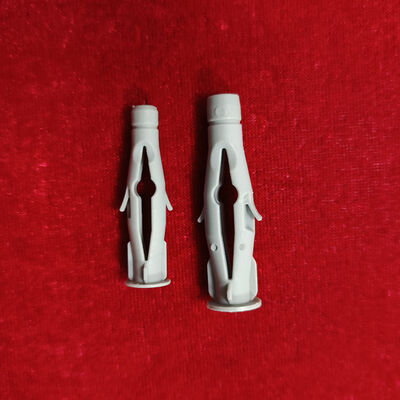

This PA6 Nylon Hollow Wall Wing Anchor is a heavy-duty vibration-resistant fastening solution designed for ventilation fans, exhaust fans, bathroom extractor units, and kitchen range hood mounting brackets on hollow brick, plasterboard, and aerated concrete substrates. Each anchor includes a 10mm diameter nylon expanding wing plug pre-matched with an M6 x 55mm zinc-plated self-tapping screw, providing secure anchoring that resists the continuous vibration generated by electric fan operation.

The installation follows the vibration-resistant hollow wall anchoring principle: drill a 10mm hole at each fan mounting bracket position, insert the nylon plug until the flange is flush with the wall surface, position the fan bracket, and drive the M6 screw through the bracket into the plug. As the screw advances, it compresses the nylon body and triggers the internal folding wings to spread behind the wall cavity. These wings create a positive rear-side mechanical lock that, critically, is unaffected by the continuous micro-vibration from electric fan motors - unlike metal expansion anchors that can gradually work loose under sustained vibration.

The nylon material offers a unique combination of toughness and natural vibration dampening properties, making it the ideal anchor material for motor-driven fixtures. The nylon body absorbs and dissipates fan-generated vibrations rather than transmitting them to the wall substrate, preventing the gradual anchor loosening that plagues rigid metal fasteners in vibration applications. The 55mm extended plug length provides a deep wing expansion zone for secure anchoring, while the completely waterproof nylon body ensures reliable performance in bathroom and kitchen extractor fan installations exposed to steam, cooking vapors, and humidity.

Features

Vibration-Dampening Nylon Core: The nylon plug body naturally absorbs and dissipates the continuous micro-vibrations generated by electric fan motors, preventing the gradual anchor loosening that affects rigid metal fasteners under sustained vibration. This vibration-dampening characteristic ensures ventilation fans remain securely mounted and noise-free through years of daily operation.

Deep Cavity Anti-Vibration Lock: The 55mm extended plug body ensures the internal folding wings fully deploy behind deeper wall cavities found in bathroom and kitchen wall construction. The complete wing expansion creates a maximized rear grip that resists both the static weight of the fan unit and the dynamic vibration forces from continuous motor operation.

Steam-Proof Kitchen Bathroom Grade: The 100% waterproof nylon plug is completely immune to the steam, cooking vapors, humidity, and temperature fluctuations present in kitchen and bathroom ventilation installations. The nylon body never rusts, never absorbs moisture, and never suffers mechanical degradation from prolonged exposure to these challenging environments.

Technical Parameters

General Information
Product Name	Plastic Hollow Wall Anchors / Cavity Wall Fixing Set
Plug Diameter	10mm
Plug Length	55mm
Screw Diameter	M6
Screw Length	55mm
Pre-drill Hole Diameter	10mm
Min. Wall Thickness	8mm
Plug Material	Nylon PA6 / Polypropylene Engineering Plastic
Screw Material	Carbon Steel (Zinc-Plated) / Stainless Steel 304
Color Options	Yellow, White, Grey, Blue, Red, OEM
Anchor Type	Hollow Wall Self-Expanding Wing Anchor
Installation Method	Pre-drill → insert plug → drive screw → auto-expand anchor
Load Capacity (Drywall 12.5mm)	Up to 32kg
Load Capacity (Hollow Brick)	Up to 48kg
Temperature Range	-30°C to +70°C
Compliance	RoHS Compliant, REACH Compliant
Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag

Steam Proof Plastic Hollow Wall Anchors Bathroom Kitchen Mounting

FAQ

Q: Do you have full standard sizes in stock for plastic expansion anchors?

A: We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

Q: What is the material and load-bearing capacity of your Plastic insulation anchors?

A: Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

Q: What types of walls and base materials can this wall plug be used for?

A: It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

Q: What is your MOQ and wholesale price discount policy?

A: Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

Q: What is your production lead time and mass supply capacity?

A: Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Q: Can you customize size, color, packaging and OEM private label?

A: We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Q: Do you support mixed batch with other fastener products?

A: Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Q: Can I get free samples for quality checking?

A: Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
