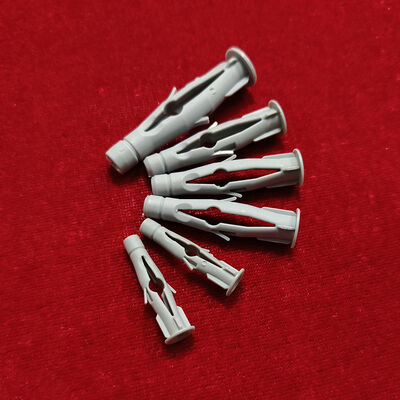

Cable Clip Conduit Plastic Hollow Wall Plug Compact Non Conductive Winged Plastic Anchor

Name: Cable Clip Conduit Plastic Hollow Wall Plug Compact Non Conductive Winged Plastic Anchor
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Hollow Wall Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Hollow Wall Anchors
MOQ:	100 Pieces
Price:	USD 0.02-0.15 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Plug Material:

Nylon PA6

Plug Dia:

5mm

Plug Length:

30mm

Screw Size:

M3.5x30mm

Drill Hole:

5mm

Screw Material:

Zinc Steel

Anchor Type:

Mini Wing

Substrate:

Plasterboard

Color:

Yellow, OEM

Measurement:

Metric

Pack:

Pre-Assembled

Corrosion:

Zinc-Plated

Electrical:

Non-Conductive

Use Case:

Cable Clip

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

plastic hollow wall plug compact

non conductive winged plastic anchor

compact winged plastic anchor

Product Description

Cable Clip Conduit Hollow Wall Compact Wing Anchor Nylon Wire Management Fixing

Product Description

This PA6 Nylon Hollow Wall Compact Wing Anchor is a lightweight fastening solution designed for cable clips, conduit straps, wire management brackets, and small electrical mounting hardware on plasterboard and drywall surfaces. Each anchor includes a 5mm diameter PA6 nylon mini expanding wing plug pre-matched with an M3.5 x 30mm zinc-plated self-tapping screw, providing discreet and reliable cable management anchoring.

The installation follows the simple hollow wall anchoring principle: drill a 5mm hole at each cable clip position, insert the nylon plug until the flange is flush with the wall surface, position the cable clip or conduit strap, and drive the M3.5 screw through the clip into the plug. As the screw advances, it compresses the nylon body and triggers the mini-wings to fold outward behind the plasterboard. These compact wings create a positive rear-side lock that securely holds cable clips and conduit straps in position, preventing the gradual loosening and sagging that can occur with friction-only plugs in hollow wall cable installations.

The nylon material provides excellent toughness and aging resistance, ensuring the mini wing anchor maintains its grip through the entire service life of electrical cable installations. The nylon plug body is naturally non-conductive, providing essential electrical insulation safety when mounting cable clips and conduit straps near live wiring. This, combined with the compact 30mm plug length that requires only 3mm rear cavity clearance, makes it ideal for the dense multiple-anchor-point installations typical of structured cabling projects.

Features

Dense-Point Cable Mounting: The compact 5mm diameter with 30mm body length enables rapid installation of multiple cable clip anchor points without creating oversized holes or excessive wall damage. Ideal for structured cabling projects and wire management installations where dozens of closely spaced anchor points are required along cable runs.

Non-Conductive Electrical Safe: The 100% nylon plug body acts as a natural electrical insulator, providing essential safety when mounting cable clips and conduit straps adjacent to or in proximity with electrical wiring. Completely eliminates any risk of unintended current conduction through the fastener body to the metal clip or strap hardware.

Friction-Free Wing Lock: Unlike basic friction plugs that can loosen over time from cable weight and thermal expansion cycles, the mini wing expansion creates a positive rear-side mechanical lock. This prevents cable clips from gradually working loose and sagging, maintaining neat and professional cable routing appearance for the life of the installation.

Technical Parameters

General Information
Product Name	Plastic Hollow Wall Anchors / Cavity Wall Fixing Set
Plug Diameter	5mm
Plug Length	30mm
Screw Diameter	M3.5
Screw Length	30mm
Pre-drill Hole Diameter	5mm
Min. Wall Thickness	3mm
Plug Material	Nylon PA6 / Polypropylene Engineering Plastic
Screw Material	Carbon Steel (Zinc-Plated) / Stainless Steel 304
Color Options	Yellow, White, Grey, Blue, Red, OEM
Anchor Type	Hollow Wall Self-Expanding Wing Anchor
Installation Method	Pre-drill → insert plug → drive screw → auto-expand anchor
Load Capacity (Drywall 12.5mm)	Up to 8kg
Load Capacity (Hollow Brick)	Up to 12kg
Temperature Range	-30°C to +70°C
Compliance	RoHS Compliant, REACH Compliant
Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag

Cable Clip Conduit Plastic Hollow Wall Plug Compact Non Conductive Winged Plastic Anchor

FAQ

Q: Do you have full standard sizes in stock for plastic expansion anchors?

A: We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

Q: What is the material and load-bearing capacity of your Plastic insulation anchors?

A: Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

Q: What types of walls and base materials can this wall plug be used for?

A: It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

Q: What is your MOQ and wholesale price discount policy?

A: Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

Q: What is your production lead time and mass supply capacity?

A: Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Q: Can you customize size, color, packaging and OEM private label?

A: We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Q: Do you support mixed batch with other fastener products?

A: Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Q: Can I get free samples for quality checking?

A: Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
