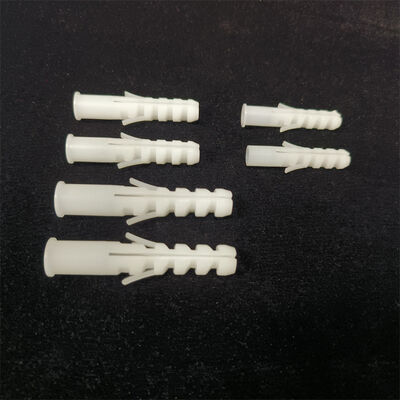

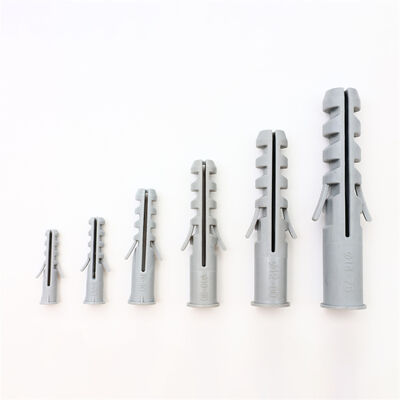

Pre Assembled Stainless Plastic Expansion Screw For Outdoor Wet Area Wall Installation

Name: Pre Assembled Stainless Plastic Expansion Screw For Outdoor Wet Area Wall Installation
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Expansion Anchor
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Expansion Anchor
MOQ:	3000 Sets
Price:	USD 0.015 - 0.07 / Set
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	2500000 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Sizes:

6mm,8mm,10mm

Screw:

SS304 Included

Application:

Outdoor,wet,marine,bathroom

Installation:

Open Kit,drill,pre-screw,hammer,drive

Body:

Tapered+wings+expansion

Anchor Type:

Kit Winged Anchor Set

Material:

Nylon PA6+SS304 Screw

Kit Contents:

Anchor+screw Per Set

Corrosion Rating:

Full Stainless System

Packaging Details:

WNRLN blister card or polybag with matching screw, export carton

Highlight:

installation plastic expansion plugs

installation plastic expansion screw

pre assembled plastic expansion plugs

Product Description

Pre-Assembled Stainless Screw Kit Winged Nylon Expansion Anchor Complete Set for Outdoor Wet Area Wall Installation

Product Description

The Pre-Assembled Stainless Screw Kit Winged Nylon Expansion Anchor is a complete fixing set that includes a matched 304 stainless steel screw pre-packaged with each nylon anchor in a single retail-ready unit. This eliminates separate procurement and compatibility guesswork, ensuring every anchor is paired with a correctly sized, corrosion-resistant stainless screw for full-system rust protection.

The winged nylon PA6 anchor body features the side retractable wing that deploys as the supplied stainless screw is driven in, forming a barb lock against the borehole wall. The smooth tapered nose guides the anchor into the hole for hammer-set insertion. The pre-alignment collar accepts 2-3 pre-turns of the included screw, and the complete kit is ready to use straight from the package.

The 304 stainless steel screw provides complete corrosion resistance for outdoor, bathroom, marine, and wet-area installations where standard zinc-plated or black phosphate screws would eventually rust and stain the wall surface.

Features

Complete Matched Kit: Each anchor comes pre-packaged with a correctly sized 304 stainless steel screw, eliminating separate procurement and compatibility guesswork.

Full-System Corrosion Protection: Nylon PA6 anchor + 304 stainless steel screw = completely rust-proof system for outdoor, bathroom, coastal, and wet-area installations.

Retail-Ready Packaging: Available in blister cards for retail display or bulk polybags for trade distribution, with size labeling and barcode ready.

Smooth Tapered Nose: Precision-molded conical front tip guides the anchor smoothly into the drilled hole during hammer insertion, reducing insertion resistance and preventing body splitting or flaring at the collar.

Side Retractable Wings: Collapsible wing tabs molded into one side of the anchor body deploy outward when the screw is driven in, forming a positive barb lock against the borehole wall that prevents the anchor from rotating or backing out under load.

Technical Parameters

General Information
Product Name	Pre-Assembled Stainless Screw Kit Winged Nylon Anchor
Anchor Material	Nylon PA6 engineering grade
Screw Material	304 stainless steel (A2 grade)
Body Design	Tapered nose + side wing + expansion sleeve
Color	Natural/White/Grey (anchor); Silver (screw)
Kit Contents	1x nylon anchor + 1x matched SS304 screw per set
Dimensions & Compatibility
Kit Sizes	6x40mm, 8x50mm, 10x60mm
Screw Diameter	4.5mm (M6), 5.5mm (M8), 7mm (M10)
Screw Head	Countersunk Phillips
Drill Bit Diameter	6mm, 8mm, 10mm to match anchor
Min Drill Hole Depth	50mm - 70mm
Installation
Method	Drill → clean dust → pre-screw 2-3 turns with included screw → insert tapered tip → hammer flush → drive screw
Tool	Hammer drill + claw hammer + Phillips screwdriver or power driver
Key Feature	Pre-matched kit with stainless screw for full-system corrosion protection
Performance
Pull-Out (M8 Kit Concrete)	75 kg
Pull-Out (M10 Kit Brick)	55 kg
Screw Corrosion Rating	304 SS - salt spray tested 200h
Temperature Range	-20°C to +80°C
Environmental Resistance	Full system rust-free, acid/alkali/coastal resistant
Compliance	RoHS Compliant, REACH Compliant
Standards	ISO 9001:2015
Application
Applicable Substrates	Concrete, solid brick, stone, blockwork, plasterboard
Common Applications	Outdoor lights, bathroom grab bars, coastal property fixing, gate and fence hardware, deck and balcony brackets, marine dock fixtures
Usage Restriction	Use included stainless screw only; do not substitute with non-stainless for outdoor use
Packaging
Retail Packaging	Blister card with Euro-slot (10/20/50 sets)
Trade Packaging	Polybag (100/200 sets per bag)
Bulk Packaging	Export-grade corrugated carton
Certifications	ISO 9001:2015

Pre Assembled Stainless Plastic Expansion Screw For Outdoor Wet Area Wall Installation

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic expansion anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic expansion anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall; pre-drilling is required for solid concrete and brick substrates.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
