Plastic Expansion Bolt
Created with Pixso.

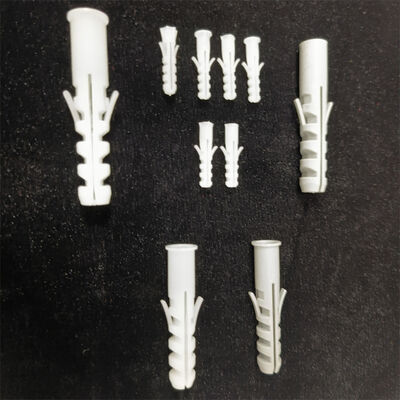

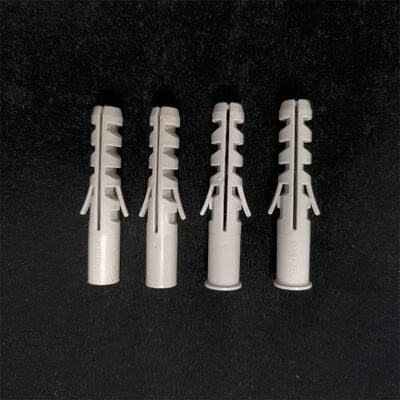

Weatherproof PA66 Plastic Expansion Anchor Lock Sleeve For Corrosive Coastal Fixing

Weatherproof PA66 Plastic Expansion Anchor Lock Sleeve For Corrosive Coastal Fixing

Brand Name: CangRui
Model Number: Plastic Expansion Anchor
MOQ: 3000 Pieces
Price: USD 0.015 - 0.07 / Piece
Payment Terms: T/T,L/C,PayPal,Western Union
Supply Ability: 2000000 Pieces per Month
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Sizes:
6mm,8mm,10mm
Screw:
Stainless Steel 4-7mm
Application:
Corrosive,coastal,chemical,outdoor
Installation:
Drill,pre-screw,hammer,drive SS Screw
Body:
Standard+wings+tapered
Anchor Type:
Weatherproof PA66 Winged Anchor
Material:
PA66 Premium Nylon
Temp Range:
-30 To +120C
Chemical Rating:
Acid,alkali,solvent,salt,UV
Packaging Details:
WNRLN sealed polybag, export carton
Highlight:

pa66 plastic expansion anchor

,

weatherproof plastic expansion anchor

,

weatherproof expanding plastic screw anchors

Product Description

Weatherproof PA66 Winged Nylon Expansion Anchor Outdoor Rated Barb Lock Sleeve Plug for Corrosive Coastal Fixing




Product Description



The Weatherproof PA66 Winged Nylon Expansion Anchor is molded from premium PA66 engineering nylon for installations in chemically aggressive, high-humidity, coastal, and outdoor corrosive environments where standard nylon PA6 anchors would degrade prematurely. PA66 offers superior resistance to strong acids, alkalis, industrial solvents, salt spray, chlorine exposure, and sustained UV radiation, making it the definitive choice for marine, chemical plant, wastewater treatment, and outdoor electrical installations.



The winged barb lock mechanism operates identically to the standard PA6 version but in a material platform rated for continuous exposure to harsh conditions. The side wing deploys as the screw is driven in, forming a barb lock that maintains its mechanical integrity even after years of chemical and UV exposure that would embrittle standard nylon.



Pair with stainless steel screws for a complete corrosion-proof anchoring system. The smooth tapered nose guides the PA66 anchor into the drill hole for hammer-set insertion, and the pre-alignment collar accepts 2-3 pre-turns for single-unit handling. PA66 also maintains structural integrity at sustained temperatures up to 120°C, outperforming standard PA6 in hot industrial and direct-sunlight applications.



Features





PA66 Engineering Nylon: Upgraded from standard PA6 for superior resistance to strong acids, alkalis, industrial solvents, chlorine, salt spray, and UV radiation; designed for the most demanding corrosive environments.

Full-System Corrosion Resistance: Pair with stainless steel screws for a completely rust-proof anchoring system suitable for continuous outdoor exposure, marine salt air, pool chemicals, and chemical processing environments.

High-Temperature Endurance: PA66 maintains structural integrity at sustained temperatures up to 120°C, outperforming standard PA6 in hot industrial, direct-sunlight, and high-temperature process applications.

Smooth Tapered Nose: Precision-molded conical front tip guides the anchor smoothly into the drilled hole during hammer insertion, reducing insertion resistance and preventing body splitting or flaring at the collar.

Pre-Screw Alignment Collar: The anchor collar is designed to accept 2-3 turns of the screw before insertion, allowing the installer to pre-align the screw and anchor as a single unit for faster, more accurate placement.


Technical Parameters





General Information
Product Name Weatherproof PA66 Winged Nylon Expansion Anchor
Material PA66 engineering nylon (premium grade)
Body Design Standard sleeve + wing + tapered nose
Color Natural, Black
Dimensions & Compatibility
Sizes 6mm, 8mm, 10mm
Anchor Length 30mm, 40mm, 50mm, 60mm
Drill Bit Diameter Match anchor diameter
Screw Compatibility (Recommended) Stainless steel wood screws 4-7mm
Min Drill Hole Depth 40mm - 70mm
Installation
Method Drill → clean dust → pre-screw 2-3 turns → insert tapered tip → hammer flush → drive stainless screw
Tool Hammer drill + claw hammer + manual screwdriver or power driver
Key Feature PA66 weatherproof material for corrosive outdoor and industrial environments
Fastening Type Through-fastening
Performance
Pull-Out (M8 Concrete) 70 kg
Pull-Out (M10 Concrete) 95 kg
Temperature Range (Continuous) -30°C to +120°C
Chemical Resistance Acid, alkali, solvent, chlorine, salt spray, UV
Environmental Resistance Rust-free, marine grade, industrial chemical rated
Compliance RoHS Compliant, REACH Compliant
Standards ISO 9001:2015
Application
Applicable Substrates Concrete, solid brick, stone (corrosive environments)
Common Applications Chemical plant fixing, coastal marine installation, swimming pool fixtures, wastewater treatment, outdoor electrical, sewer infrastructure, offshore platform, desalination plant
Usage Restriction Pair with stainless steel screws for full-system chemical resistance
Packaging
Standard Packaging 100 pieces per sealed polybag
Bulk Packaging Export-grade corrugated carton
Screws Included Screws sold separately (stainless steel recommended)
Certifications ISO 9001:2015



Weatherproof PA66 Plastic Expansion Anchor Lock Sleeve For Corrosive Coastal FixingWeatherproof PA66 Plastic Expansion Anchor Lock Sleeve For Corrosive Coastal Fixing

Weatherproof PA66 Plastic Expansion Anchor Lock Sleeve For Corrosive Coastal Fixing

Weatherproof PA66 Plastic Expansion Anchor Lock Sleeve For Corrosive Coastal Fixing





FAQ



Do you have full standard sizes in stock for plastic expansion anchors?


We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.



What is the material and load-bearing capacity of your Plastic expansion anchors?


Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.



What types of walls and base materials can this Plastic expansion anchor be used for?


It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall; pre-drilling is required for solid concrete and brick substrates.



What is your MOQ and wholesale price discount policy?


Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.



What is your production lead time and mass supply capacity?


Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.



Can you customize size, color, packaging and OEM private label?


We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.



Do you support mixed batch with other fastener products?


Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.



Can I get free samples for quality checking?


Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
