Ceiling Overhead Winged Nylon Plastic Expansion Plugs Lock Sleeve 6mm 8mm 10mm

Name: Ceiling Overhead Winged Nylon Plastic Expansion Plugs Lock Sleeve 6mm 8mm 10mm
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Expansion Anchor
Price: 0.01 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Expansion Anchor
MOQ:	5000 Pieces
Price:	USD 0.008 - 0.04 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	4000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Sizes:

6mm,8mm,10mm

Screw:

Wood/chipboard 4-6mm

Application:

Ceiling,overhead,concrete

Installation:

Drill Up,pre-screw,hammer Up,drive

Body:

Tapered+wings+expansion

Anchor Type:

Ceiling Overhead Winged Anchor

Material:

Nylon PA6

Install Direction:

Overhead Upward

Grip Feature:

Anti-drop Barb Retention

Packaging Details:

WNRLN polybag, export carton

Highlight:

nylon plastic expansion plugs

plastic expansion plugs lock sleeve

winged plastic expansion nail plugs

Product Description

Ceiling Overhead Winged Nylon Expansion Anchor Barb Lock Sleeve Plug for Concrete Ceiling Light Fixture Fixing

Product Description

The Ceiling Overhead Winged Nylon Expansion Anchor is specifically engineered for upward overhead installation into concrete ceilings. The anchor features an enhanced collar grip ring and a slightly flared wing profile that provides immediate passive retention in the drill hole after hammer insertion, preventing the anchor from dropping out before the screw can be driven in.

The side wing deploys when the screw is driven upward, forming a barb lock in the concrete ceiling substrate that resists both gravity pull and vibration from ceiling-mounted equipment such as light fixtures, ceiling fans, smoke detectors, and HVAC diffusers. The pre-alignment collar accepts 2-3 pre-turns of the screw for single-unit overhead handling.

Molded from high-toughness nylon PA6, the anchor remains permanently rust-free with acid and alkali resistance for reliable performance in ceiling environments. The collar design includes a slightly enlarged flange that prevents over-insertion into the ceiling hole, ensuring consistent embedment depth across multiple mounting points.

Features

Anti-Drop Passive Retention: Enhanced collar grip ring and flared wing profile provide immediate passive friction retention in the drill hole after hammer insertion, preventing the anchor from dropping out before screw driving.

Gravity-Compensating Wing Lock: Side barb deploys upward into the concrete ceiling substrate, creating a mechanical lock that resists both gravity pull and vibration from ceiling-mounted equipment.

Smooth Tapered Nose: Precision-molded conical front tip guides the anchor smoothly into the drilled hole during hammer insertion, reducing insertion resistance and preventing body splitting or flaring at the collar.

Pre-Screw Alignment Collar: The anchor collar is designed to accept 2-3 turns of the screw before insertion, allowing the installer to pre-align the screw and anchor as a single unit for faster, more accurate placement.

Overhead Pre-Assembly Ready: Screw-and-anchor can be pre-assembled as a single unit at waist level before reaching overhead, eliminating the difficulty of aligning loose components above head height.

Technical Parameters

General Information
Product Name	Ceiling Overhead Winged Nylon Expansion Anchor
Material	Nylon PA6 engineering grade
Body Design	Tapered nose + enhanced collar ring + side wing + expansion sleeve
Color	Natural, White, Grey, Custom
Dimensions & Compatibility
Sizes	6mm, 8mm, 10mm
Anchor Length	30mm, 40mm, 50mm, 60mm
Drill Bit Diameter	Match anchor diameter
Screw Compatibility	Wood screws 4-6mm / Chipboard 4.5-6mm
Min Drill Hole Depth	40mm - 70mm
Installation
Method	Drill upward → clean dust → pre-screw 2-3 turns → insert tapered tip upward → hammer flush → drive screw upward
Tool	Hammer drill + claw hammer + screwdriver or power driver
Key Feature	Anti-drop collar retention for overhead ceiling installation
Fastening Type	Through-fastening (overhead)
Performance
Pull-Out (M8 Concrete Ceiling)	70 kg
Pull-Out (M10 Concrete Ceiling)	90 kg
Immediate Retention Force	2.5 kg drop prevention
Temperature Range	-20°C to +80°C
Environmental Resistance	Rust-free, acid/alkali/moisture resistant
Compliance	RoHS Compliant, REACH Compliant
Standards	ISO 9001:2015
Application
Applicable Substrates	Concrete ceiling, concrete soffit, solid brick ceiling
Common Applications	Ceiling lights, smoke detectors, ceiling fans, HVAC diffusers, suspended ceiling supports, overhead conduit clips
Usage Restriction	Ensure concrete ceiling is structurally sound; not for suspended ceiling tiles without structural backing
Packaging
Standard Packaging	100 / 200 pieces per polybag
Bulk Packaging	Export-grade corrugated carton
Screws Included	Screws sold separately
Certifications	ISO 9001:2015

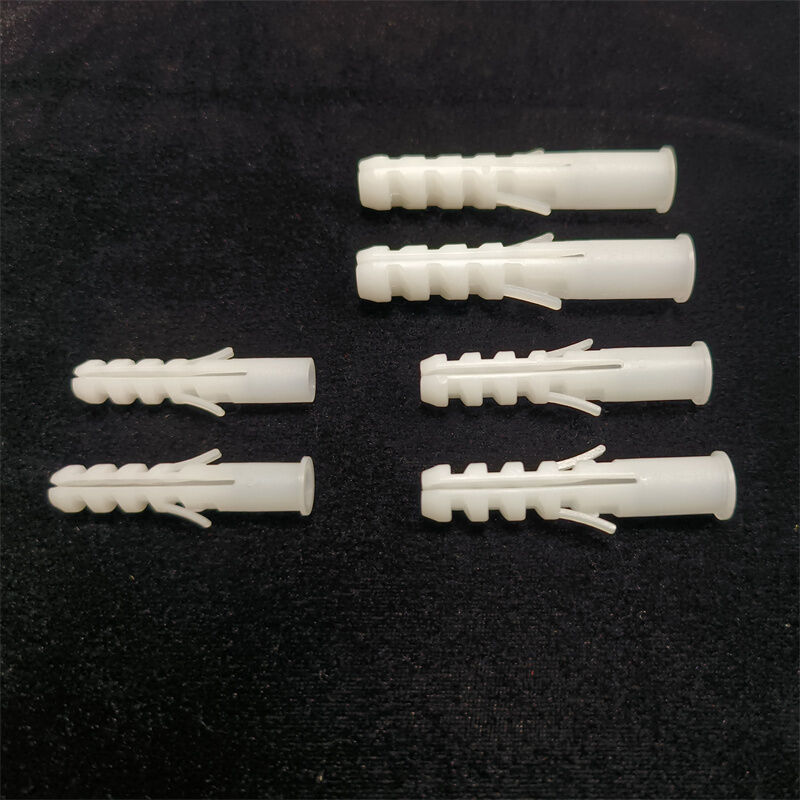

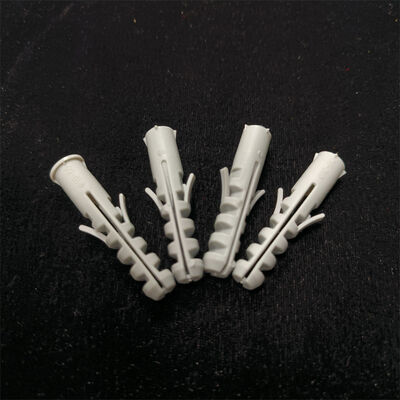

Ceiling Overhead Winged Nylon Plastic Expansion Plugs Lock Sleeve 6mm 8mm 10mm

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic expansion anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic expansion anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall; pre-drilling is required for solid concrete and brick substrates.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
