Plastic Expansion Bolt
Created with Pixso.

Bulk PE Plastic Expansion Anchor Lock Sleeve Plug For High Volume Construction Fixing

Bulk PE Plastic Expansion Anchor Lock Sleeve Plug For High Volume Construction Fixing

Brand Name: CangRui
Model Number: Plastic Expansion Anchor
MOQ: 10000 Pieces
Price: USD 0.003 - 0.018 / Piece
Payment Terms: T/T,L/C,PayPal,Western Union
Supply Ability: 10000000 Pieces per Month
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Sizes:
6mm,8mm,10mm
Screw:
Wood 4-6mm
Application:
Volume,bulk,construction
Installation:
Drill,pre-screw,hammer,drive
Body:
Standard+wings+tapered
Anchor Type:
Economy PE Winged Anchor
Material:
PE Polyethylene
Load Class:
Light-medium Duty
Supply Volume:
10M Pcs/month
Packaging Details:
Bulk polybag, economy export carton
Highlight:

pe plastic expansion anchor

,

plastic expansion anchor lock sleeve

,

bulk expanding plastic screw anchors

Product Description

Economy Bulk PE Winged Plastic Expansion Anchor Value Pack Barb Lock Sleeve Plug for High Volume Construction Fixing




Product Description



The Economy Bulk PE Winged Plastic Expansion Anchor is a cost-optimized polyethylene anchor designed for high-volume construction and wholesale distribution where reliable winged barb lock performance at the lowest possible unit cost is the priority. Molded from durable virgin PE with the same winged barb geometry as premium nylon anchors, the economy version delivers consistent anti-rotation and anti-pullback performance at a substantially lower price point.



The side wing deploys on screw driving to form a barb lock against the borehole wall, preventing anchor rotation and pull-back in light to medium duty applications. The smooth tapered nose guides the PE anchor cleanly into the drill hole for hammer-set insertion. The pre-alignment collar accepts 2-3 pre-turns of the screw for single-unit handling.



The PE material provides good toughness and tensile strength for the target application range, is completely rust-free, and resists acid and alkali degradation. The production output of 10 million pieces per month supports large-scale residential and commercial construction projects, wholesale distribution, and bulk container export orders.



Features





Cost-Optimized PE Formula: Virgin polyethylene material delivers dependable winged barb lock performance at a significantly lower unit cost compared to nylon PA6, ideal for high-volume bulk procurement.

Same Winged Barb Geometry: Identical side wing deployment mechanism as premium nylon versions, providing anti-rotation and anti-pullback protection in light to medium duty applications.

Mass Production Supply: 10 million pieces per month output supports large-scale construction projects, national wholesale distribution, and bulk container export orders.

Smooth Tapered Nose: Precision-molded conical front tip guides the anchor smoothly into the drilled hole during hammer insertion, reducing insertion resistance and preventing body splitting or flaring at the collar.

Rust-Free Chemical Resistant PE: Polyethylene body will never rust or corrode; good acid and alkali resistance for indoor and sheltered outdoor environments.


Technical Parameters





General Information
Product Name Economy Bulk PE Winged Plastic Expansion Anchor
Material PE (polyethylene) virgin grade
Body Design Standard sleeve + wing + tapered nose
Color Natural, White
Dimensions & Compatibility
Sizes 6mm, 8mm, 10mm
Anchor Length 30mm, 40mm, 50mm
Drill Bit Diameter Match anchor diameter
Screw Compatibility Wood screws 4-6mm / Chipboard screws 4-5mm
Min Drill Hole Depth 40mm - 60mm
Installation
Method Drill → clean dust → pre-screw 2-3 turns → insert tapered tip → hammer flush → drive screw
Tool Hammer drill + claw hammer + manual screwdriver or power driver
Key Feature Cost-optimized PE with winged barb lock for high-volume bulk construction
Fastening Type Through-fastening
Performance
Pull-Out (M6 Concrete) 45 kg
Pull-Out (M8 Concrete) 60 kg
Pull-Out (M8 Solid Brick) 40 kg
Temperature Range -10°C to +70°C
Environmental Resistance Rust-free, acid resistant, alkali resistant
Compliance RoHS Compliant, REACH Compliant
Standards ISO 9001:2015
Application
Applicable Substrates Solid brick, concrete, plasterboard
Common Applications Residential construction, commercial drywall, electrical conduit clips, cable management, skirting board, door trim, bulk wholesale distribution
Usage Restriction PE rated for light-medium load indoor and sheltered outdoor; not for heavy structural or prolonged UV exposure
Packaging
Standard Packaging 500 / 1000 pieces per bulk polybag
Bulk Packaging Economy export-grade corrugated carton, 30-60 bags per carton
Screws Included Screws sold separately
Certifications ISO 9001:2015

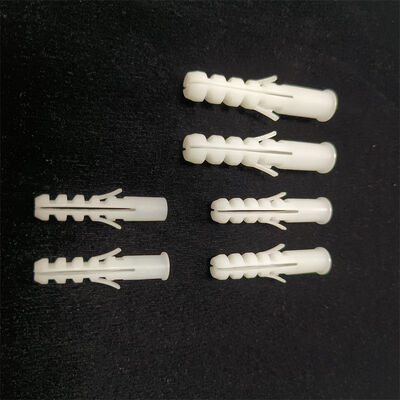

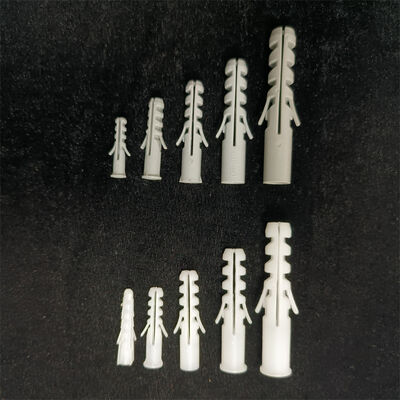

Bulk PE Plastic Expansion Anchor Lock Sleeve Plug For High Volume Construction FixingBulk PE Plastic Expansion Anchor Lock Sleeve Plug For High Volume Construction Fixing



Bulk PE Plastic Expansion Anchor Lock Sleeve Plug For High Volume Construction Fixing

Bulk PE Plastic Expansion Anchor Lock Sleeve Plug For High Volume Construction Fixing







FAQ



Do you have full standard sizes in stock for plastic expansion anchors?


We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.



What is the material and load-bearing capacity of your Plastic expansion anchors?


Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.



What types of walls and base materials can this Plastic expansion anchor be used for?


It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall; pre-drilling is required for solid concrete and brick substrates.



What is your MOQ and wholesale price discount policy?


Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.



What is your production lead time and mass supply capacity?


Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.



Can you customize size, color, packaging and OEM private label?


We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.



Do you support mixed batch with other fastener products?


Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.



Can I get free samples for quality checking?


Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
