Extended Barb Lock Sleeve Expansion Anchor Plastic For Door Window Solid Wall Installation

Name: Extended Barb Lock Sleeve Expansion Anchor Plastic For Door Window Solid Wall Installation
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Expansion Anchor
Price: 0.01 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Expansion Anchor
MOQ:	3000 Pieces
Price:	USD 0.01 - 0.05 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	3000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Sizes:

8mm,10mm

Screw:

Wood/concrete 5-8mm

Application:

Door,window,frame Fixing

Installation:

Drill Thru Frame,pre-screw,hammer,drive

Body:

Extended+wings+tapered

Anchor Type:

Frame Fixing Winged Anchor

Material:

Nylon PA6

Length:

70-100mm Extended

Wing Position:

Deep-set 20mm From Tip

Packaging Details:

WNRLN polybag, export carton

Highlight:

lock sleeve expansion anchor plastic

installation plastic expansion plugs

installation expansion anchor plastic

Product Description

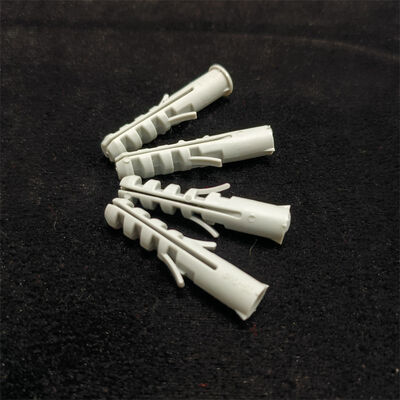

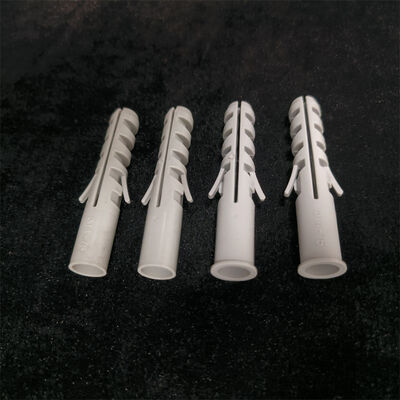

Frame Fixing Winged Nylon Expansion Anchor Extended Barb Lock Sleeve Plug for Door Window Solid Wall Installation

Product Description

The Frame Fixing Winged Nylon Expansion Anchor features an extended 70-100mm sleeve body for door frame, window frame, and structural timber anchoring into solid brick and concrete. The extra-long body penetrates through the frame material and deep into the structural wall, providing a secure through-fixing that resists repeated opening and closing forces. The side wing deploys approximately 20mm from the tip, engaging the solid substrate well behind any cavity or frame gap.

The smooth tapered nose cone guides the long sleeve cleanly into deep drill holes without jamming or folding. The pre-alignment collar allows 2-3 pre-turns of the supplied long screw, enabling single-unit insertion through the frame's pre-drilled mounting hole and into the wall behind it. Molded from high-toughness nylon PA6, the extended sleeve maintains full tensile strength along its entire length.

The material is permanently rust-free and resists acid and alkali attack from mortar, render, and environmental exposure, ensuring decades of reliable frame anchoring.

Features

Extended 70-100mm Sleeve Body: Extra-long anchor penetrates through door/window frame material and deep into the structural wall substrate for a secure through-fixing resistant to repeated opening and closing forces.

Deep-Set Wing Barb Placement: Side wing deploys approximately 20mm from the tip, engaging the solid substrate well behind any cavity or frame gap for a mechanical lock within the load-bearing wall.

Smooth Tapered Nose: Precision-molded conical front tip guides the anchor smoothly into the drilled hole during hammer insertion, reducing insertion resistance and preventing body splitting or flaring at the collar.

Pre-Screw Alignment Collar: The anchor collar is designed to accept 2-3 turns of the screw before insertion, allowing the installer to pre-align the screw and anchor as a single unit for faster, more accurate placement.

Frame-Friendly Through-Fixing: Pre-assembled screw-and-anchor alignment enables single-unit insertion through the frame's mounting hole into the wall, eliminating misalignment between frame hole and wall anchor.

Technical Parameters

General Information
Product Name	Frame Fixing Winged Nylon Expansion Anchor
Material	Nylon PA6 engineering grade
Body Design	Extended sleeve + deep-set wing + tapered nose
Color	Natural, White, Grey, Custom
Dimensions & Compatibility
Sizes	8mm, 10mm
Anchor Length	70mm, 80mm, 100mm
Drill Bit Diameter	Match anchor diameter
Screw Compatibility	Wood screws 5-7mm / Concrete screws 6-8mm
Min Drill Hole Depth	80mm - 110mm
Wing Deployment Depth	20mm from anchor tip
Installation
Method	Drill through frame into wall → clean dust → pre-screw 2-3 turns → insert through frame hole → hammer flush → drive screw
Tool	Hammer drill + claw hammer + impact driver
Key Feature	Extended body for door/window frame through-fixing with deep-set wing barb
Performance
Pull-Out (M10 Concrete)	120 kg
Pull-Out (M10 Solid Brick)	85 kg
Shear Strength	95 kg (M10 anchor)
Temperature Range	-20°C to +80°C
Environmental Resistance	Rust-free, acid resistant, alkali resistant, moisture, mortar compatible
Compliance	RoHS Compliant, REACH Compliant
Standards	ISO 9001:2015
Application
Applicable Substrates	Concrete, solid brick, stone (through door/window frame)
Common Applications	Door frame anchoring, window frame installation, structural timber to masonry, gate post fixing, garage door track mounting
Usage Restriction	Ensure minimum 60mm embedment into solid substrate beyond frame thickness
Packaging
Standard Packaging	100 pieces per polybag
Bulk Packaging	Export-grade corrugated carton
Screws Included	Screws sold separately
Certifications	ISO 9001:2015

Extended Barb Lock Sleeve Expansion Anchor Plastic For Door Window Solid Wall Installation

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic expansion anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic expansion anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall; pre-drilling is required for solid concrete and brick substrates.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
