High Pull Out Nylon Spiral Anchors Insulation Wall Plugs Self Drilling For Gypsum Board

Name: High Pull Out Nylon Spiral Anchors Insulation Wall Plugs Self Drilling For Gypsum Board
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plug Insulation Fixings
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plug Insulation Fixings
MOQ:	1000 Pieces
Price:	USD 0.02 - 0.08 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	3000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Nylon Screw-In Plastic Spiral Expansion Anchor For Gypsum Board

Material:

High-Strength Nylon PA6

Anchor Type:

Self-Drilling Screw-In Spiral Expansion Anchor

Suitable Substrate:

Gypsum Board, Plasterboard, Drywall

Diameter:

8 Mm, 10 Mm, 12 Mm

Length:

30 Mm - 50 Mm

Installation Method:

Direct Screw-In Without Pre-Drilling In Gypsum Board

Application:

Gypsum Board Fixture, Ceiling Light, Lightweight Shelf, Wall Decoration

Packaging Details:

1000 pcs/bag, export carton

Highlight:

insulation wall plugs self drilling

nylon insulation wall plugs

nylon rockwool insulation fixings

Product Description

Nylon Screw In Plastic Spiral Expansion Anchors Self Drilling Insulation Fixing Plugs for Gypsum Board Wall

Product Description

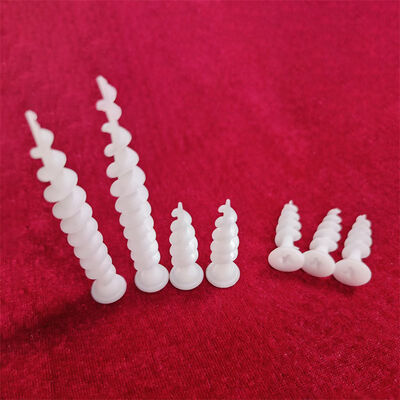

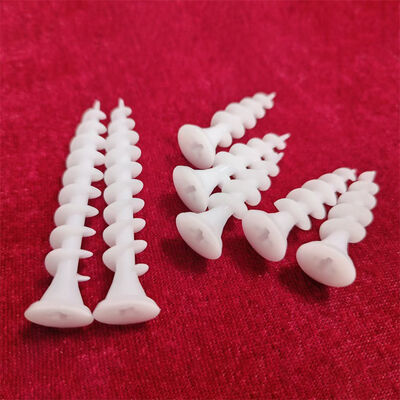

The Nylon Screw-In Plastic Spiral Expansion Anchor is a self-drilling fastener specifically designed for gypsum board, plasterboard, and drywall applications where conventional expansion anchors may tear or crack the board face. The anchor features a sharp self-drilling tip and deep spiral threads that cut directly into the gypsum board material without the need for pre-drilling in most applications. When screwed into the gypsum board, the spiral thread profile creates a secure mechanical lock within the board core material, providing reliable pull-out resistance.

Manufactured from high-strength nylon PA6, the anchor is lightweight yet durable, with excellent resistance to corrosion and aging. The spiral design allows for easy installation with a standard screwdriver or power screwdriver, making it ideal for professional gypsum board installers and DIY users alike. Available in 8 mm, 10 mm, and 12 mm diameters with lengths from 30 mm to 50 mm, it covers common gypsum board anchoring requirements for ceiling lights, lightweight shelves, smoke detectors, and wall decorations.

Features

Self-drilling tip cuts directly into gypsum board material without the need for pre-drilling. Saves installation time and eliminates the mess of drilling into gypsum board. Spiral thread profile creates a secure mechanical lock within the board core.

Manufactured from high-strength nylon PA6 for excellent durability and corrosion resistance. Lightweight design that does not add significant load to the gypsum board. Resistant to aging even after years of service in indoor environments.

Simple screw-in installation with a standard screwdriver or power screwdriver. No special tools required – just position the anchor and screw it into the board. Suitable for professional gypsum board installers and DIY home improvement use.

Available in 8 mm, 10 mm, and 12 mm diameters with 30 mm to 50 mm body lengths. Compatible with standard self-tapping screws for fixture attachment. Suitable for standard gypsum board thicknesses from 9.5 mm to 15 mm.

Ideal for ceiling light mounting, lightweight shelf fixing, smoke detector installation, wall decoration hanging, and general gypsum board anchoring. A clean and reliable fixing solution for gypsum board applications.

Technical Parameters

General Information
Product Name	Nylon Screw-In Plastic Spiral Expansion Anchor for Gypsum Board
Material	High-Strength Nylon PA6
Anchor Type	Self-Drilling Screw-In Spiral Expansion Anchor
Head Type	Countersunk Head with Screw Drive
Substrate	Gypsum Board, Plasterboard, Drywall
Dimensions
Anchor Diameter (∅)	8 mm, 10 mm, 12 mm
Anchor Length	30 mm – 50 mm
Screw Compatibility	M4 / M5 (self-tapping screws)
Suitable Board Thickness	9.5 mm – 15 mm
Spiral Thread Depth	2.0 mm – 3.0 mm (deep thread for strong board grip)
Installation
Installation Method	Screw-in – position anchor, screw directly into gypsum board with screwdriver
Working Principle	Self-drilling tip penetrates board, spiral thread cuts into board core creating mechanical lock
Temperature Range	-40°C to +80°C
Matching & Application
Recommended Screws	Standard self-tapping screws (countersunk head)
Applications	Ceiling lights, lightweight shelves, smoke detectors, wall decorations, gypsum board fixtures
Usage Scope	Indoor gypsum board and drywall anchoring

High Pull Out Nylon Spiral Anchors Insulation Wall Plugs Self Drilling For Gypsum Board

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your spiral drywall anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this plastic spiral anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
