Thin Profile Nylon Thermal Insulation Fixing Plug Compact Spiral Lock Self Drilling 6 Mm 8 Mm

Name: Thin Profile Nylon Thermal Insulation Fixing Plug Compact Spiral Lock Self Drilling 6 Mm 8 Mm
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plug Insulation Fixings
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plug Insulation Fixings
MOQ:	1000 Pieces
Price:	USD 0.02 - 0.08 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	3000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Nylon Screw-In Plastic Spiral Expansion Anchor Thin Profile For Shallow Depth Panel

Material:

High-Strength Nylon PA6

Anchor Type:

Thin Profile Screw-In Spiral Expansion Anchor For Shallow Depth Panels

Suitable Substrate:

Thin Panel, Shallow Depth Board, Fiber Cement Board, Calcium Silicate Board

Diameter:

6 Mm, 8 Mm

Length:

15 Mm - 25 Mm

Installation Method:

Pre-Drill Small Hole Or Direct Screw-In, Suitable For Shallow Cavity

Application:

Thin Wall Panel, Shallow Depth Board Fixture, Cladding Fixing, Decorative Board Anchoring

Packaging Details:

1000 pcs/bag, export carton

Highlight:

nylon thermal insulation fixing plug

nylon insulation fixings

spiral insulation fixings

Product Description

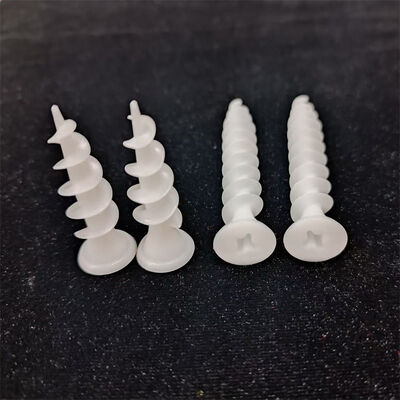

Nylon Screw In Plastic Spiral Expansion Anchors Self Drilling Insulation Fixing Plugs Thin Profile for Shallow Depth Panel

Product Description

The Thin Profile Nylon Screw-In Plastic Spiral Expansion Anchor is engineered for shallow depth panel applications where standard anchor lengths would protrude through the back of the panel. With ultra-short body lengths of just 15 mm to 25 mm and diameters of 6 mm and 8 mm, this anchor provides a reliable fixing point in thin panels, fiber cement board, calcium silicate board, and other shallow-depth substrates where standard anchors are too long. The compact spiral thread profile is designed to achieve maximum grip within the limited available material depth.

Ideal for thin wall panel fixing, cladding attachment, decorative board anchoring, and any application where the anchor must not penetrate through the back face of a thin panel. The nylon PA6 material provides a lightweight yet strong fixing point that will not crack or split thin panel materials. Available in 6 mm and 8 mm diameters with 15 mm to 25 mm lengths, it covers the most common thin panel anchoring requirements in construction and interior finishing.

Features

Ultra-short body lengths of 15 mm to 25 mm for shallow depth panel applications. Provides maximum holding strength within the thin material without protruding through the back. Compact spiral thread profile designed for effective grip in limited material depth.

Available in 6 mm and 8 mm diameters suitable for thin panels and shallow-depth boards. Small anchor footprint minimizes panel surface damage and cracking risk. Accepts standard small self-tapping screws for lightweight fixture attachment.

Nylon PA6 material is lightweight and will not overload thin panels with anchor weight. Will not crack fiber cement board, calcium silicate board, or thin decorative panels during installation. Corrosion-resistant and suitable for indoor and protected exterior applications.

Simple screw-in installation with a standard screwdriver. Can be installed with a small pilot hole or directly screwed into softer panel materials. The compact spiral thread creates a secure mechanical lock within the thin material depth.

Ideal for thin wall panels, cladding fixing, decorative board anchoring, fiber cement and calcium silicate board fixtures, and shallow-depth panel applications. A specialized thin-profile anchoring solution for shallow depth board materials.

Technical Parameters

General Information
Product Name	Thin Profile Nylon Screw-In Plastic Spiral Expansion Anchor for Shallow Depth Panel
Material	High-Strength Nylon PA6
Anchor Type	Thin Profile Screw-In Spiral Expansion Anchor
Head Type	Countersunk Low-Profile Head
Substrate	Thin Panel, Fiber Cement Board, Calcium Silicate Board, Shallow Depth Board
Dimensions
Anchor Diameter (∅)	6 mm, 8 mm
Anchor Length	15 mm – 25 mm
Screw Compatibility	M3 / M4 (small self-tapping screws)
Suitable Panel Depth	As thin as 15 mm (dependent on screw length selection)
Pilot Hole Required	Small pilot hole for fiber cement and hard thin panels
Installation
Installation Method	Screw-in – pre-drill small pilot hole if needed, screw anchor in with screwdriver
Working Principle	Compact spiral thread provides grip within shallow material depth without protruding
Temperature Range	-40°C to +80°C
Matching & Application
Recommended Screws	Small self-tapping screws (M3 / M4, 12 mm – 20 mm length)
Applications	Thin wall panels, cladding, decorative boards, fiber cement board, calcium silicate board fixtures
Usage Scope	Shallow depth panel anchoring (indoor and protected exterior)

Thin Profile Nylon Thermal Insulation Fixing Plug Compact Spiral Lock Self Drilling 6 Mm 8 Mm

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your spiral drywall anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this plastic spiral anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
