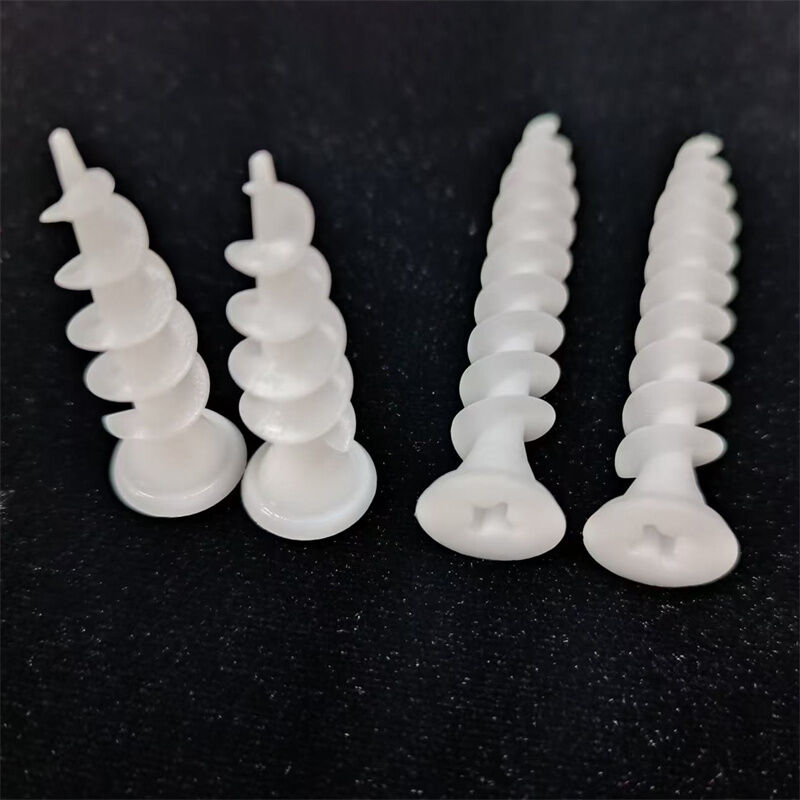

Large Diameter Nylon Spiral Plug Insulation Fixings Lock Self Drilling

Name: Large Diameter Nylon Spiral Plug Insulation Fixings Lock Self Drilling
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plug Insulation Fixings
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plug Insulation Fixings
MOQ:	1000 Pieces
Price:	USD 0.02 - 0.08 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	3000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Nylon Screw-In Plastic Spiral Expansion Anchor Large Diameter For Heavy Load

Material:

High-Strength Nylon PA6 (Thickened Wall)

Anchor Type:

Large-Diameter Screw-In Spiral Expansion Anchor For Heavy Load Applications

Suitable Substrate:

Concrete, Solid Brick, Stone, Hard Masonry

Diameter:

14 Mm, 16 Mm, 20 Mm

Length:

50 Mm - 120 Mm

Installation Method:

Pre-Drill Matched Hole, Screw Anchor In With Hex Driver Or Power Screwdriver

Application:

Heavy Shelving Support, Large Wall Cabinet, Structural Bracket, Gate Hinge, Heavy Equipment Mounting

Packaging Details:

1000 pcs/bag, export carton

Highlight:

nylon insulation fixings

nylon insulation wall plugs

spiral insulation fixings

Product Description

Nylon Screw In Plastic Spiral Expansion Anchors Self Drilling Insulation Fixing Plugs Large Diameter for Heavy Load

Product Description

The Large Diameter Nylon Screw-In Plastic Spiral Expansion Anchor is engineered for heavy load applications in concrete, solid brick, stone, and hard masonry substrates where standard-diameter anchors provide insufficient holding capacity. With extra-large diameters of 14 mm, 16 mm, and 20 mm and a thickened nylon PA6 wall, this anchor delivers substantially higher pull-out and shear resistance for structural and heavy equipment mounting applications. The deep spiral thread profile provides maximum mechanical interlock with the substrate borehole wall for critical anchoring points.

Designed for heavy shelving support, large wall cabinet installation, structural bracket anchoring, gate hinge and fence post mounting, and heavy equipment support, this large-diameter anchor is the high-capacity option in the nylon screw-in anchor range. Available in lengths from 50 mm to 120 mm to accommodate the deeper embedment required for high-load applications. Manufactured to ISO 9001:2015 standards with extra quality checks on thread profile consistency and wall thickness.

Features

Extra-large diameters of 14 mm, 16 mm, and 20 mm provide substantially higher load capacity. Thickened nylon PA6 wall handles higher screw torque and expansion force without deformation. Deep spiral thread profile ensures maximum mechanical interlock for critical anchoring points.

Suitable for heavy load applications that exceed the capacity of standard 6-12 mm anchors. Provides pull-out resistance approaching that of metal expansion bolts in suitable substrates. Ideal for structural bracket mounting and heavy equipment support where anchor failure is not acceptable.

Screw-in installation using a hex driver or power screwdriver for high-torque driving. Pre-drill the recommended hole size, then drive the anchor in with a power screwdriver. The spiral threads self-tap into the hard substrate borehole wall during installation.

Available in lengths from 50 mm to 120 mm for deeper embedment and higher capacity. Longer anchor body provides more thread engagement length and proportionally higher pull-out resistance. Select anchor length based on substrate thickness and required load capacity.

Ideal for heavy shelving supports, large wall cabinet installation, structural bracket anchoring, gate hinge and fence post mounting, and heavy equipment support. A high-capacity nylon screw-in anchoring solution for structural and industrial applications.

Technical Parameters

General Information
Product Name	Large Diameter Nylon Screw-In Plastic Spiral Expansion Anchor for Heavy Load
Material	High-Strength Nylon PA6 (Thickened Wall)
Anchor Type	Large-Diameter Screw-In Spiral Expansion Anchor
Head Type	Countersunk Head with Hex Drive
Substrate	Concrete, Solid Brick, Stone, Hard Masonry
Dimensions
Anchor Diameter (∅)	14 mm, 16 mm, 20 mm (large diameter sizes)
Anchor Length	50 mm – 120 mm
Screw Compatibility	M8 / M10 / M12 (matching screws)
Pre-drilled Hole Diameter	1 mm smaller than anchor OD (for thread engagement)
Effective Anchoring Depth	≥ 40 mm into concrete for rated load
Installation
Installation Method	Screw-in with hex driver – pre-drill hole, drive anchor in with power screwdriver or hex key
Working Principle	Deep spiral threads provide full-length mechanical interlock with hard substrate
Temperature Range	-40°C to +80°C
Matching & Application
Load Capacity	Suitable for heavy static loads (anchor specific rating depends on substrate)
Applications	Heavy shelving, large wall cabinets, structural brackets, gate hinges, heavy equipment mounts
Usage Scope	Heavy-duty concrete, brick, and stone anchoring (interior and exterior)

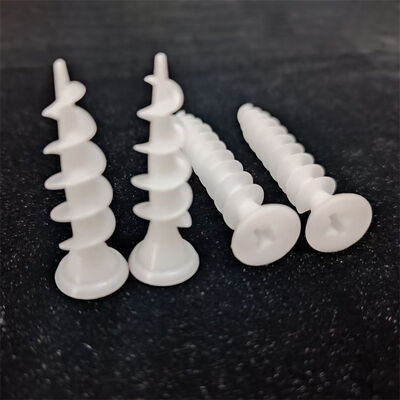

Large Diameter Nylon Spiral Plug Insulation Fixings Lock Self Drilling

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your spiral drywall anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this plastic spiral anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
