Countersunk Nylon Spiral Inserts Insulation Wall Plugs Lock Self Drilling For MDF Furniture & Wood Panel

Name: Countersunk Nylon Spiral Inserts Insulation Wall Plugs Lock Self Drilling For MDF Furniture & Wood Panel
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plug Insulation Fixings
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plug Insulation Fixings
MOQ:	1000 Pieces
Price:	USD 0.02 - 0.08 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	3000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Nylon Screw-In Plastic Spiral Expansion Anchor Countersunk Head For Wood Panel

Material:

High-Strength Nylon PA6

Anchor Type:

Screw-In Spiral Expansion Anchor With Countersunk Head

Suitable Substrate:

Wood Panel, MDF, Particle Board, Plywood, Chipboard, OSB

Diameter:

6 Mm, 8 Mm, 10 Mm

Length:

25 Mm - 50 Mm

Installation Method:

Direct Screw-In Without Pre-Drilling In Wood Panel Materials

Application:

Furniture Assembly, Cabinet Construction, Wood Panel Fixing, MDF Joinery, Shelving

Packaging Details:

1000 pcs/bag, export carton

Highlight:

countersunk insulation wall plugs

countersunk rockwool insulation fixings

nylon insulation wall plugs

Product Description

Nylon Screw In Plastic Spiral Expansion Anchors Self Drilling Insulation Fixing Plugs with Countersunk Head for Wood Panel

Product Description

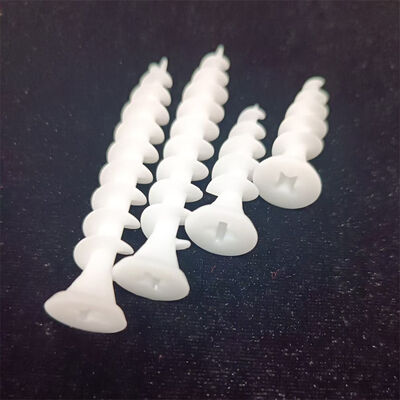

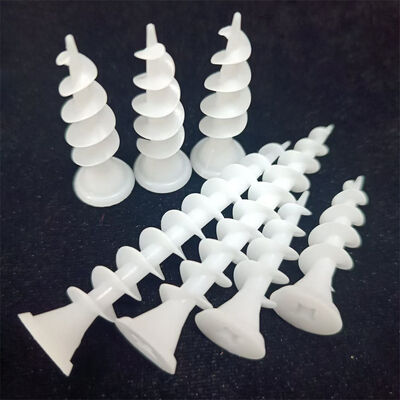

The Nylon Screw-In Plastic Spiral Expansion Anchor with Countersunk Head is specifically designed for creating secure screw fixing points in wood panel materials including MDF, particle board, plywood, chipboard, and OSB where direct screwing can strip out over time. The nylon PA6 anchor is pre-installed into a pilot hole or screwed directly into wood panels, and its spiral thread profile creates a durable threaded insert that accepts standard screws. The countersunk head design allows the anchor to sit flush with the panel surface for a clean and professional finish.

Unlike metal threaded inserts that can split wood panels during installation, the nylon material deforms slightly to accommodate wood fiber density variations without damaging the panel. Ideal for furniture assembly, cabinet construction, MDF joinery, shelving, and flat-pack furniture applications, this anchor provides a reliable screw fixing point that can withstand repeated assembly and disassembly without thread stripping. Available in 6 mm, 8 mm, and 10 mm with 25 mm to 50 mm lengths.

Features

Countersunk head design allows the anchor to sit flush with the wood panel surface. Provides a clean and professional finish for visible anchor points in furniture and joinery. Compatible with flat-head screws for a completely flush fixture installation.

Nylon PA6 material deforms slightly to accommodate wood fiber density variations. Will not split MDF, particle board, or plywood during installation unlike metal threaded inserts. Provides a durable threaded insert that withstands repeated screw insertion and removal.

Simple screw-in installation with a standard screwdriver or power screwdriver. Can be installed with or without pre-drilling depending on wood panel density. The spiral thread cuts into the wood panel material creating a secure thread path.

Available in 6 mm, 8 mm, and 10 mm diameters with 25 mm to 50 mm body lengths. Accepts standard self-tapping screws for fixture attachment after anchor installation. Suitable for wood panel thicknesses from 12 mm and above.

Ideal for furniture assembly, cabinet construction, MDF joinery, shelving, flat-pack furniture, and wood panel fixture mounting. A clean and durable threaded insert solution for wood panel and board material applications.

Technical Parameters

General Information
Product Name	Nylon Screw-In Plastic Spiral Expansion Anchor Countersunk Head for Wood Panel
Material	High-Strength Nylon PA6
Anchor Type	Screw-In Spiral Expansion Anchor with Countersunk Head
Head Type	Countersunk Flat Head (Flush Fit)
Substrate	Wood Panel, MDF, Particle Board, Plywood, Chipboard, OSB
Dimensions
Anchor Diameter (∅)	6 mm, 8 mm, 10 mm
Anchor Length	25 mm – 50 mm
Screw Compatibility	M3 / M4 / M5 (standard screws)
Suitable Panel Thickness	Min 12 mm (for full anchor embedment)
Countersunk Head Angle	90° standard countersink
Installation
Installation Method	Screw-in – position anchor, screw into wood panel with screwdriver until flush
Working Principle	Spiral threads cut into wood panel creating durable threaded insert for repeated screw use
Temperature Range	-40°C to +80°C
Matching & Application
Recommended Screws	Standard wood screws or self-tapping screws (countersunk head)
Applications	Furniture assembly, cabinet construction, MDF joinery, shelving, flat-pack furniture
Usage Scope	Wood panel and board material insert applications (indoor)

Countersunk Nylon Spiral Inserts Insulation Wall Plugs Lock Self Drilling For MDF Furniture & Wood Panel

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your spiral drywall anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this plastic spiral anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
