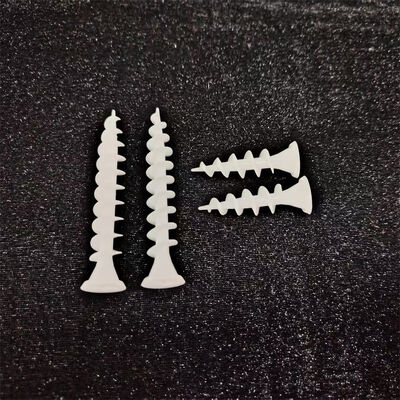

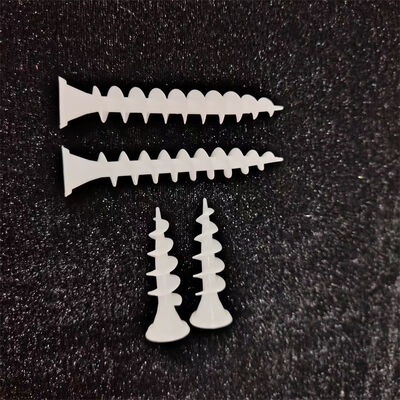

Heavy Duty Reinforced Thread Nylon Spiral External Wall Insulation Plugs For Hollow Brick Block

Name: Heavy Duty Reinforced Thread Nylon Spiral External Wall Insulation Plugs For Hollow Brick Block
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plug Insulation Fixings
Price: Negotiable USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plug Insulation Fixings
MOQ:	1000 Pieces
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	2000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Heavy Duty Reinforced Thread Nylon Spiral Expansion Anchors

Sleeve Material:

Modified Nylon PA6 High-Impact Grade

Screw Material:

Carbon Steel With Yellow Zinc Plating

Color:

White / Grey / Yellow

Diameter:

10, 12, 14, 16 Mm

Length:

25 Mm - 65 Mm

Thread Profile Depth:

1.5 Mm (30% Deeper Than Standard)

Sleeve Wall Thickness:

1.8 Mm (0.8 Mm Thicker Than Standard)

Screw Size Compatibility:

M4, M5, M6

Suitable Substrate:

Hollow Clay Brick, Hollow Concrete Block, Perforated Brick

Packaging Details:

1000 pcs/bag, export carton

Highlight:

spiral external wall insulation plugs

reinforced external wall insulation plugs

reinforced external wall insulation rawl plugs

Product Description

Heavy Duty Reinforced Thread Nylon Spiral Expansion Anchors High Grip Screw In Wall Fixing Plugs for Hollow Brick Block

Product Description

The product is a heavy-duty screw-in spiral expansion anchor specially engineered for medium to heavy load applications on hollow brick, hollow concrete block, and perforated clay brick substrates. It features a thickened nylon sleeve with reinforced double-spiral thread profile that provides significantly enhanced expansion force and pull-out resistance compared to standard spiral anchors. The deeper thread grooves and thicker sleeve walls work together to create a powerful mechanical interlock inside the void chambers of hollow substrates. When the matching high-strength screw is driven in, the sleeve expands uniformly along its entire length, distributing the load across multiple contact points within the hollow chamber for maximum holding power. This anchor is ideal for mounting wall cabinets, TV brackets, heavy shelving, bathroom fixtures, and other demanding installations.

Features

Reinforced double-spiral thread design with 30% deeper groove profile creates stronger mechanical expansion force and superior holding power in hollow brick and block substrates.

Thickened PA6 nylon sleeve walls (0.8 mm thicker than standard) prevent cracking under high installation torque, ensuring reliable heavy-duty performance for demanding applications.

Achieves stable pull-out load for medium to heavy fixtures such as wall-mounted cabinets, TV wall brackets, bathroom grab bars, kitchen shelving, and water heater brackets.

Compatible with larger M4 to M6 self-tapping screws, providing expanded load capacity options to match different fixture weight requirements.

Uniform expansion along full sleeve length ensures even load distribution across the hollow chamber, preventing point-load failure common with short standard anchors.

Technical Parameters

Product Name	Heavy Duty Reinforced Thread Nylon Spiral Expansion Anchors
Sleeve Material	Modified Nylon PA6 High-Impact Grade (Thickened Wall)
Screw Material	Carbon Steel with Yellow Zinc Plating (High Corrosion Resistance)
Color	White / Grey / Yellow
Diameter	10, 12, 14, 16 mm
Length	25 mm - 65 mm
Thread Profile Depth	1.5 mm (30% Deeper Than Standard)
Sleeve Wall Thickness	1.8 mm (0.8 mm Thicker Than Standard)
Screw Size Compatibility	M4, M5, M6
Drive Type	Phillips Head PH2 or PH3
Suitable Substrate	Hollow Clay Brick, Hollow Concrete Block, Perforated Brick, Aerated Concrete
Installation Torque Rating	Up to 4.0 Nm
MOQ	1000 Pcs
Package	1000 pcs/bag
Sample	Provide Samples Freely

Heavy Duty Reinforced Thread Nylon Spiral External Wall Insulation Plugs For Hollow Brick Block

FAQ

What makes the heavy-duty spiral anchor different from your standard anchor?

The heavy-duty version features a 30% deeper thread groove profile, 0.8 mm thicker sleeve walls, and modified high-impact PA6 nylon material. These improvements deliver approximately 50% higher pull-out resistance and prevent cracking under high installation torque, making it suitable for wall cabinets, TV brackets, and bathroom fixtures.

Can these heavy-duty anchors be used on drywall and plasterboard?

Yes, they are backward compatible with gypsum board and plasterboard. However, for light to medium loads on drywall, our standard spiral anchors offer a more economical solution. The heavy-duty version is optimized for hollow brick, hollow concrete block, and aerated concrete where higher holding power is required.

What screw sizes are compatible with the heavy-duty anchor?

The heavy-duty sleeve is designed to accommodate M4, M5, and M6 self-tapping screws. For maximum holding strength, we recommend using M5 or M6 screws with a minimum embedment depth of 30 mm into the substrate. Standard wood screws and chipboard screws are also compatible.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
