| Brand Name: | CangRui |
| Model Number: | Plug Insulation Fixings |
| MOQ: | 1000 Pieces |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 2000000 Pieces per Month |

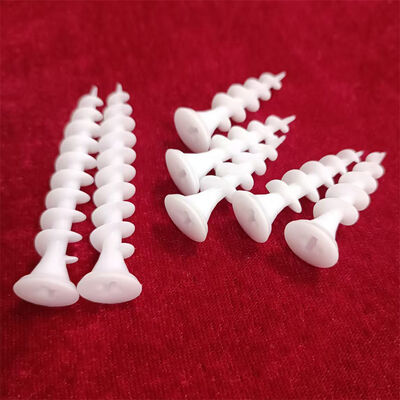

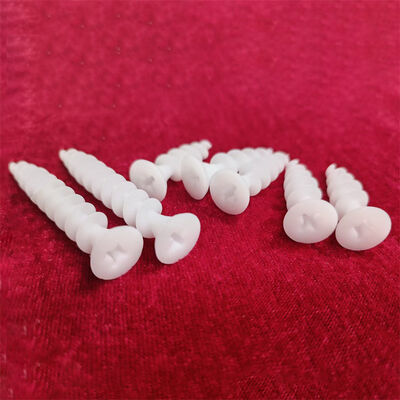

Nylon Screw In Plastic Spiral Expansion Anchors Self Tapping Drywall Fixing Plugs for Gypsum Board Hollow Wall
The product is a fastener widely used in building decoration, home installation, and light industrial assembly. It is mainly composed of a high-strength nylon expansion tube with external spiral threads and a matching zinc-plated steel screw. The fixing principle is based on a screw-driven expansion mechanism: when the screw is driven into the nylon tube with a screwdriver, the spiral threads force the tube body to expand radially, tightly squeezing the inner wall of the borehole. The enormous friction and mechanical interlock generated by this expansion form a self-locking effect between the fastener and the substrate such as gypsum board, plasterboard, and hollow wall, achieving a stable and reliable fixation effect. The spiral thread design also increases the contact area with the wall, further enhancing tensile strength and pull-out resistance.
|
Product Name
|
Nylon Screw In Plastic Spiral Expansion Anchors
|
|
Sleeve Material
|
High-Quality Nylon PA6 Engineering Plastic
|
|
Screw Material
|
Carbon Steel with Bright Zinc Plating
|
|
Color
|
White / Yellow / Blue / Grey
|
|
Diameter
|
8, 10, 12, 13, 14, 15 mm
|
|
Length
|
17 mm - 55 mm
|
|
Screw Size Compatibility
|
M3.5, M4, M4.5, M5
|
|
Thread Type
|
Single Continuous Spiral
|
|
System of Measurement
|
Metric
|
|
Drive Type
|
Phillips Head PH2
|
|
Wall Board Compatibility
|
Gypsum Board, Plasterboard, Hollow Wall, Particle Board
|
|
Installation Method
|
Pre-drill 6-8 mm pilot hole, screw in with screwdriver
|
|
MOQ
|
1000 Pcs
|
|
Package
|
1000 pcs/bag
|
|
Sample
|
Provide Samples Freely
|
