Plastic Expansion Anchor Strong TiCN Coated Wall Plug Universal Expansion Anchor Bolt

Name: Plastic Expansion Anchor Strong TiCN Coated Wall Plug Universal Expansion Anchor Bolt
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Expansion Anchor
Price: Negotiable USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Expansion Anchor

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Material:

Nylon

Diameter:

12 Mm, 14mm, 10mm, 8mm, 6mm

Color:

Grey, Brown, Blue, Red, Black

Capacity:

High Load Capacity

Application:

Building Construction Material Fixing

Compatible:

Drywall, Concrete, Plaster, Paneling

Fastener Type:

Expansion Anchor

Finish:

Bright(Uncoated)

Connection Method:

Bolt Joint

Head Type:

Round

Removable:

Removable

Measurement System:

Metric

Highlight:

universal expansion anchor bolt

universal plastic expansion anchor

ticn coated expansion anchor bolt

Product Description

High Quality Nylon Plastic Diameter Strong Coated Wall Plug Universal Expansion Anchor Bolt

Product Description

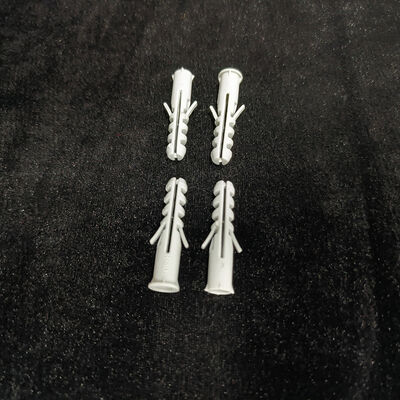

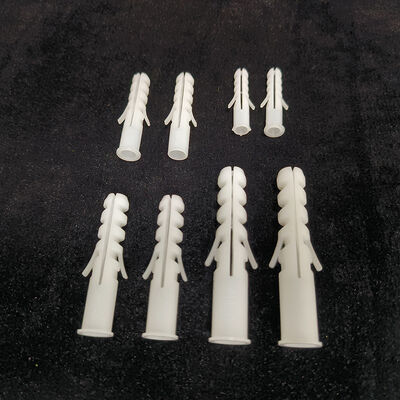

This ribbed screw anchor is made of high-quality plastic and is ideal for fastening on hollow, thin and lightweight materials, such as drywall and plasterboard. The wings expand upon the anchor's insertion into the material for added stability.This type has no outer ring or lip that remains outside the pre-drilled hole, so there will not be any plastic visible once the screw is in place. Also, whatever is being attached to the wall will sit directly against the wall, with no gap.

One of the key features of plastic expansion anchors is their ability to expand once inserted into a hole in a wall or other surface. The expansion process is achieved through the use of a unique design that allows the plastic anchor to firmly grip the surrounding material, providing a strong and secure anchor point for screws and other fasteners.

The anchor itself can only be used one time, but you can insert and remove the screws as often as you need to. Additionally, its sleek gray color makes it visually appealing.

Features

The plastic expansion anchor features a precision-engineered expansion zone that activates as the screw is driven in. The anchor body expands radially against the hole wall, creating a secure mechanical interlock that delivers exceptional pull-out resistance.

Manufactured from engineering-grade PA6 polyamide, these anchors combine high tensile strength with excellent impact and wear resistance. The material absorbs dynamic loads effectively and maintains structural integrity under vibration, ensuring long-term anchoring stability.

The anchor body is designed with a multi-ribbed profile and anti-rotation fins that bite securely into the hole wall during installation. This geometry prevents the anchor from spinning when the screw is being driven, enabling a smooth, efficient, and frustration-free installation experience.

The internal bore features a specially designed thread profile that maximizes engagement with the screw threads. As the screw advances, the expansion segments are forced outward progressively, ensuring full and even expansion across the entire anchor length.

Available in multiple diameter and length configurations, these anchors can be precisely matched to different substrate types and load requirements. In dense materials like concrete and solid brick, the expansion anchor delivers high load capacities up to 60kg.

Installation follows a simple three-step process – drill, insert, and drive. Compatible with standard masonry drill bits and common screwdrivers, no specialized tools or proprietary setting equipment is required. The clean expansion action minimizes dust and debris, while the straightforward process enables rapid installation in high-volume applications.

Technical Parameters

General Information
Product Name	Plastic Expansion Anchor
Material	Nylon (PA6) / Polyamide / Engineering Plastic
Color Options	Yellow, Red, Green, Grey, White, Brown (customizable)
Head Type	Countersunk / Flat
Dimensions & Compatibility
Anchor Diameter (Ø)	5mm, 6mm, 8mm, 10mm, 12mm, 14mm
Anchor Length	25mm – 80mm (common: 25, 30, 35, 40, 50, 60, 70, 80mm)
Compatible Screw Diameter	M3, M4, M5, M6, M8, M10 / #4 to #14 gauge
Pre-drill Hole Diameter	5mm – 14mm (matches anchor diameter)
Minimum Hole Depth	Anchor length + 10mm (recommended)
Max Fixture Thickness	6mm – 11mm (varies by anchor size)
Installation
Installation Method	Pre-drill → clean hole → insert anchor → drive screw → expansion
Installation Tool	Drill (masonry bit) + Screwdriver / Impact driver
Expansion Principle	Screw thread engages with plug body, causing radial expansion against hole wall
Key Design Features	• Anti-rotation ribs prevent spinning • Collar/neck prevents over-insertion • Serrated surface for extra grip
Performance & Load Capacity
Typical Load Capacity (Solid Wall)	20kg – 60kg per anchor (varies by size and substrate)
Typical Load Capacity (Hollow Wall)	5kg – 20kg per anchor (varies by size and substrate)
Temperature Range	-40°C to +80°C
Environmental Compliance	RoHS Compliant, REACH Compliant
Standards Compliance	ISO 9001 (manufacturing)
Application
Applicable Substrates	• Concrete (uncracked, aerated) • Solid brick / Solid masonry • Hollow brick / Hollow block • Drywall / Plasterboard • Stone / Blockwork
Common Applications	• Electrical fittings and conduit fixing • Shelving, mirrors, picture frames • Sanitary fixtures and towel racks • Window and door frame anchoring • Insulation board fixing • General light to medium-duty fastening
Packaging
Standard Packaging	50 / 100 / 200 / 500 / 1000 pieces per box or poly bag
Certifications	ISO 9001

Plastic Expansion Anchor Strong TiCN Coated Wall Plug Universal Expansion Anchor Bolt

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic insulation anchors be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
