Triple Rib Nylon Plastic Wall Plug Anti Rotation Multi Line Grip Expansion Anchor For Solid Wall

Triple Rib Nylon Plastic Wall Plug Anti Rotation Multi Line Grip Expansion Anchor For Solid Wall

Brand Name: CangRui
Model Number: Plastic Wall Plug
MOQ: 5000 Pieces
Price: USD 0.007 - 0.035 / Piece
Payment Terms: T/T,L/C,PayPal,Western Union
Supply Ability: 4000000 Pieces per Month
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Sizes:
5mm, 6mm, 8mm, 10mm
Screw:
Wood / Chipboard 3-6mm
Application:
Solid Wall, Concrete, Brick Fixing
Installation:
Drill, Insert Plug, Screw Tighten
Body:
Three Longitudinal Anti-rotation Ribs
Anchor Type:
Ribbed Grip Wall Plug
Material:
Nylon PA6 Reinforced
Rib Count:
3 Ribs Per Plug Body
Grip Feature:
Multi-line Friction Lock
Packaging Details:
WNRLN polybag with size label, export-grade corrugated carton
Highlight:

nylon plastic wall plug

,

plastic wall plug anti rotation

,

nylon plastic wall plugs for screws

Product Description

Triple Rib Nylon Plastic Wall Plug Anti-Rotation Multi-Line Grip Expansion Anchor for Solid Wall Concrete Fixing




Product Description



The Triple Rib Nylon Plastic Wall Plug is engineered with three longitudinal anti-rotation ribs along the plug barrel that mechanically interlock with the borehole wall to prevent spinning during screw driving and throughout the service life of the fixture. The multi-rib geometry dramatically increases surface friction contact area compared to standard smooth-body wall plugs, translating screw torque directly into expansion force rather than wasting it on plug rotation. Each rib acts as an independent friction lock, so even if one rib loses grip on an irregular borehole surface, the remaining two ribs maintain full anti-spin engagement.



Molded from high-toughness nylon PA6 engineering plastic, the Triple Rib Wall Plug delivers outstanding tensile strength and deformation resistance under repeated load cycles. The material is naturally rust-free and never corrodes, with proven acid and alkali chemical resistance that ensures reliable long-term performance in humid bathrooms, coastal environments, and outdoor applications exposed to rain and temperature extremes.



Installation follows the standard wall plug workflow: drill a clean hole to the specified diameter, remove all drilling dust for optimal rib-to-wall contact, insert the plug flush with the wall surface applying light thumb pressure until the collar seats, mount the screw on the front of the driver bit, and rotate the handle clockwise to tighten. The three longitudinal ribs hold the plug stationary as the screw expands the body against the borehole, creating a secure, high-friction anchor point for light to medium duty applications.



Features





Triple Longitudinal Rib Geometry: Three raised anti-rotation ribs molded along the full length of the plug barrel mechanically lock into the borehole wall surface, preventing plug spinning during screw tightening even in slightly oversized or worn holes.

Multi-Point Friction Lock: Each rib functions as an independent friction contact point against the substrate. Redundant grip design ensures that if one rib encounters an irregular borehole surface, the remaining ribs maintain full anti-spin engagement throughout installation and service.

Optimized Torque Transfer: Prevents wasted rotational energy by locking the plug body stationary, directing all screw torque into axial expansion force for maximum pull-out resistance with standard hand tools and power drivers.

High-Toughness Nylon PA6: Engineering-grade nylon delivers superior tensile strength and impact resistance. Completely rust-proof with excellent acid and alkali chemical resistance for bathrooms, kitchens, coastal, and outdoor installations.

Standard Tool Compatibility: Works with all standard installation tools including manual screwdrivers, electric drills, and impact drivers with Phillips, flat, or Pozidriv bits. No special equipment or training required.


Technical Parameters





General Information
Product Name Triple Rib Nylon Plastic Wall Plug
Material Nylon PA6 reinforced engineering grade
Body Three longitudinal anti-rotation ribs
Color Natural, White, Grey, Custom
Rib Count 3 ribs per plug body
Dimensions & Compatibility
Sizes 5mm, 6mm, 8mm, 10mm (standard)
Plug Length 25mm, 30mm, 35mm, 40mm, 50mm
Drill Bit Diameter Match plug diameter
Screw Compatibility Wood screws 3-6mm / Chipboard screws 3.5-5mm
Min Drill Hole Depth 35mm - 60mm (varies by plug length)
Installation
Method Drill clean hole → remove dust → insert plug flush → mount screw on driver → clockwise tighten
Tool Manual screwdriver, electric drill, impact driver
Key Feature Triple rib body locks against borehole wall, stops rotation during screw tightening
Fastening Type Pre-fastening / Through-fastening
Performance
Pull-Out (M6 Concrete) 70 kg
Pull-Out (M8 Solid Brick) 55 kg
Pull-Out (M10 Stone) 50 kg
Temperature Range -20°C to +80°C
Environmental Resistance Rust-free, acid resistant, alkali resistant, moisture resistant
Compliance RoHS Compliant, REACH Compliant
Standards ISO 9001:2015
Application
Applicable Substrates Solid brick, concrete (uncracked), stone, blockwork, aerated concrete
Common Applications Electrical conduit clips, plumbing pipe brackets, shelving brackets, curtain rods, picture frames, light fixtures, bathroom accessories, cable management trays
Usage Restriction Not for overhead heavy-duty or life-safety critical applications without engineering assessment
Packaging
Standard Packaging 200 / 300 / 500 pieces per polybag with size label
Bulk Packaging Export-grade corrugated carton, 20-50 bags per carton
Screws Included Screws sold separately
Certifications ISO 9001:2015

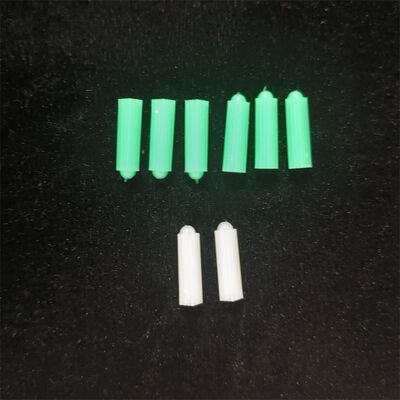

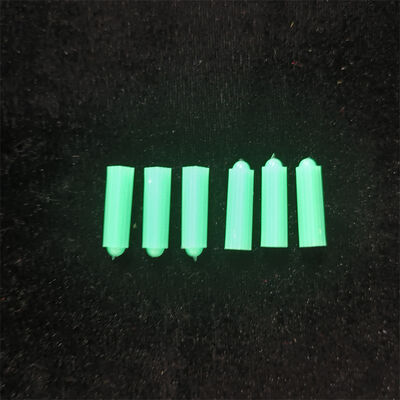

Triple Rib Nylon Plastic Wall Plug Anti Rotation Multi Line Grip Expansion Anchor For Solid WallTriple Rib Nylon Plastic Wall Plug Anti Rotation Multi Line Grip Expansion Anchor For Solid Wall

Triple Rib Nylon Plastic Wall Plug Anti Rotation Multi Line Grip Expansion Anchor For Solid Wall

Triple Rib Nylon Plastic Wall Plug Anti Rotation Multi Line Grip Expansion Anchor For Solid Wall







FAQ



Do you have full standard sizes in stock for plastic expansion anchors?


We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.



What is the material and load-bearing capacity of your Plastic insulation anchors?


Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.



What types of walls and base materials can this Plastic insulation anchors be used for?


It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.



What is your MOQ and wholesale price discount policy?


Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.



What is your production lead time and mass supply capacity?


Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.



Can you customize size, color, packaging and OEM private label?


We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.



Do you support mixed batch with other fastener products?


Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.



Can I get free samples for quality checking?


Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
