5mm 6mm 8mm 10mm Self Centering Tapered Tip Plastic Wall Plug For Quick Solid Wall Mounting

5mm 6mm 8mm 10mm Self Centering Tapered Tip Plastic Wall Plug For Quick Solid Wall Mounting

Brand Name: CangRui
Model Number: Plastic Wall Plug
MOQ: 5000 Pieces
Price: USD 0.006 - 0.03 / Piece
Payment Terms: T/T,L/C,PayPal,Western Union
Supply Ability: 4000000 Pieces per Month
Detail Information
Place of Origin:
Hebei, China
Certification:
ISO9001
Material:
Nylon PA6
Sizes:
5mm, 6mm, 8mm, 10mm
Body:
Tapered Self-centering Tip
Anchor Type:
Self Centering Wall Plug
Screw:
Wood / Chipboard
Installation:
Drill, Insert Plug (tip Guides), Screw Tighten
Application:
Quick Installation, DIY, Overhead Ceiling, Batch Mounting
Packaging Details:
WNRLN polybag, export carton
Highlight:

tapered tip plastic wall plug

,

5mm plastic wall plug

,

5mm plastic wall plugs for screws

Product Description

Self Centering Tapered Tip Plastic Wall Plug Nylon Anchor Insert Easy Entry Design for Quick Solid Wall Mounting




Product Description

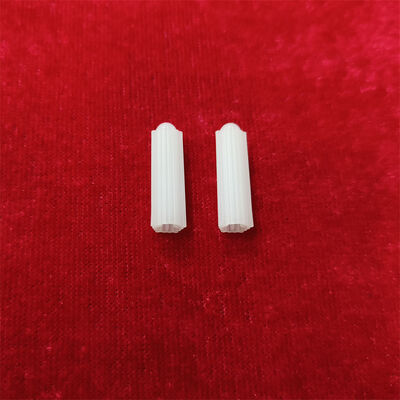

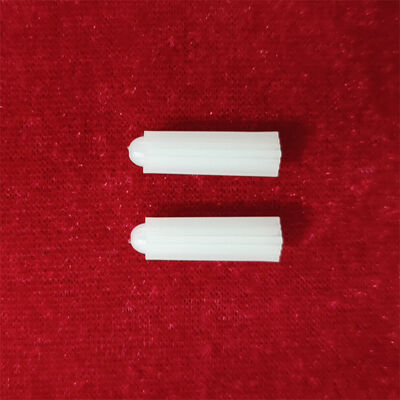

The Self Centering Tapered Tip Plastic Wall Plug features a precision-molded conical nose that automatically guides the plug body into the borehole centerline during insertion, eliminating the common installation problem of the plug catching on the hole edge or entering at an angle. The tapered tip geometry is especially valuable for overhead ceiling installation where limited visibility and awkward working angles make precise plug alignment difficult — the conical nose self-centers into the hole even when the installer is working blind. Once the plug is seated flush, the standard nylon PA6 expansion body engages normally as the screw is tightened with a manual or electric driver. The nylon material delivers excellent toughness and tensile strength, stays permanently rust-free, and resists acid and alkali corrosion. Installation follows the standard workflow with the added convenience of the self-centering tip: drill a clean hole to the specified diameter, push the tapered plug toward the hole — the conical tip guides it in smoothly, then mount the screw on the front of the driver bit and rotate the handle clockwise to tighten.



Features





Precision Tapered Cone Tip: Conical nose geometry automatically guides the plug into the borehole center during insertion, preventing edge-catching, misalignment, and wasted plugs on the job site.

Overhead Installation Friendly: Self-centering design is especially beneficial for ceiling and overhead applications where limited visibility and awkward hammer angles cause frequent misalignment with standard flat-nose plugs.

Reduced Installation Errors: Tapered tip enters the hole cleanly on first attempt with minimal thumb pressure, reducing dropped plugs, wasted time, and frustration during high-volume batch installation work.

Standard Expansion Body with Guide Benefit: Same reliable nylon PA6 expansion performance as standard wall plugs, upgraded with the tapered guide tip — no learning curve, just faster and more accurate insertion.





Technical Parameters



General Information
Product Name Self Centering Tapered Tip Plastic Wall Plug
Material Nylon PA6
Body Tapered tip + standard expansion barrel
Color Natural, White, Grey
Dimensions
Sizes 5mm, 6mm, 8mm, 10mm
Drill Bit Match plug diameter
Screw 3-6mm wood/chipboard
Length 25mm - 50mm
Installation
Method Drill → clean dust → insert plug (tapered tip self-guides) → mount screw on driver → tighten
Tool Manual screwdriver, electric drill
Key Feature Tapered tip auto-centers into borehole for quick, error-free insertion
Performance
Pull-Out (M6 Concrete) 65 kg
Pull-Out (M8 Brick) 50 kg
Temperature -20°C to +80°C
Compliance RoHS, REACH
Standards ISO 9001:2015
Application
Substrates Concrete, brick, plasterboard, aerated block
Uses Overhead ceiling fixtures, batch DIY mounting, quick-install construction, low-visibility insertion
Restriction Drill clean hole for optimal tapered tip guide performance
Packaging
Packaging Polybag with label
Quantity 200-500 pcs/bag, bulk carton
Certifications ISO 9001:2015



5mm 6mm 8mm 10mm Self Centering Tapered Tip Plastic Wall Plug For Quick Solid Wall Mounting5mm 6mm 8mm 10mm Self Centering Tapered Tip Plastic Wall Plug For Quick Solid Wall Mounting



5mm 6mm 8mm 10mm Self Centering Tapered Tip Plastic Wall Plug For Quick Solid Wall Mounting

5mm 6mm 8mm 10mm Self Centering Tapered Tip Plastic Wall Plug For Quick Solid Wall Mounting



FAQ



Do you have full standard sizes in stock for plastic expansion anchors?


We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.





What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.





What types of walls and base materials can this Plastic insulation anchors be used for?


It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.





What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.





What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.





Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.





Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.





Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
