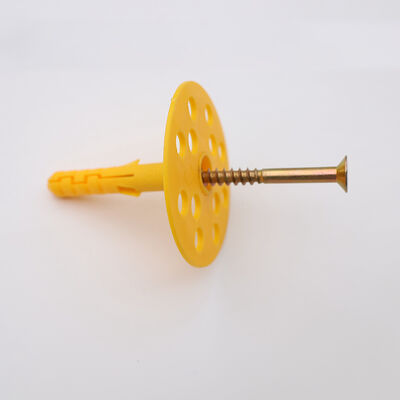

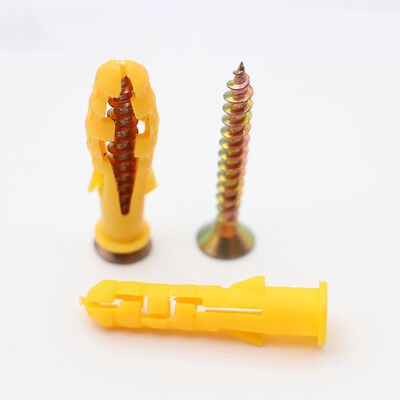

Pull Out Resistant Nylon Expanding Plastic Screw Anchors M5x35mm Rack Hollow Brick Fastener Set

Name: Pull Out Resistant Nylon Expanding Plastic Screw Anchors M5x35mm Rack Hollow Brick Fastener Set
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Expansion Screw
Price: 0.03 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Expansion Screw
MOQ:	100 Pieces
Price:	USD 0.03-0.12 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Plug Dia:

6mm

Plug Length:

35mm

Screw Size:

M5x35mm

Drill Hole:

6mm

Plug Material:

Nylon PA6

Screw Material:

Zinc Steel

Color:

Yellow, OEM

Fastener Type:

Expansion Screw

Substrate:

Hollow Brick

Use Case:

Wall Hooks

Grip Type:

High Friction

Measurement:

Metric

Pack Type:

Pre Assembled

Corrosion:

Zinc-Plated

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

nylon expanding plastic screw anchors

expanding plastic screw anchors m5x35mm

nylon expanding screws plastic

Product Description

Pull-Out Resistant Nylon Plastic Expansion Screw Anchor Wall Hook Coat Rack Hollow Brick Fastener Set

Product Description

The Pull-Out Resistant Nylon Plastic Expansion Screw Anchor is a medium-duty fastening solution specifically designed for wall hooks, coat racks, key holders, and decorative wall-mounted accessories on hollow brick and cavity wall surfaces. Each complete set contains a 6mm diameter PA6 nylon expansion plug factory-matched with an M5 x 35mm zinc-plated steel screw, delivering optimal expansion performance straight from the packaging.

Installation follows the proven expansion principle: drill a 6mm hole into the hollow brick at each hook mounting position, insert the nylon plug until its collar sits flush against the wall, position the coat hook bracket over the hole, and drive the M5 screw through the bracket into the plug. As the screw advances to full depth, the cone-shaped tail section forces the nylon body to expand radially outward, gripping the hole wall through high-friction contact distributed along the entire 35mm plug length. The anti-rotation ribs on the plug body allow convenient single-handed screw tightening without needing to manually hold the plug in position, greatly simplifying the installation of multi-hook coat rack systems.

Features

Secure Pull-Out Resistance

The 6mm plug with extended 35mm body length creates a deep expansion zone that engages a larger contact area with the hole wall compared to shorter plugs. This delivers superior pull-out resistance against the repeated outward tugging and pulling forces typical of coat hooks and wall-mounted hangers during daily household use.

High Friction Expansion

The nylon plug body is engineered with textured surface ridges along its full expansion length, maximizing the coefficient of static friction against masonry, brick, and concrete substrate materials. This high-friction interface efficiently converts the screw's axial drive force into powerful radial gripping strength for secure long-term anchoring.

Single-Hand Tightening

The anti-rotation ribs gripping the drill hole wall firmly hold the plug in position during screw insertion, enabling quick one-handed driving without needing to manually stabilize the plug. This feature is particularly valuable when installing multiple coat hooks where one hand positions the hook bracket while the other drives the screw with a cordless screwdriver.

Technical Parameters

General Information
Product Name	Plastic Expansion Screw (Nylon Plug + Matching Screw Set)
Plug Diameter	6mm
Plug Length	35mm
Screw Diameter	M5
Screw Length	35mm
Pre-drill Hole Diameter	6mm
Plug Material	Nylon PA6 / Polyamide Engineering Plastic
Screw Material	Carbon Steel (Zinc-Plated) / Stainless Steel (Optional)
Color Options	Yellow, White, Grey, Blue, OEM Custom
Installation Method	Pre-drill → insert plug → drive screw → expansion lock
Load Capacity (Solid Brick)	Up to 35kg
Load Capacity (Hollow Brick)	Up to 18kg
Temperature Range	-40°C to +80°C (PA6 nylon)
Compliance	RoHS Compliant, REACH Compliant
Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag

Pull Out Resistant Nylon Expanding Plastic Screw Anchors M5x35mm Rack Hollow Brick Fastener Set

FAQ

Q: Do you have full standard sizes in stock for plastic expansion anchors?

A: We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

Q: What is the material and load-bearing capacity of your Plastic insulation anchors?

A: Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

Q: What types of walls and base materials can this wall plug be used for?

A: It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

Q: What is your MOQ and wholesale price discount policy?

A: Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

Q: What is your production lead time and mass supply capacity?

A: Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Q: Can you customize size, color, packaging and OEM private label?

A: We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Q: Do you support mixed batch with other fastener products?

A: Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Q: Can I get free samples for quality checking?

A: Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
