Deep Cavity Nylon Four Wing Knot Expanding Plastic Anchor M8 For Kitchen Cabinet Hollow Brick Fixing

Name: Deep Cavity Nylon Four Wing Knot Expanding Plastic Anchor M8 For Kitchen Cabinet Hollow Brick Fixing
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Universal Wall Plugs
Price: 0.03 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Universal Wall Plugs
MOQ:	100 Pieces
Price:	USD 0.03-0.20 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Material:

Nylon PA6

Finish:

Bright(Uncoated)

Color:

White, Grey, OEM

Fastener Type:

Four-Wing Sleeve Anchor

Wing Count:

4 Wings

Measurement System:

Metric

Connection Method:

Bolt Joint

Corrosion Proof:

100% Rust Free

Screw Size:

Anchor Length:

60mm

Drill Hole:

12mm

Use Case:

Kitchen Cabinets

Hinge Type:

Reinforced

Substrate:

Hollow Brick

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

expanding plastic anchor m8

nylon plastic drywall anchor

nylon expanding plastic anchor

Product Description

Deep-Cavity Nylon Four-Wing Knot Expansion Plastic Wall Anchor for Kitchen Cabinet Hollow Brick Fixing

Product Description

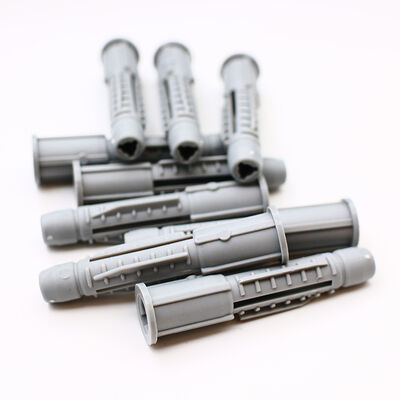

The M8 x 60mm Nylon Four-Wing Knot Expansion Wall Plug is a deep-cavity plastic fastening solution engineered for kitchen cabinets, wall units, and heavy storage furniture on hollow brick and cavity wall surfaces. The anchor features a reinforced four-wing knot-expansion body made from industrial-grade PA6 nylon with thickened wing hinges that resist fatigue under sustained cabinet loads. The extended 60mm body length reaches deep into hollow brick cavities, deploying the four wings across a 28mm diameter behind the wall face for maximum holding power. Installation requires drilling a 12mm hole to the full 63mm depth, inserting the anchor flush with the wall surface, positioning the cabinet bracket, and driving the M8 screw to activate the full knot-expansion mechanism.

Features

Hollow Wall Cavity Fixing - Engineered specifically for hollow brick and cavity wall substrates, the knot-expansion wings engage the inner cavity face to create a secure, load-bearing anchor point for heavy kitchen cabinetry.

Deep Cavity Expansion - The 60mm body length with 63mm embedment depth ensures the four wings deploy well beyond the hollow brick face, reaching into solid cavity space for maximum pull-out resistance under cabinet weight.

Reinforced Wing Hinge - Thickened PA6 nylon hinge points where wings connect to the anchor body provide superior fatigue resistance, maintaining structural integrity under the sustained dead load of filled kitchen cabinets.

28mm Maximum Wing Span - The extra-wide wing expansion creates an exceptionally large bearing area behind hollow brick walls, distributing heavy cabinet loads to prevent localized substrate failure and anchor pull-through.

Technical Parameters

General Information
Product Name	Nylon Four-Wing Knot Expansion Wall Plug UW Series
Model Number	UW-M860
Screw Diameter	M8
Anchor Length	60mm
Wing Count	4 Wings
Material	Nylon PA6 / Polyamide Engineering Plastic
Color Options	White, Grey, Blue, Natural (customizable)
Anchor Structure	Four-wing folding body with knot-expansion mechanism
Dimensions & Compatibility
Drill Hole Diameter	12mm
Min Embedment Depth	63mm
Wing Expansion Range	12-28mm
Pre-drill Required	Yes - drill hole to recommended diameter
Recommended Drill Type	Masonry drill bit for hollow substrates
Load Capacity
Load Capacity (Plasterboard)	Up to 50kg per anchor
Load Capacity (Hollow Brick)	Up to 65kg per anchor
Pull-Out Resistance	Varies by substrate density and wing expansion depth
Shear Strength	Up to 72kg in 12.5mm plasterboard
Installation
Installation Method	Pre-drill hole → insert anchor flush → drive screw to expand wings
Installation Tool	Drill + Screwdriver / Impact driver with Phillips bit
Key Mechanism	Screw drives into anchor body forcing four wings to fold outward creating knot-lock
Anti-Rotation Feature	Ribbed body prevents spinning during screw insertion
Application
Suitable Substrates	Plasterboard, Drywall, Gypsum Board, Hollow Brick, Cavity Wall, Aerated Concrete, Lightweight Concrete
Common Uses	Kitchen Cabinets and Wall Units on Hollow Brick
Environmental & Compliance
Temperature Range	-40°C to +80°C
Environmental Suitability	Indoor and outdoor use (UV-stabilized PA6)
Corrosion Resistance	100% rust-proof plastic construction
Compliance	RoHS Compliant, REACH Compliant
Packaging
Standard Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag
Screws Included	Anchors sold separately, matching screw kits available
Certifications	ISO 9001:2015

Deep Cavity Nylon Four Wing Knot Expanding Plastic Anchor M8 For Kitchen Cabinet Hollow Brick Fixing

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your plastic wall plugs?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this plastic wall plug be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling for soft substrates.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
