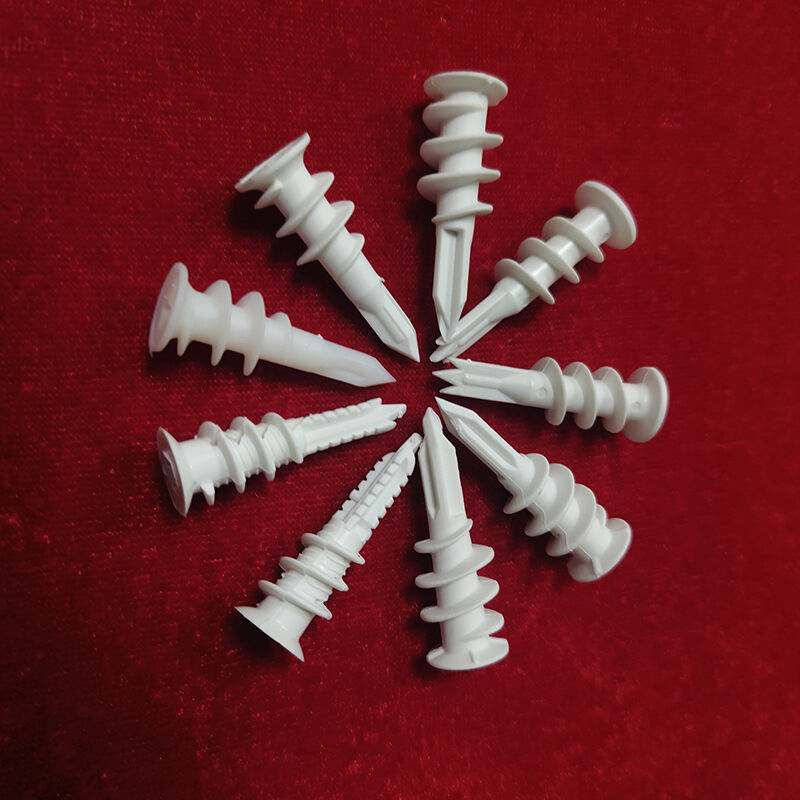

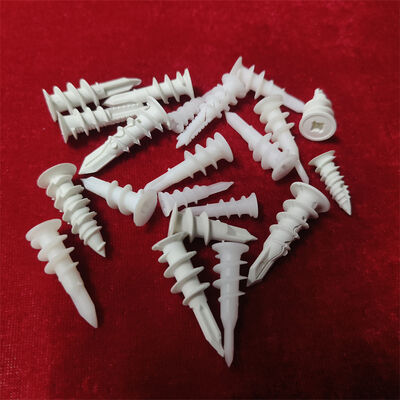

Non Conductive Nylon Self Tapping Wall Anchors M6 Smooth Finish

Name: Non Conductive Nylon Self Tapping Wall Anchors M6 Smooth Finish
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Self Tapping Wall Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Self Tapping Wall Anchors
MOQ:	100 Pieces
Price:	USD 0.02-0.15 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Color:

White, Grey, OEM

Tip Type:

Sharp Conical

Finish:

Smooth

Matching Screw:

Corrosion Proof:

100% Rust-Free

Material:

Nylon PA6

Base Type:

Disc Flange

Feature:

No Pre-Drilling

Use Case:

Cable Trays

Thread Style:

Spiral Helical

Installation:

Self-Tapping Screw-In

Substrate:

Plasterboard

Head Shape:

Wide Collar

Anchor Diameter:

10mm

Anchor Length:

50mm

Electrical Safety:

Non-Conductive

Load Direction:

Lateral Shear

Flange Width:

16mm

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

nylon self tapping wall anchors

self tapping wall anchors m6

nylon self tapping drywall anchors

Product Description

Non-Conductive Nylon Self-Tapping Drywall Anchor Cable Tray Fixing Spiral Plastic Fastener with High Shear Strength

Product Description

The 10mm x 50mm Non-Conductive Nylon Self-Tapping Drywall Anchor is an electrically safe plastic fastening solution engineered for cable tray, conduit bracket, and electrical trunking installations on plasterboard and drywall surfaces. The anchor body is made from electrically insulating PA6 nylon, providing a safe mounting option for electrical cable management where metal fasteners could pose short-circuit or grounding risks. Its sharp conical tip penetrates plasterboard cleanly without pre-drilling, while the deep spiral threads create a robust mechanical lock within the gypsum board structure. The wide collar base distributes lateral and shear loads evenly across the plasterboard surface, ensuring stable cable tray support over long service periods. Installation is straightforward: mark the position on the plasterboard, place the conical tip against the surface, and drive clockwise with a screwdriver or impact driver until the collar sits flush and firm resistance is felt.

Features

Electrically Safe Insulation - The fully non-conductive PA6 nylon body provides natural electrical insulation, making this anchor the safer choice for cable tray, conduit, and junction box mounting on plasterboard near electrical wiring where metal fasteners pose risks.

Reinforced Shear Resistance - The 10mm diameter body with full-length spiral threads delivers superior lateral load capacity up to 52kg in 12.5mm standard plasterboard, ideal for supporting cable trays and trunking carrying distributed cable weight.

Deep Plasterboard Thread Engagement - At 50mm length, the anchor reaches through the plasterboard face into the cavity beyond, where the spiral threads expand and lock firmly, creating a reliable anchor point even in older or slightly degraded gypsum board.

Wide Load-Spreading Collar - The reinforced wide collar face evenly distributes mounting pressure across the plasterboard surface, preventing localized crushing of the gypsum core and maintaining bracket alignment under continuous cable weight.

Technical Parameters

General Information
Product Name	Nylon Spiral Self Tapping Wall Anchor ST Series
Model Number	ST-10050
Anchor Diameter	10mm
Anchor Length	50mm
Material	Nylon PA6 / Polyamide Engineering Plastic
Color Options	White, Grey, Natural (customizable)
Anchor Structure	Spiral helical body with conical drill tip and disc base
Dimensions & Compatibility
Matching Screw Size	M6 (self-tapping screw)
Self-Drilling Tip	Sharp conical pointed tip
Base Type	Wide disc flange for wall surface support
Thread Type	Deep spiral / helical cutting thread
Pre-drill Required	No for drywall/plasterboard; optional for concrete/brick
Recommended Drill Size	10mm or 9mm for hard substrates
Load Capacity
Load Capacity (Plasterboard)	Up to 30kg per anchor
Pull-Out Resistance	Varies by plasterboard thickness and anchor size
Shear Strength	Up to 52kg in 12.5mm plasterboard
Installation
Installation Method	Self-tapping — screw directly into plasterboard surface
Installation Tool	Screwdriver / Impact driver with Phillips bit
Installation Steps	Mark position → place tip on plasterboard → drive clockwise until flush → insert screw
Key Benefit	No pre-drilling required for plasterboard and gypsum board surfaces
Anti-Rotation Feature	Integrated anti-spin ribs prevent rotation during installation
Application
Suitable Substrates	Plasterboard, Drywall, Gypsum Board (also compatible with Hollow Brick, Cavity Wall, Aerated Concrete, Lightweight Concrete)
Common Uses	Cable Tray and Conduit Bracket Fixing on Plasterboard
Environmental & Compliance
Temperature Range	-40°C to +80°C
Environmental Suitability	Indoor and outdoor use (UV-stabilized PA6)
Corrosion Resistance	100% rust-proof plastic construction
Compliance	RoHS Compliant, REACH Compliant
Packaging
Standard Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag
Screws Included	Anchors sold separately, screw kits available
Certifications	ISO 9001:2015

Non Conductive Nylon Self Tapping Wall Anchors M6 Smooth Finish

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your plastic spiral anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this plastic spiral anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
