Cavity Wall Self Drilling Anchor Screws 12mm X 50mm Nylon Expansion Anchor With Reinforced Spiral Thread Body

Name: Cavity Wall Self Drilling Anchor Screws 12mm X 50mm Nylon Expansion Anchor With Reinforced Spiral Thread Body
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Self Tapping Wall Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Self Tapping Wall Anchors
MOQ:	100 Pieces
Price:	USD 0.02-0.15 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Material:

Nylon PA6

Color:

White, Grey, OEM

Anchor Diameter:

12mm

Anchor Length:

50mm

Thread Style:

Spiral Helical

Tip Type:

Sharp Conical

Base Type:

Disc Flange

Matching Screw:

Installation:

Self-Tapping Screw-In

Substrate:

Cavity Wall

Corrosion Proof:

100% Rust-Free

Feature:

No Pre-Drilling

Finish:

Smooth

Head Shape:

Round Flange

Use Case:

Brackets

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

cavity wall self drilling anchor screws

self drilling anchor screws 12mm x 50mm

nylon self drilling drywall anchor

Product Description

Nylon Spiral Self Tapping Wall Anchor 12mm x 50mm Plastic Drywall Plasterboard Fastener with Conical Drill Tip for Cavity Wall

Product Description

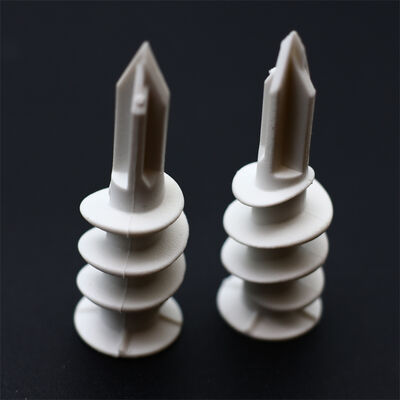

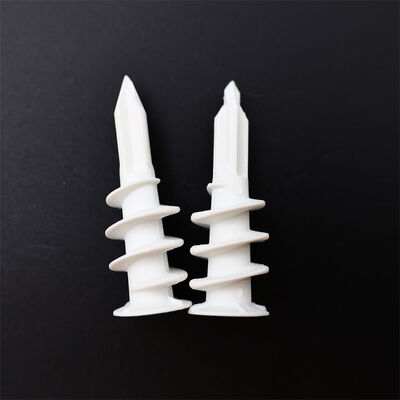

The 12mm x 50mm Nylon Spiral Self Tapping Wall Anchor is a premium plastic fastening solution engineered for cavity wall / double plasterboard applications. Featuring a sharp conical drill tip and helical spiral body structure, this self-tapping anchor can be screwed directly into the wall surface without pre-drilling a pilot hole. The pointed tip easily penetrates soft wall materials, while the deep spiral threads cut precise grooves into the substrate, creating a secure mechanical lock. A flared disc-shaped base at the anchor bottom provides excellent support against the wall surface, preventing pull-through and ensuring a flush, stable mount. The self-tapping mechanism eliminates the need for separate drilling operations. Just position the pointed cone tip at your marked point, apply gentle pressure, and turn clockwise. The anchor cuts its own precision hole and threads in one smooth motion.

Features

Aggressive Cutting Edge - A sharpened lead-in thread edge acts as a cutting flute, clearing material efficiently as the anchor advances into cement board and dense substrates.

Full-Length Spiral - Spiral threads run the entire anchor body length for uniform engagement from surface to tip, maximizing grip in varying wall thicknesses.

Heavy-Duty Base Flange - The reinforced thick flange withstands high clamping forces for mounting heavy fixtures like wall-mounted TVs, radiators, and large shelving units.

Chemical Resistant - PA6 nylon resists degradation from common household chemicals, cleaners, and mild acids, ensuring reliable performance in utility rooms and garages.

Technical Parameters

General Information
Product Name	Nylon Spiral Self Tapping Wall Anchor ST Series
Model Number	ST-12050
Anchor Diameter	12mm
Anchor Length	50mm
Material	Nylon PA6 / Polyamide Engineering Plastic
Color Options	White, Grey, Natural (customizable)
Anchor Structure	Spiral helical body with conical drill tip and disc base
Dimensions & Compatibility
Matching Screw Size	M8 (self-tapping screw)
Self-Drilling Tip	Sharp conical pointed tip
Base Type	Wide disc flange for wall surface support
Thread Type	Deep spiral / helical cutting thread
Pre-drill Required	No for drywall/plasterboard; optional for concrete/brick
Recommended Drill Size	12mm or 11mm for hard substrates
Load Capacity
Load Capacity (Drywall)	Up to 40kg per anchor
Pull-Out Resistance	Varies by substrate density and anchor size
Shear Strength	Up to 65kg in 12.5mm plasterboard
Installation
Installation Method	Self-tapping - screw directly into wall substrate
Installation Tool	Screwdriver / Impact driver with Phillips bit
Installation Steps	Mark position → place tip → drive clockwise until flush → insert screw
Key Benefit	No pre-drilling required for gypsum/plasterboard surfaces
Anti-Rotation Feature	Integrated anti-spin ribs prevent rotation during installation
Application
Suitable Substrates	Drywall, Plasterboard, Gypsum Board, Hollow Brick, Cavity Wall, Aerated Concrete, Lightweight Concrete
Common Uses	Heavy Shelving and Brackets
Environmental & Compliance
Temperature Range	-40°C to +80°C
Environmental Suitability	Indoor and outdoor use (UV-stabilized PA6)
Corrosion Resistance	100% rust-proof plastic construction
Compliance	RoHS Compliant, REACH Compliant
Packaging
Standard Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag
Screws Included	Anchors sold separately, screw kits available
Certifications	ISO 9001:2015

Cavity Wall Self Drilling Anchor Screws 12mm X 50mm Nylon Expansion Anchor With Reinforced Spiral Thread Body

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your plastic spiral anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this plastic spiral anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
