Cabinet Mounting Self Tapping Wall Plugs 10mm X 60mm For Hollow Brick Heavy Duty Fixing

Name: Cabinet Mounting Self Tapping Wall Plugs 10mm X 60mm For Hollow Brick Heavy Duty Fixing
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Self Tapping Wall Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Self Tapping Wall Anchors
MOQ:	100 Pieces
Price:	USD 0.02-0.15 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Material:

Nylon PA6

Color:

White, Grey, OEM

Anchor Diameter:

10mm

Anchor Length:

60mm

Thread Style:

Spiral Helical

Tip Type:

Sharp Conical

Base Type:

Disc Flange

Matching Screw:

Installation:

Self-Tapping Screw-In

Substrate:

Hollow Brick

Corrosion Proof:

100% Rust-Free

Feature:

No Pre-Drilling

Finish:

Matte

Head Shape:

Flat Disc

Use Case:

Wall Cabinets

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

cabinet mounting self tapping wall plugs

self tapping wall plugs 10mm x 60mm

fixing self tapping rawl plugs

Product Description

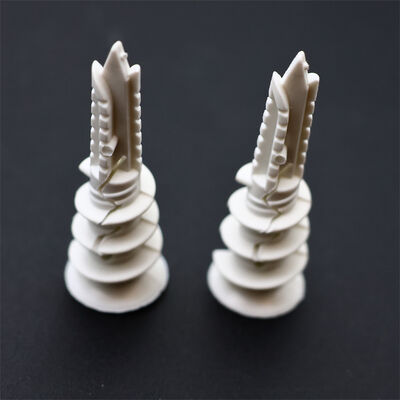

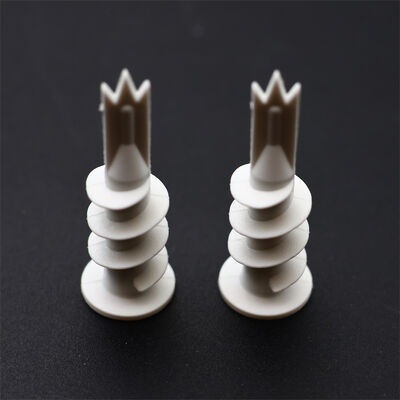

Nylon Spiral Self Tapping Wall Anchor 10mm x 60mm Plastic Drywall Plasterboard Fastener with Conical Drill Tip for Hollow Brick

Product Description

The 10mm x 60mm Nylon Spiral Self Tapping Wall Anchor is a premium plastic fastening solution engineered for hollow brick / solid masonry applications. Featuring a sharp conical drill tip and helical spiral body structure, this self-tapping anchor can be screwed directly into the wall surface without pre-drilling a pilot hole. The pointed tip easily penetrates soft wall materials, while the deep spiral threads cut precise grooves into the substrate, creating a secure mechanical lock. A flared disc-shaped base at the anchor bottom provides excellent support against the wall surface, preventing pull-through and ensuring a flush, stable mount. To install, simply align the sharp tip to your marked location and twist clockwise. The spiral body will cut its own path through the wall material. Continue until the broad disc base contacts the wall surface firmly, indicating proper seating depth.

Features

Pencil-Point Precision - A fine conical pencil-point tip allows precise positioning and clean entry into the wall surface, minimizing cosmetic damage around the installation point.

Multi-Start Thread - Dual-start thread geometry doubles the linear advancement per turn while maintaining strong substrate engagement for faster installation times.

Dynamic Lock Collar - The collar expands slightly as the screw is tightened, actively pressing against the wall surface to maintain tension as building materials settle.

Vibration-Dampening Body - The nylon material naturally absorbs minor vibrations from appliances and foot traffic, preventing anchor loosening over extended use periods.

Technical Parameters

General Information
Product Name	Nylon Spiral Self Tapping Wall Anchor ST Series
Model Number	ST-10060
Anchor Diameter	10mm
Anchor Length	60mm
Material	Nylon PA6 / Polyamide Engineering Plastic
Color Options	White, Grey, Natural (customizable)
Anchor Structure	Spiral helical body with conical drill tip and disc base
Dimensions & Compatibility
Matching Screw Size	M6 (self-tapping screw)
Self-Drilling Tip	Sharp conical pointed tip
Base Type	Wide disc flange for wall surface support
Thread Type	Deep spiral / helical cutting thread
Pre-drill Required	No for drywall/plasterboard; optional for concrete/brick
Recommended Drill Size	10mm or 9mm for hard substrates
Load Capacity
Load Capacity (Drywall)	Up to 35kg per anchor
Pull-Out Resistance	Varies by substrate density and anchor size
Shear Strength	Up to 60kg in 12.5mm plasterboard
Installation
Installation Method	Self-tapping - screw directly into wall substrate
Installation Tool	Screwdriver / Impact driver with Phillips bit
Installation Steps	Mark position → place tip → drive clockwise until flush → insert screw
Key Benefit	No pre-drilling required for gypsum/plasterboard surfaces
Anti-Rotation Feature	Integrated anti-spin ribs prevent rotation during installation
Application
Suitable Substrates	Drywall, Plasterboard, Gypsum Board, Hollow Brick, Cavity Wall, Aerated Concrete, Lightweight Concrete
Common Uses	Wall Cabinets and Wardrobes
Environmental & Compliance
Temperature Range	-40°C to +80°C
Environmental Suitability	Indoor and outdoor use (UV-stabilized PA6)
Corrosion Resistance	100% rust-proof plastic construction
Compliance	RoHS Compliant, REACH Compliant
Packaging
Standard Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag
Screws Included	Anchors sold separately, screw kits available
Certifications	ISO 9001:2015

Cabinet Mounting Self Tapping Wall Plugs 10mm X 60mm For Hollow Brick Heavy Duty Fixing

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your plastic spiral anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this plastic spiral anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
