Nylon Plasterboard Self Drilling Wall Anchors Spiral Wall Plug For Mirror Mounting Application

Name: Nylon Plasterboard Self Drilling Wall Anchors Spiral Wall Plug For Mirror Mounting Application
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Self Tapping Wall Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Self Tapping Wall Anchors
MOQ:	100 Pieces
Price:	USD 0.02-0.15 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	1000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Color:

White, Grey, OEM

Tip Type:

Sharp Conical

Finish:

Textured Grip

Matching Screw:

Corrosion Proof:

100% Rust-Free

Material:

Nylon PA6

Base Type:

Disc Flange

Feature:

No Pre-Drilling

Use Case:

Mirror Mounting

Thread Style:

Spiral Helical

Installation:

Self-Tapping Screw-In

Substrate:

Plasterboard

Head Shape:

Slim Disc

Anchor Diameter:

6mm

Anchor Length:

30mm

Water Resistance:

Moisture-Proof

Anti-Slip Surface:

Ribbed Body

Board Thickness:

9.5-12.5mm

Packaging Details:

Inner poly bag or small box, export corrugated carton with custom marking available

Highlight:

plasterboard self drilling wall anchors

nylon self drilling wall anchors

nylon self drilling plastic wall anchors

Product Description

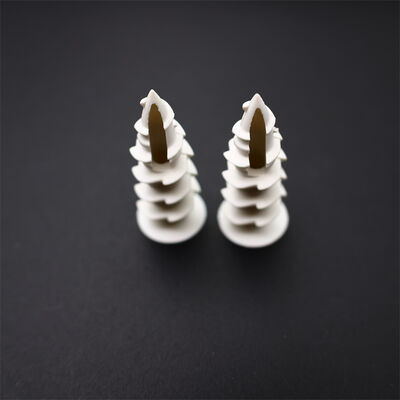

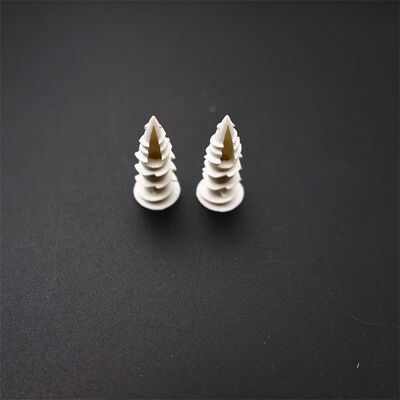

6mm x 30mm Nylon Spiral Self-Drilling Plasterboard Anchor Mirror Mounting Plastic Wall Plug with Moisture-Resistant PA6 Body

Product Description

The Nylon Spiral Self-Drilling Plasterboard Anchor is a moisture-resistant plastic fastening solution designed for mirror and picture frame mounting on plasterboard and gypsum board surfaces. The anchor features a corrosion-proof PA6 nylon body enhanced with moisture-resistant properties, making it ideal for bathroom and damp area applications where humidity exposure is common. Its sharp conical drill tip penetrates plasterboard effortlessly without pre-drilling, while the deep spiral thread body cuts precise helical grooves into the gypsum substrate for a secure mechanical lock. The low-profile slim disc base sits nearly flush against the wall surface, providing clean aesthetics for visible mounting points. Installation is quick and tool-friendly: simply position the pointed tip on your marked spot, apply gentle pressure, and drive clockwise with a standard screwdriver until the disc base is flush with the plasterboard surface and resistance is felt.

Features

Moisture-Proof Body Construction - Engineered with a specialized moisture-resistant PA6 nylon compound that prevents water absorption and swelling, maintaining structural integrity in bathroom and damp plasterboard environments where standard anchors may degrade over time.

Instant-Bite Conical Entry - The precision-ground conical tip achieves immediate surface penetration on plasterboard and gypsum board without skating or wandering, requiring minimal downward pressure to start clean self-tapping action.

Slim Flush-Mount Disc Base - The compact slim disc profile creates a discreet mounting appearance with sufficient bearing surface to prevent pull-through on standard 9.5mm and 12.5mm plasterboard, ideal for visible installations around mirrors and decorative hardware.

Anti-Rotation Ribbed Body - Integrated longitudinal anti-spin ribs along the anchor shaft prevent body rotation during screw insertion into plasterboard, ensuring consistent thread engagement and faster, hassle-free installation.

Technical Parameters

General Information
Product Name	Nylon Spiral Self Tapping Wall Anchor ST Series
Model Number	ST-6030
Anchor Diameter	6mm
Anchor Length	30mm
Material	Nylon PA6 / Polyamide Engineering Plastic
Color Options	White, Grey, Natural (customizable)
Anchor Structure	Spiral helical body with conical drill tip and disc base
Dimensions & Compatibility
Matching Screw Size	M4 (self-tapping screw)
Self-Drilling Tip	Sharp conical pointed tip
Base Type	Wide disc flange for wall surface support
Thread Type	Deep spiral / helical cutting thread
Pre-drill Required	No for drywall/plasterboard; optional for concrete/brick
Recommended Drill Size	6mm or 5mm for hard substrates
Load Capacity
Load Capacity (Plasterboard)	Up to 18kg per anchor
Pull-Out Resistance	Varies by plasterboard thickness and anchor size
Shear Strength	Up to 32kg in 12.5mm plasterboard
Installation
Installation Method	Self-tapping — screw directly into plasterboard surface
Installation Tool	Screwdriver / Impact driver with Phillips bit
Installation Steps	Mark position → place tip on plasterboard → drive clockwise until flush → insert screw
Key Benefit	No pre-drilling required for plasterboard and gypsum board surfaces
Anti-Rotation Feature	Integrated anti-spin ribs prevent rotation during installation
Application
Suitable Substrates	Plasterboard, Drywall, Gypsum Board (also compatible with Hollow Brick, Cavity Wall, Aerated Concrete, Lightweight Concrete)
Common Uses	Mirror and Picture Frame Mounting on Plasterboard
Environmental & Compliance
Temperature Range	-40°C to +80°C
Environmental Suitability	Indoor and outdoor use (UV-stabilized PA6)
Corrosion Resistance	100% rust-proof plastic construction
Compliance	RoHS Compliant, REACH Compliant
Packaging
Standard Packaging	100 / 200 / 500 / 1000 pieces per box or poly bag
Screws Included	Anchors sold separately, screw kits available
Certifications	ISO 9001:2015

Nylon Plasterboard Self Drilling Wall Anchors Spiral Wall Plug For Mirror Mounting Application

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your plastic spiral anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this plastic spiral anchor be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
