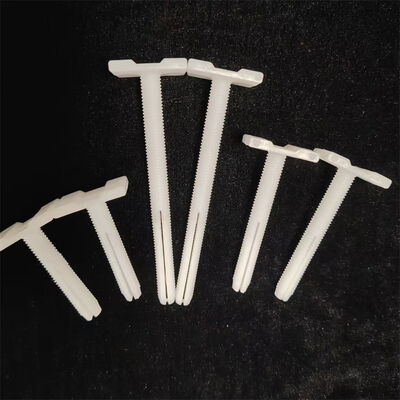

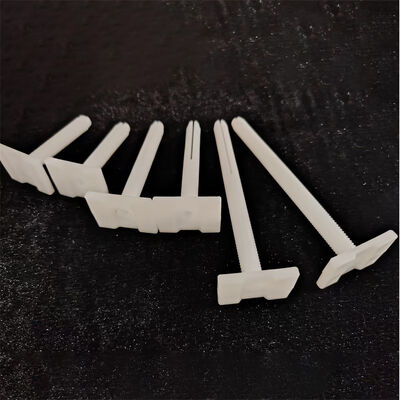

Fire Rated PA66 Plastic Furring Channel Leveling Anchor Flame Retardant For Light Steel Keel

Name: Fire Rated PA66 Plastic Furring Channel Leveling Anchor Flame Retardant For Light Steel Keel
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Furring Channel Leveling Anchor
Price: 0.10 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Furring Channel Leveling Anchor
MOQ:	1000 Pieces
Price:	USD 0.10 - 0.50 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	400000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Material:

PA66 Flame Retardant Nylon Body + Zinc-Plated Steel Screw

Available Sizes:

M6, M8, M10

Fire Rating:

UL 94 V-0 Flame Retardant Classification

Anchor Type:

Fire Rated Furring Channel Leveling Anchor

Head Design:

Square Head Phillips Drive

Temperature Rating:

-40°C To +150°C (continuous Service)

Installation Method:

Drill, Clean Dust, Vertical Hammer-in, Diagonal Tighten

Application:

Fire-Rated Ceilings, Smoke Curtain Anchoring, Fire Protection Furring Channels

Packaging Details:

Fire-rated labeled inner box, export-grade corrugated carton

Highlight:

Fire Rated PA66 Anchor

Flame Retardant Leveling Anchor Bolt

Fire Protection Ceiling Fastener

Product Description

Fire Rated PA66 Plastic Furring Channel Leveling Anchor Flame Retardant Nylon Expansion Bolt for Ceiling Fire Protection

Product Description

The Fire Rated PA66 Plastic Furring Channel Leveling Anchor is engineered for ceiling fire protection systems, smoke curtain anchoring, and fire-rated furring channel installations in commercial and industrial buildings where building codes require flame-retardant fastening components. Molded from premium PA66 nylon compound with UL 94 V-0 flame retardant classification, this anchor maintains structural integrity and expansion performance during fire exposure where standard nylon anchors would soften, melt, or lose holding capacity. The square head design with deep Phillips drive recess ensures reliable diagonal tightening torque transfer in overhead ceiling installations. Installation follows the standard four-step furring channel anchor procedure: drill a matching hole with a hammer drill, thoroughly clean borehole dust for maximum expansion contact, vertically hammer the anchor flush into the fire-rated substrate, and diagonally tighten the screw to engage the split-body expansion mechanism for a secure fire-resistant anchor point.

Features

UL 94 V-0 Flame Retardant PA66: Premium fire-rated nylon compound maintains structural integrity and expansion hold during fire exposure, meeting building code requirements for fire protection ceiling fastening systems.

Extended Temperature Range -40°C to +150°C: PA66 material provides reliable performance across extreme temperature conditions far exceeding standard PA6 nylon anchors rated for 80°C maximum.

Fire-Rated Substrate Compatibility: Designed for use with fire-rated gypsum board, fire protection ceiling panels, and fire-resistant partition wall assemblies in commercial and industrial buildings.

Standard Square Head Installation: Same drill hole, clean dust, vertical hammer-in, diagonal tighten procedure as standard anchors with no special fire-safety training required for installation crews.

Technical Parameters

General Information
Product Name	Fire Rated PA66 Plastic Furring Channel Leveling Anchor
Material	PA66 Flame Retardant Nylon + Zinc-Plated Steel Screw
Fire Rating	UL 94 V-0 flame retardant
Head Design	Square head Phillips drive
Installation
Installation Method	Drill matching hole → clean dust → vertical hammer-in → diagonal tighten
Installation Tool	Electric hammer drill + Impact driver
Key Feature	UL 94 V-0 flame retardant PA66 maintains hold during fire exposure for protection-rated ceiling systems
Performance & Load Capacity
Tensile Load (M8 in C20/25)	100 kg at 23°C
Tensile Load (M8 at 100°C)	70 kg (reduced but stable)
Temperature Range	-40°C to +150°C continuous
Flame Rating	UL 94 V-0
Environmental Compliance	RoHS Compliant, REACH Compliant
Standards Compliance	ISO 9001:2015, UL 94 V-0
Application
Applicable Substrates	Fire-rated concrete, fire protection gypsum board, fire-resistant partition panels
Common Applications	Fire-rated suspended ceilings, smoke curtain anchoring, fire protection furring channels, fire door frame anchoring
Usage Restriction	Not for continuous exposure to direct flame; verify local fire code compliance
Packaging & Compliance
Standard Packaging	Anchor + matching screw, fire-rated labeled sets
Packaging Quantity	100 sets per box, export carton
Certifications	ISO 9001:2015, UL 94 V-0

Fire Rated PA66 Plastic Furring Channel Leveling Anchor Flame Retardant For Light Steel Keel

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic insulation anchors be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
