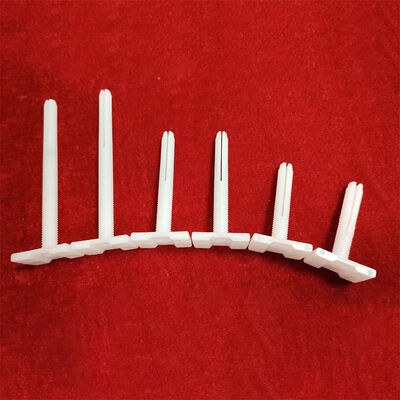

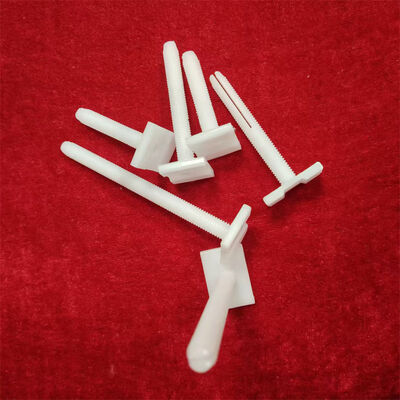

Complete Size Range Plastic Furring Channel Leveling Anchor Nylon Expansion Bolt for Light steel keel

Name: Complete Size Range Plastic Furring Channel Leveling Anchor Nylon Expansion Bolt for Light steel keel
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Furring Channel Leveling Anchor
Price: 0.08 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Furring Channel Leveling Anchor
MOQ:	500 Sets
Price:	USD 0.08 - 0.50 / Set
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	500000 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Material:

Nylon PA6 Body + Zinc-Plated Steel Screw

Included Sizes:

M5, M6, M8, M10, M12

Anchor Type:

Furring Channel Leveling Expansion Anchor Kit

Head Design:

Square Head Phillips Drive

Drill Bit Size:

6 Mm - 14 Mm (size Dependent)

Installation Method:

Drill Hole, Clean Dust, Vertical Hammer-in, Diagonal Tighten

Load Capacity:

50-200 Kg Per Anchor (size And Substrate Dependent)

Application:

Ceiling Furring Channels, Suspension Systems, Drywall Grid Framing

Kit Quantity:

100 Sets Per Kit (20 Per Size)

Packaging Details:

Size-labeled compartment box, export-grade corrugated carton

Highlight:

Furring Channel Anchor Kit

Complete Size Leveling Bolt Set

Nylon Ceiling Expansion Fastener

Product Description

Plastic Furring Channel Leveling Anchor Kit Complete Size Range Nylon Expansion Bolt Set for Ceiling Suspension System

Product Description

The Plastic Furring Channel Leveling Anchor Kit is a complete size range nylon expansion bolt set engineered for ceiling suspension systems and drywall furring channel installations. This comprehensive kit includes M5 through M12 sizes, covering light-duty partition framing to heavy-duty ceiling grid anchoring in a single organized package. Each anchor features a precision-molded nylon PA6 body with a square head design that provides excellent torque transfer during diagonal tightening and resists cam-out under high installation loads. The expansion mechanism works through a split-body design that expands outward as the screw is driven in, creating a tight friction lock within the substrate. Installation follows a four-step process: drill a hole matching the anchor diameter with a hammer drill, thoroughly clean dust from the borehole, vertically hammer the anchor flush into the substrate, and diagonally tighten the screw to activate expansion. This kit is ideal for commercial ceiling contractors, drywall framing crews, and MEP installers who require multiple anchor sizes across different job .

Features

Complete Size Range M5-M12: Covers all standard furring channel and ceiling suspension anchor sizes in one kit, eliminating the need to purchase multiple separate products for different load requirements.

Square Head Anti-Camout Design: Precision square drive head geometry provides positive tool engagement and resists cam-out during diagonal tightening, ensuring consistent full-expansion installation on every anchor.

Four-Step Fast Installation: Follow the proven drill hole, clean dust, vertical hammer-in, and diagonal tighten sequence for rapid deployment with standard electric drill and impact driver tooling.

PA6 Nylon Body Construction: High-quality engineering nylon PA6 compound delivers excellent split-expansion performance, impact resistance during hammer-in, and long-term holding strength in concrete, brick, and aerated block substrates.

Technical Parameters

General Information
Product Name	Plastic Furring Channel Leveling Anchor Complete Kit
Material	Nylon PA6 (anchor body) + Zinc-Plated Steel Screw
Color Options	Natural, White, Grey (customizable)
Head Design	Square head Phillips drive for anti-camout torque transfer
Dimensions & Compatibility
Included Sizes	M5 x 40mm, M6 x 50mm, M8 x 60mm, M10 x 70mm, M12 x 80mm
Anchor Diameter	8 mm (M5), 10 mm (M6), 12 mm (M8), 14 mm (M10), 16 mm (M12)
Drill Bit Size	8 mm - 16 mm (match to anchor diameter)
Embedment Depth	40 mm - 80 mm (size dependent)
Installation
Installation Method	Drill matching hole → clean dust → vertical hammer-in → diagonal tighten to expand
Installation Tool	Electric hammer drill + Impact driver or torque wrench
Key Feature	Complete M5-M12 kit for all furring channel and ceiling suspension anchoring needs
Performance & Load Capacity
Typical Tensile Load (M6)	80 kg in C20/25 concrete
Typical Tensile Load (M10)	150 kg in C20/25 concrete
Typical Tensile Load (M12)	200 kg in C20/25 concrete
Temperature Range	-20°C to +80°C
Environmental Compliance	RoHS Compliant, REACH Compliant
Standards Compliance	ISO 9001:2015
Application
Applicable Substrates	Concrete, solid brick, aerated concrete block, natural stone
Common Applications	Ceiling furring channels, drywall grid suspension, MEP cable tray support, HVAC duct brackets
Usage Restriction	Not for hollow wall or plasterboard; verify substrate strength for intended load
Packaging & Compliance
Standard Packaging	Compartment kit box: 20x each size (M5-M12), 100 sets total
Packaging Quantity	10 kits per export carton
Certifications	ISO 9001:2015 (manufacturing)

Complete Size Range Plastic Furring Channel Leveling Anchor Nylon Expansion Bolt for Light steel keel

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic insulation anchors be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
