Extra Long Nylon Hammer Expansion Anchor Plastic For Thick Insulation Board Plastic Sleeve Anchor

Name: Extra Long Nylon Hammer Expansion Anchor Plastic For Thick Insulation Board Plastic Sleeve Anchor
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Expansion Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Expansion Anchors
MOQ:	1000 Pieces
Price:	USD 0.02 - 0.08 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	3000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Nylon Sleeve Hammer-Set Plastic Expansion Anchor Extra Long

Material:

Nylon PA6 Sleeve + Zinc-Plated Steel Nail

Anchor Type:

Extra-Long Hammer-Set Sleeve Expansion Anchor With Round Head

Suitable Substrate:

Concrete, Brick, Masonry Behind Thick Insulation Layer

Diameter:

8 Mm, 10 Mm, 12 Mm

Length:

100 Mm - 180 Mm

Installation Method:

Pre-Drill Through Insulation Into Substrate, Insert Anchor, Hammer Nail

Application:

External Wall Insulation Fixing, Thick Board Anchoring, Sandwich Panel Through-Fixing

Packaging Details:

1000 pcs/bag, export carton

Highlight:

nylon hammer expansion anchor plastic

insulation board plastic sleeve anchor

nylon plastic sleeve anchor

Product Description

Nylon Sleeve Hammer Set Plastic Expansion Anchor Round Head Nail Fixing Plugs Extra Long for Thick Insulation Board Wall

Product Description

The Extra Long Nylon Sleeve Hammer-Set Plastic Expansion Anchor is designed for fixing thick insulation boards, multi-layer wall panels, and sandwich construction materials where anchors must penetrate through the outer layer and achieve secure embedment into the structural substrate behind. With extended body lengths from 100 mm to 180 mm, this anchor provides the reach needed for modern high-performance insulation systems where insulation thicknesses of 80 mm, 100 mm, or even 150 mm require long anchors that standard short body products cannot handle.

The anchor features a full-length nylon PA6 sleeve with a pre-inserted zinc-plated steel nail and round countersunk head. The extended sleeve length ensures that the expansion zone is positioned correctly within the structural masonry or concrete substrate behind the insulation layer, while the upper portion of the sleeve simply acts as a spacer through the insulation board. This design is essential for external wall insulation (EWI), external thermal insulation composite systems (ETICS), and any application where the anchor must bridge a thick non-structural layer to reach the load-bearing substrate.

Features

Extended body lengths from 100 mm to 180 mm provide the reach required for modern thick insulation board systems. Full-length nylon PA6 sleeve positions the expansion zone correctly within the structural substrate behind the insulation. Suitable for EWI (External Wall Insulation) and ETICS (External Thermal Insulation Composite Systems).

Available in 8 mm, 10 mm, and 12 mm diameters with lengths up to 180 mm. Covers insulation thicknesses from 60 mm up to approximately 150 mm with minimum 30 mm embedment into substrate. Standard diameters ensure compatibility with common insulation anchor drilling equipment.

High-quality nylon PA6 material with zinc-plated steel nail ensures corrosion-free long-term performance. Suitable for external wall exposure behind render finishes and cladding. Resistant to moisture, temperature cycling, and UV exposure in protected positions.

Standard hammer-in installation with carbide-tipped long masonry drill bit. Pre-drill through insulation into substrate, insert anchor to full depth, hammer nail to activate substrate expansion. The upper sleeve portion acts as a non-expanding spacer through the insulation layer.

Ideal for external wall insulation board fixing, sandwich panel through-fixing, thick acoustic board anchoring, and multi-layer construction applications. A specialized long-reach anchoring solution for modern high-performance building envelope construction.

Technical Parameters

General Information
Product Name	Extra Long Nylon Sleeve Hammer-Set Plastic Expansion Anchor
Material	Nylon PA6 Sleeve + Zinc-Plated Steel Nail
Anchor Type	Extra-Long Hammer-Set Sleeve Expansion Anchor with Round Head
Head Type	Round Countersunk Head
Substrate	Concrete, Brick, Masonry Behind Thick Insulation
Dimensions
Anchor Diameter (∅)	8 mm, 10 mm, 12 mm
Anchor Length	100 mm – 180 mm
Insulation Thickness Range	60 mm – 150 mm (with substrate embedment)
Pre-drilled Hole Diameter	1 mm larger than anchor OD (use long carbide masonry bit)
Minimum Substrate Embedment	≥ 30 mm into structural substrate
Installation
Installation Method	Hammer-in – pre-drill through insulation into substrate, insert anchor, hammer nail to expand in substrate
Working Principle	Upper sleeve acts as spacer through insulation, lower sleeve expands in substrate for grip
Temperature Range	-40°C to +80°C
Matching & Application
Recommended Equipment	Long carbide-tipped SDS masonry drill bit for through-insulation drilling
Applications	EWI board fixing, ETICS anchoring, sandwich panel through-fixing, thick acoustic board anchoring
Usage Scope	External wall insulation and thick board anchoring (exterior applications)

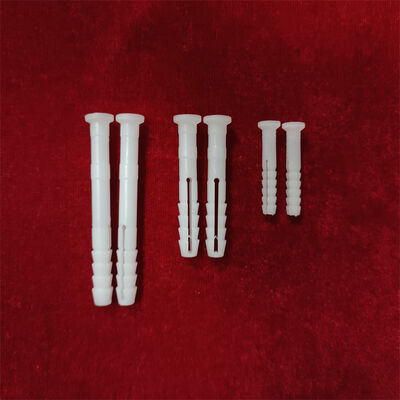

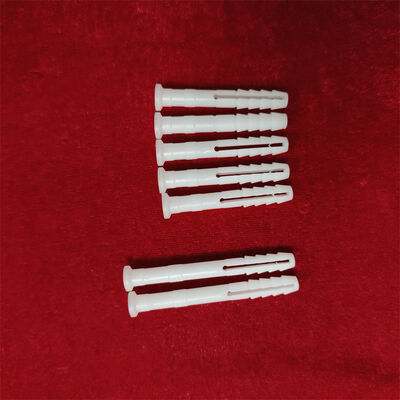

Extra Long Nylon Hammer Expansion Anchor Plastic For Thick Insulation Board Plastic Sleeve Anchor

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic insulation anchors be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
