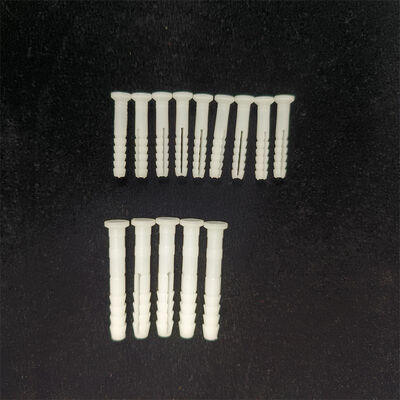

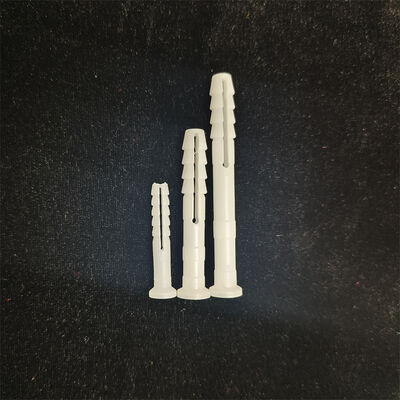

Frame Fixing Nylon Hammer Set Anchors Sleeve Plastic Expansion Plugs For Door & Window Installation

Name: Frame Fixing Nylon Hammer Set Anchors Sleeve Plastic Expansion Plugs For Door & Window Installation
Brand: Hebei Cangrui Plastic Products Co., Ltd
SKU: Plastic Expansion Anchors
Price: 0.02 USD
Availability: InStock

Brand Name:	CangRui
Model Number:	Plastic Expansion Anchors
MOQ:	1000 Pieces
Price:	USD 0.02 - 0.08 / Piece
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	3000000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Nylon Sleeve Hammer-Set Plastic Expansion Anchor For Door And Window Frame Installation

Material:

Nylon PA6 Sleeve + Zinc-Plated Steel Nail

Anchor Type:

Hammer-Set Frame Sleeve Expansion Anchor With Round Head

Head Type:

Round Countersunk Head For Flush Frame Surface Fit

Suitable Substrate:

Concrete, Solid Brick, Masonry Behind Door And Window Frames

Diameter:

8 Mm, 10 Mm

Length:

40 Mm - 90 Mm

Frame Compatibility:

PVC, Aluminum, Timber, Composite Frame Profiles

Application:

Window Frame Anchorage, Door Frame Fixing, Frame To Brick Wall Connection

Packaging Details:

1000 pcs/bag, export carton

Highlight:

nylon hammer set anchors

nylon plastic expansion plugs

door hammer set anchors

Product Description

Nylon Sleeve Hammer-Set Plastic Expansion Anchor Round Head Nail Fixing Plugs for Door Window Frame Installation to Masonry

Product Description

The Nylon Sleeve Hammer-Set Plastic Expansion Anchor for Door and Window Frame Installation is specifically designed for securing PVC, aluminum, timber, and composite door and window frames to concrete, brick, and masonry wall openings. The anchor features an integrated nylon sleeve body with a pre-inserted zinc-plated steel nail and round countersunk head that sits flush against the frame profile after installation. The nylon sleeve provides a non-scratching, non-conductive bearing surface against the frame material, protecting the frame from metal-to-metal contact and galvanic corrosion.

This anchor is optimized for frame installation workflows where multiple anchor points must be installed quickly and consistently around the frame perimeter. The hammer-in installation method allows frame installers to pre-drill through the frame and into the wall substrate, insert the anchor flush with the frame surface, and hammer the nail home to secure the frame. The round countersunk head provides a clean and neat appearance on visible frame surfaces. Available in diameters of 8 mm and 10 mm with lengths from 40 mm to 90 mm, it covers standard door and window frame anchoring requirements.

Features

1. Specifically designed for door and window frame installation in concrete, brick, and masonry wall openings. The nylon sleeve provides a soft, non-scratching bearing surface that protects PVC, aluminum, timber, and composite frame profiles from damage during anchoring.

2. Round countersunk head sits flush against the frame profile surface for a clean and professional finish. No protruding nail heads or sharp edges that could interfere with frame weather seals or window operation.

3. Nylon PA6 sleeve material provides electrical and thermal insulation between the steel nail and the frame profile. Prevents galvanic corrosion in aluminum frames and eliminates cold bridging through the anchor point in thermal break windows.

4. Quick hammer-in installation allows frame installers to anchor multiple points efficiently around the frame perimeter. Pre-drill through frame into wall, insert anchor, hammer nail flush – no special tools or curing time required. Consistent installation depth and clamping force at every anchor point.

5. Ideal for PVC window frame anchorage, aluminum door frame fixing, timber frame to brick wall connection, composite frame installation, and replacement window and door projects. A reliable and professional anchoring solution for door and window installation contractors.

Technical Parameters

General Information
Product Name	Nylon Sleeve Hammer-Set Plastic Expansion Anchor for Door and Window Frame Installation
Material	Nylon PA6 Sleeve + Zinc-Plated Steel Nail
Anchor Type	Hammer-Set Frame Sleeve Expansion Anchor with Round Head
Head Type	Round Countersunk Head for Flush Frame Surface Fit
Substrate	Concrete, Solid Brick, Masonry Behind Door and Window Frames
Dimensions
Anchor Diameter (∅)	8 mm, 10 mm (standard sizes)
Anchor Length	40 mm – 90 mm
Frame Material Compatibility	PVC, Aluminum, Timber, Composite Frame Profiles
Pre-drilled Hole Diameter	0.5–1 mm larger than anchor OD
Minimum Embedment Depth	≥ 30 mm into structural wall substrate
Installation
Installation Method	Hammer-in – pre-drill through frame hole into wall, insert anchor flush with frame surface, hammer nail to secure
Working Principle	Nail drives through sleeve, expanding ribs grip masonry borehole wall, round head secures frame profile flush
Temperature Range	-40°C to +80°C
Matching & Application
Recommended Screws	Hardened self-tapping screws (countersunk head)
Applications	PVC window frame anchorage, aluminum door frame fixing, timber frame to brick wall, composite frame installation, replacement windows and doors
Usage Scope	Door and window frame installation (indoor and exterior applications)

Frame Fixing Nylon Hammer Set Anchors Sleeve Plastic Expansion Plugs For Door & Window Installation

FAQ

Do you have full standard sizes in stock for plastic expansion anchors?

We have complete conventional sizes in stock, full specifications ready for immediate shipment, support mixed size bulk wholesale.

What is the material and load-bearing capacity of your Plastic insulation anchors?

Made of high-quality new engineering plastic, high toughness anti-crack; stable holding force for drywall, hollow wall and plasterboard, suitable for light and medium load installation.

What types of walls and base materials can this Plastic insulation anchors be used for?

It is widely applicable to gypsum board, plasterboard, hollow brick, aerated concrete, light concrete and cavity wall, no need pre-drilling.

What is your MOQ and wholesale price discount policy?

Low MOQ supports small batch trial order; the more quantity you order, the more favorable wholesale price, exclusive discount for long-term distributors.

What is your production lead time and mass supply capacity?

Spot goods can be shipped within 3-7 days; large batch orders 7-15 days, stable daily output to support continuous large-volume supply for distributors.

Can you customize size, color, packaging and OEM private label?

We support custom size, color, box packaging, carton marking and OEM/ODM private label service for your local market sales.

Do you support mixed batch with other fastener products?

Yes, you can mix order with our other fasteners like screws, bolts and wall plugs to fill one container conveniently.

Can I get free samples for quality checking?

Free samples are available, customers only need to bear the freight; sample size and quantity can be arranged according to your requirement.
